74
CORN CRACKER INSTALLATION INSTRUCTIONS

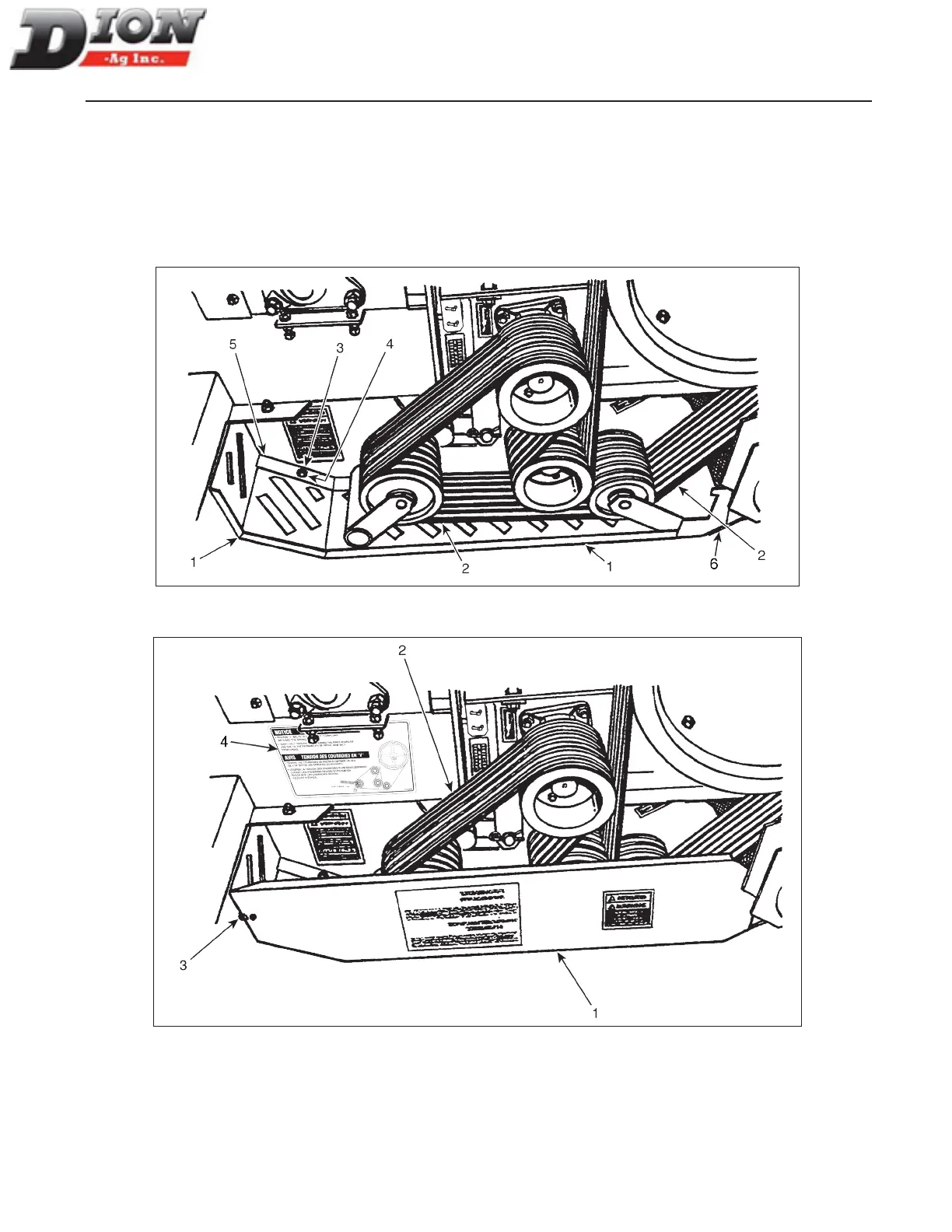

STEP 20 - FIGURE 95
Bolt the lower guard (item 1) of the belts (item 2) with
ve 3/8” X 3/4” lg hex. bolts (item 3), two 3/8” X 1” lg
hex. bolts (item 6) and seven ange nuts (item 4). This
guard must be bolted underneath the Corn Cracker side
ange (item 5). Securely tighten all ange nuts.
STEP 21 - FIGURE 96
Install the side belt guard (item 1) by sliding it in place
and locking it with the quick-clamp (item 3). Afx the belt
tension decal (item 4) as shown.
Figure 95
Figure 96
Manual No. F4117E987E V1.1
