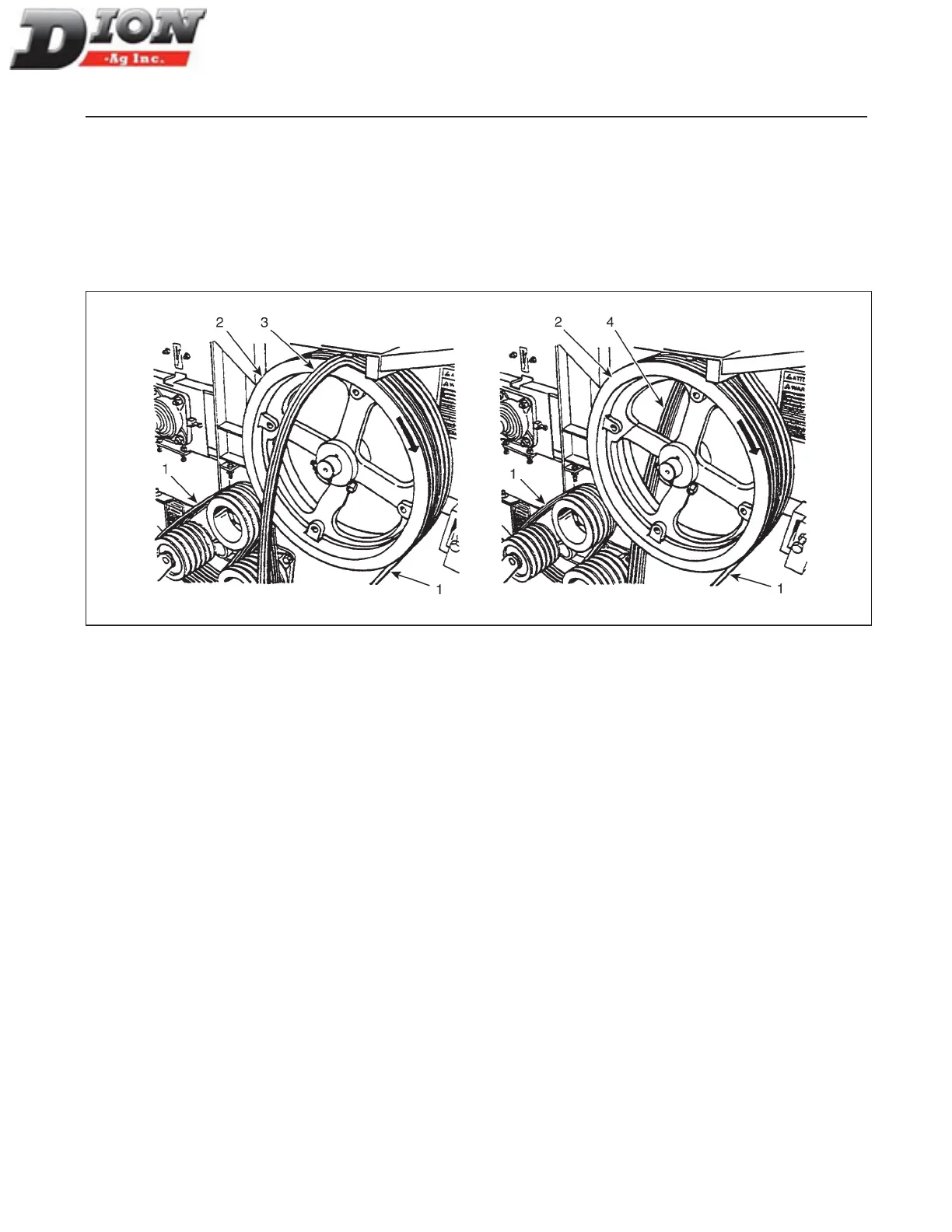

STEP 4 - FIGURE 100
Remove the six belts (item 1) as described next. Re-
move the rst three belts together, passing them in front
(item 3) while turning the driving sheave (item 2) follow-
ing the direction of the arrow. Remove the three remain-
ing belts together in the same way but this time from the
back of the sheave (item 4).
PARTIAL DISMANTLING OF THE CORN CRACKER FOR HAY CROP
Figure 100
Manual No. F4117E987E V1.1
