135ECLYPSE APEX

24 VAC

AC Power Source (Mains)

Fuse: 4A

Max. Fast

Acting

Equivalent

24 VDC

Fuse: 4A

Max. Fast

Acting

Mandatory Functional

Earth Ground

DC Power Source

Mandatory Functional

Earth Ground

Always connect 24V COM

with Ground

Always connect 24V COM

with Ground

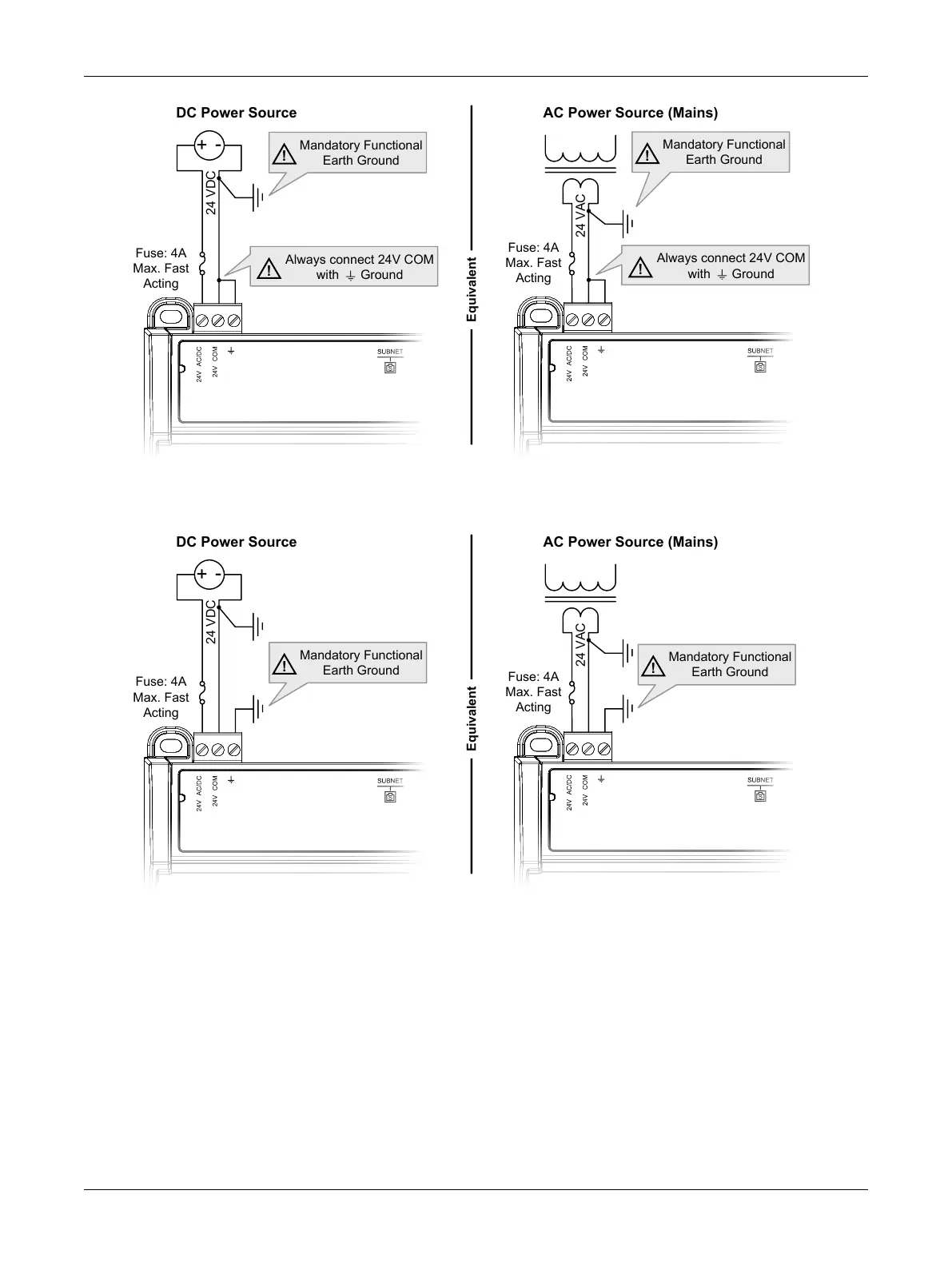

Figure109: APEX Power wiring 2-wire

24 VAC

AC Power Source (Mains)

Fuse: 4A

Max. Fast

Acting

Equivalent

24 VDC

Fuse: 4A

Max. Fast

Acting

DC Power Source

Mandatory Functional

Earth Ground

Mandatory Functional

Earth Ground

Figure110: APEX Power wiring 3-wire
