139ECLYPSE APEX
ECx-Display Typical Room Devices
Cat 5e Cable Sub-Network Bus
ECx-Subnet
Adapter
600 ft [180 m] Maximum Length
ECLYPSE APEX

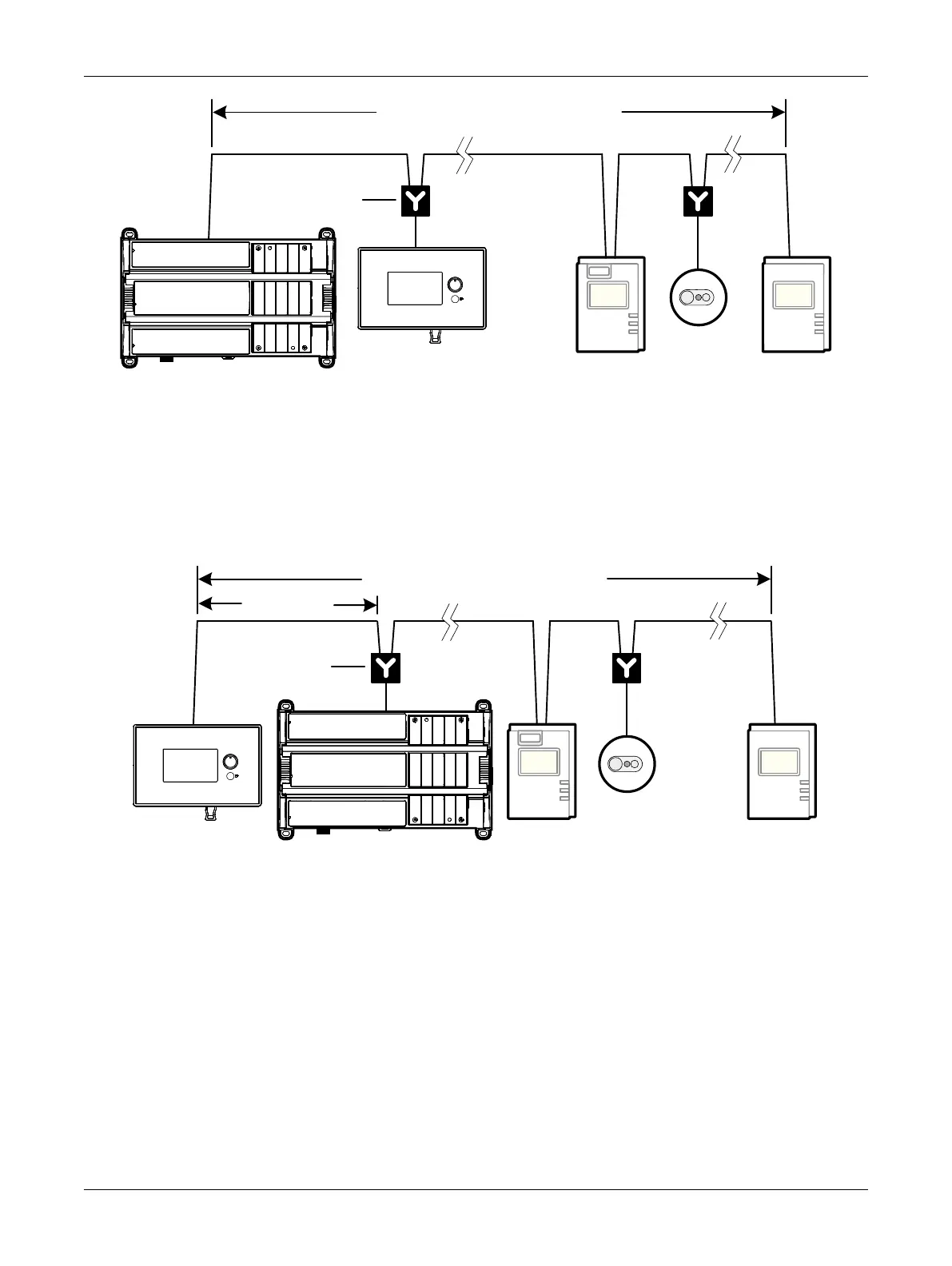

Figure114: Subnetwork Module Connection Example
The maximum length of the Cat 5e cable subnetwork data bus used to connect an ECLYPSE con-
troller to an ECx-display as a stub is 6.5 ft. (2m). The maximum total length of the Cat 5e cable sub-
network data bus remains 600 ft. (180 m). When other Cat 5e subnetwork devices are used, use an
ECx-Subnet Adapter to connect to those devices.
Cat 5e Cable Subnetwork Bus
ECx-Subnet
Adapter
600 ft [180 m] Maximum Length
6.5 ft [2m]
Maximum
ECx-Display
Typical Room Devices
ECLYPSE APEX
Figure115: Subnetwork Module Connection with an ECx-Display Connected as a Stub Example
For BLE enabled Distech Controls devices:
Bluetooth low energy enabled devices such as the Allure UNITOUCH and the EC-Multi-Sensor-BLE
are only compatible with Distech Controls ECLYPSE Series Controllers.
A controller can support a maximum of two (2) Allure UNITOUCH sensors, and a maximum of four (4)
EC-Multi-Sensor-BLE devices.
The maximum total length of the Cat 5e cable subnetwork data bus remains 328 ft. (100 m). When
other Cat 5e subnetwork devices are used, an ECx-Subnet Adapter may be required to connect to
those devices.
See Subnetwork Module Compatibility and Supported Quantity Charts for the quantity of room devices
supported by each controller model.
Subnetwork Installation Guidelines
