149ECLYPSE APEX
Allure EC-Smart-Comfort / EC-Smart-Air

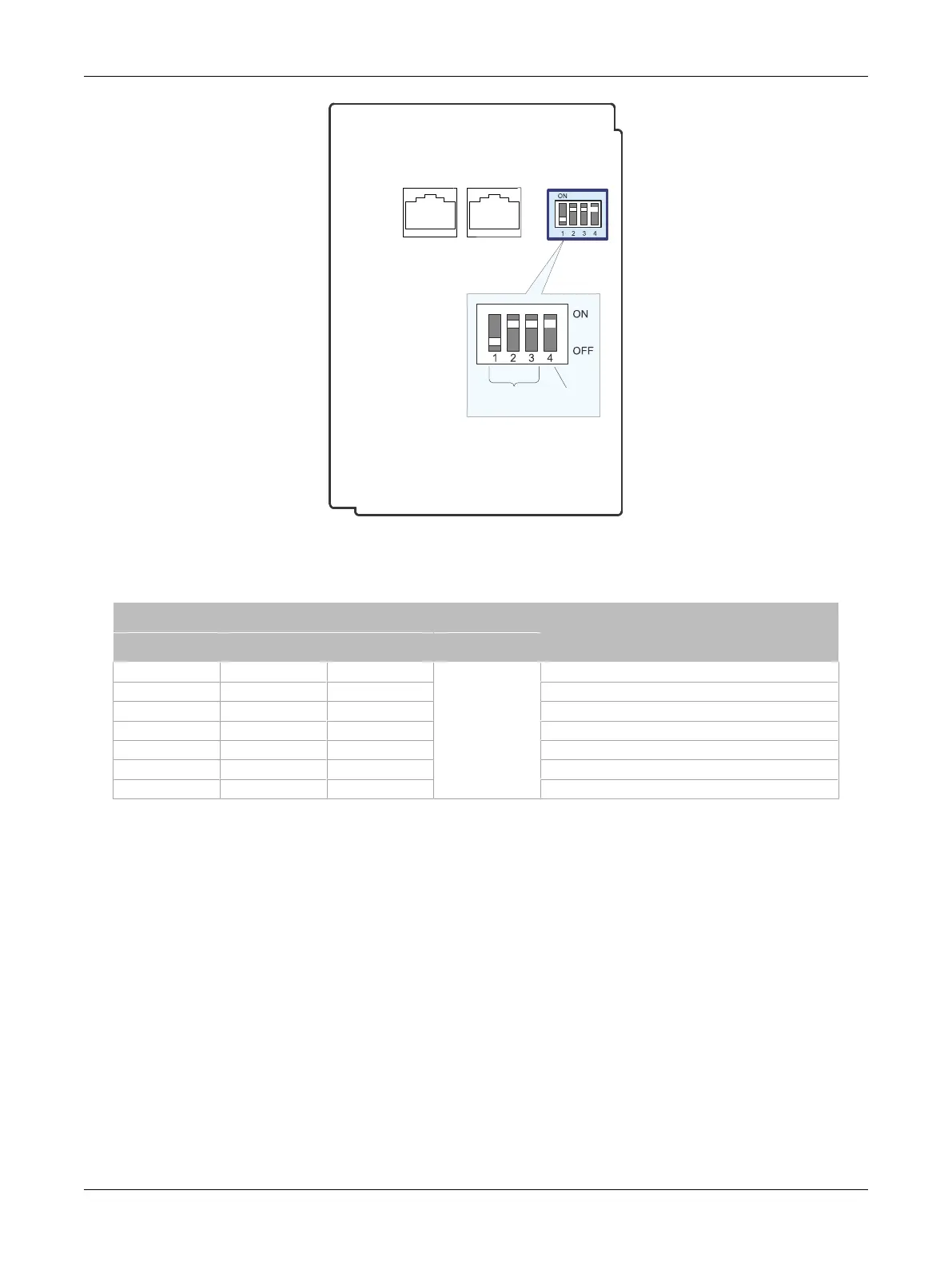

Front Cover, Interior View
Set the Subnet
ID Address
EOL
Termination
RJ-45 Subnetwork Pass-
Through Connectors
Figure122: Setting the Allure EC-Smart-Air or EC-Smart-Comfort communicating sensor’s Subnet ID Address
The above figure shows an example of how to set the Allure EC-Smart-Air or EC-Smart-Comfort com-
municating sensor’s Subnet ID address DIP switch to 6 and how to set the EOL termination to ON.
Switch Position Allure EC-Smart-Air or EC-Smart-Comfort
communicating sensor’s Subnet ID Address
1 2 3 4
OFF OFF OFF
OFF: EOL
disabled
ON: EOL
enabled
1
ON OFF OFF 1
OFF ON OFF 2
ON ON OFF 3
OFF OFF ON 4
ON OFF ON 5
OFF ON ON 6
Table24: Allure EC-Smart-Air or EC-Smart-Comfort communicating sensor’s Subnet ID Address DIP Switch Set-
tings
Subnetwork Installation Guidelines
