29ECLYPSE APEX
Typical Metal Relay Panel/Utility Box Installation

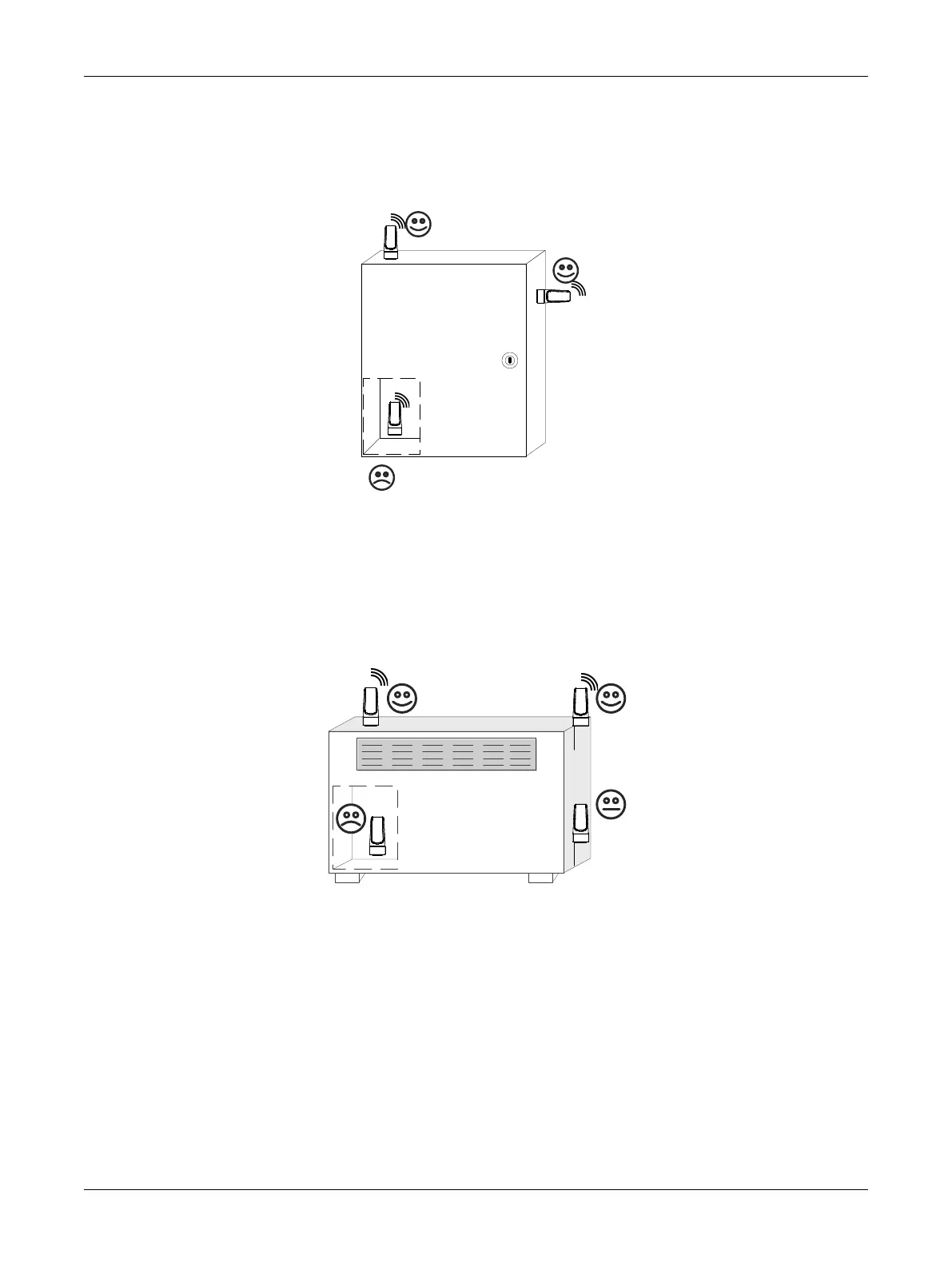

The following image shows where to install an Wi-Fi Adapter on a metal relay panel or utility box with
a controller inside the panel/box. To maximize wireless range, the Wi-Fi Adapter must be installed on
the top or side of the panel.
Wireless Adapter
NOT to be installed
inside the panel
Wireless Adapter
installed on top or
side of panel
Figure13: Wi-Fi Adapter Position with Metal Relay Panel/Utility Box
Typical Fan Coil Unit Installation
The following example shows where to install an Wi-Fi Adapter on a fan coil unit with a controller in-
side the unit. The Wi-Fi Adapter must be installed on the top or side of the unit with the antenna
straightened out and away from the metal. The Wi-Fi Adapter and antenna should never be installed
inside the metal enclosure.
Antenna & receiver installed
on top or side panel
Antenna & receiver
NOT to be installed
inside the metal
enclosure
Antenna & receiver
installed directly on metal
panel should be avoided
Figure14: Wi-Fi Adapter Position on Fan Coil Unit
Connecting IP Devices to an IP Network
