ECLYPSE APEX
8.

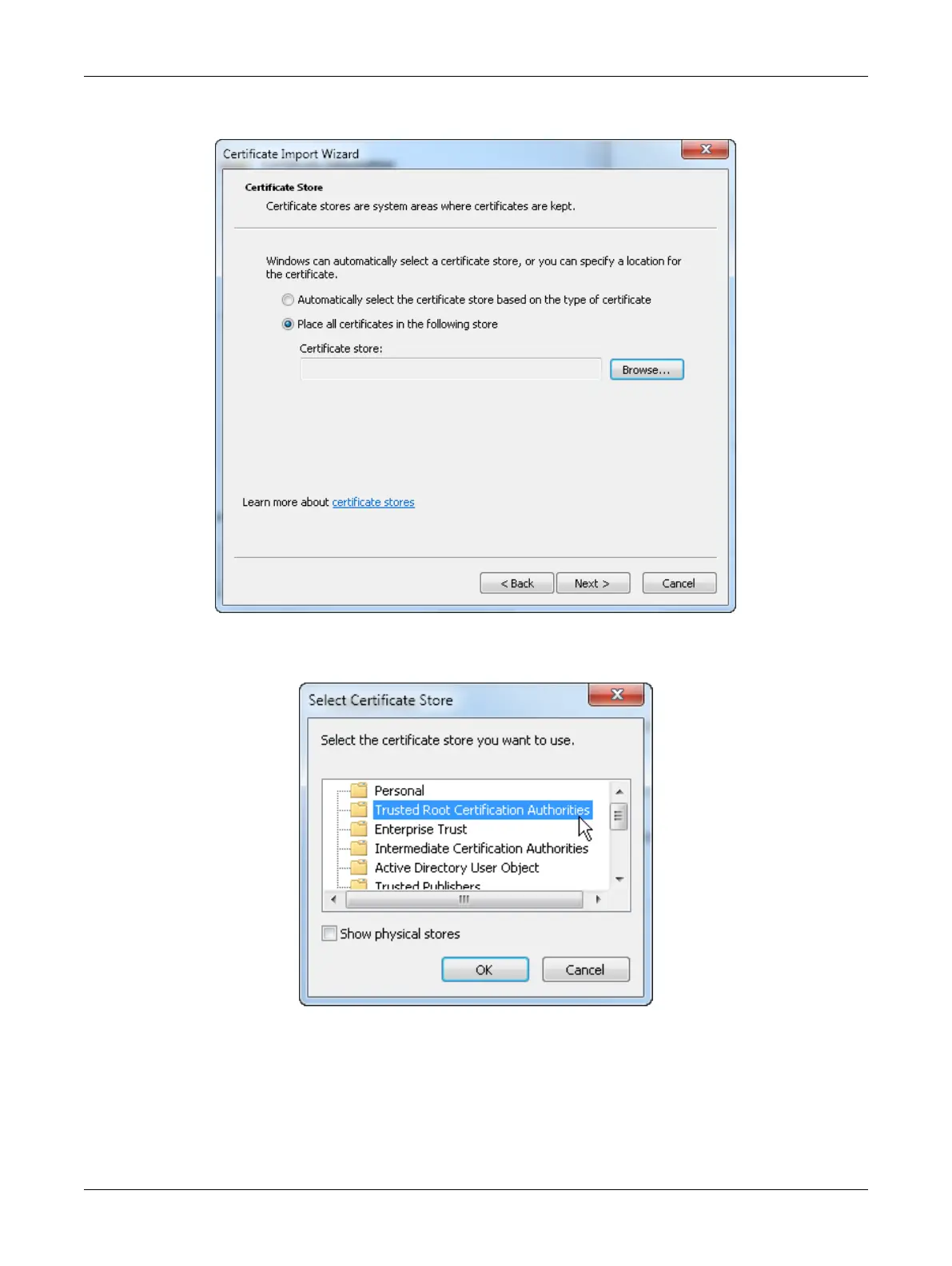

Select
Place all certificates in the following store
. Click
Browse
.
Figure75: Selecting the Store
9.
Select
Trusted Root Certificate Authorities
and click
OK
.
Figure76: Selecting the Trusted Root Certification Authorities Store
10.
Click
Next
. Click
Finish
.
11.
Accept the warning. Click
Yes
.
ECLYPSE Web Interface
85
