8. APPENDICES
8.1 DPC Touch V2 Electrical wiring

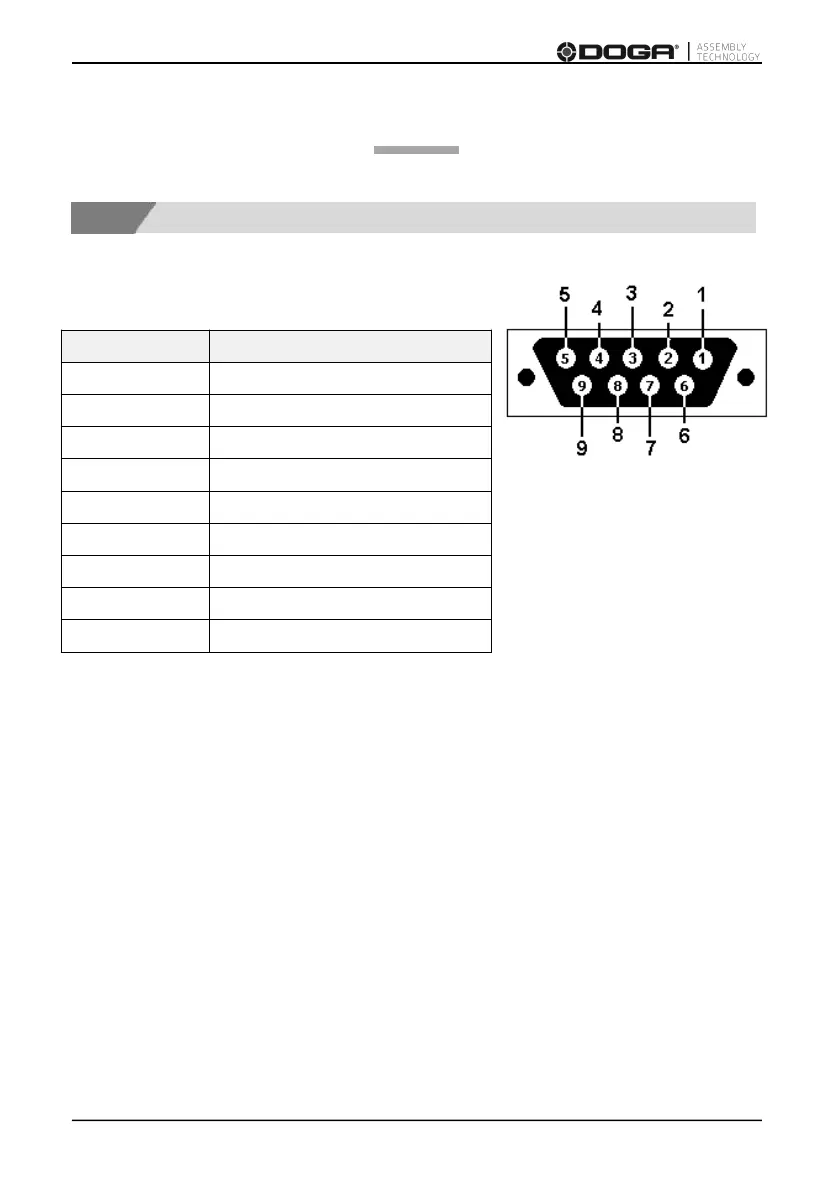

8.1.1 Encoder port wiring scheme
Pin
Fonction
1
5V power supply
2
Channel (1)
3
Channel (2)
4
Ground (Canal 1, Canal 3)
5
Ground (Canal 2, Canal 4)
6
Channel (3)
7
24V (Canal 1, Canal 3)
8
24V (Canal 2, Canal 4)
9
Channel (4)
