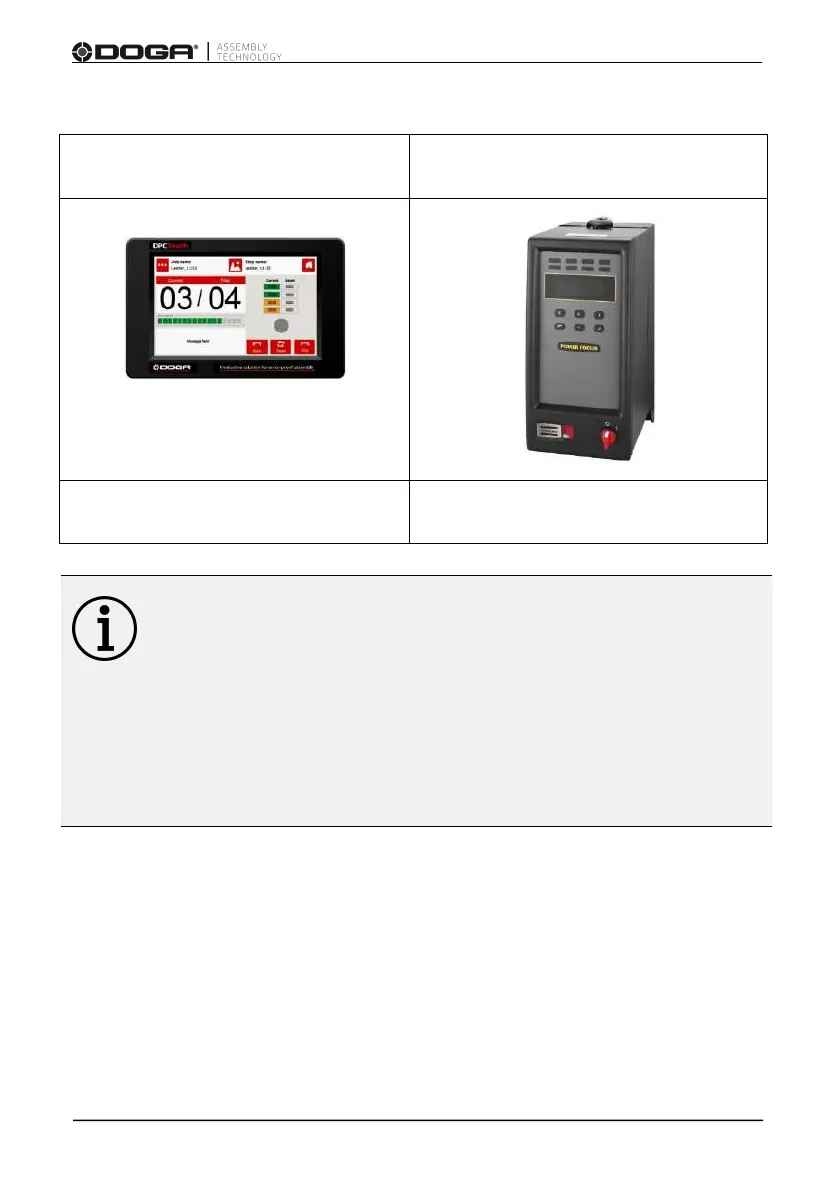

8.2.4. Connection of Atlas Copco PF4000
DPC Touch V2
Atlas PF4000
I/O Adaptor
(DB44 male to DB9 fem. & DB25 fem.)
I/O Connectors
(12 + 10 contacts)
Information
Select DC Tool interface in DPC Touch operating settings. Either
DB25 or DB9 connectors can be used depending on desired number
of I/O’s.
If DB9 connector is used, then max 3 jobs can be selected on DPC Touch in
binary logic by using 2 contacts.
In order to use independent power supply to DPC Touch, do not connect 24V
contact.
