DOGA DPC TOUCH V2 - Connection of DOGA Current Control MDC Series

User manual DPC Touch V2 DOC.60352-11/20
78
Information
Select HDC/SDC tool interface in DPC Touch operating settings.
Select PLC (except Start and Reverse) interface on HDC/SDC
controller.

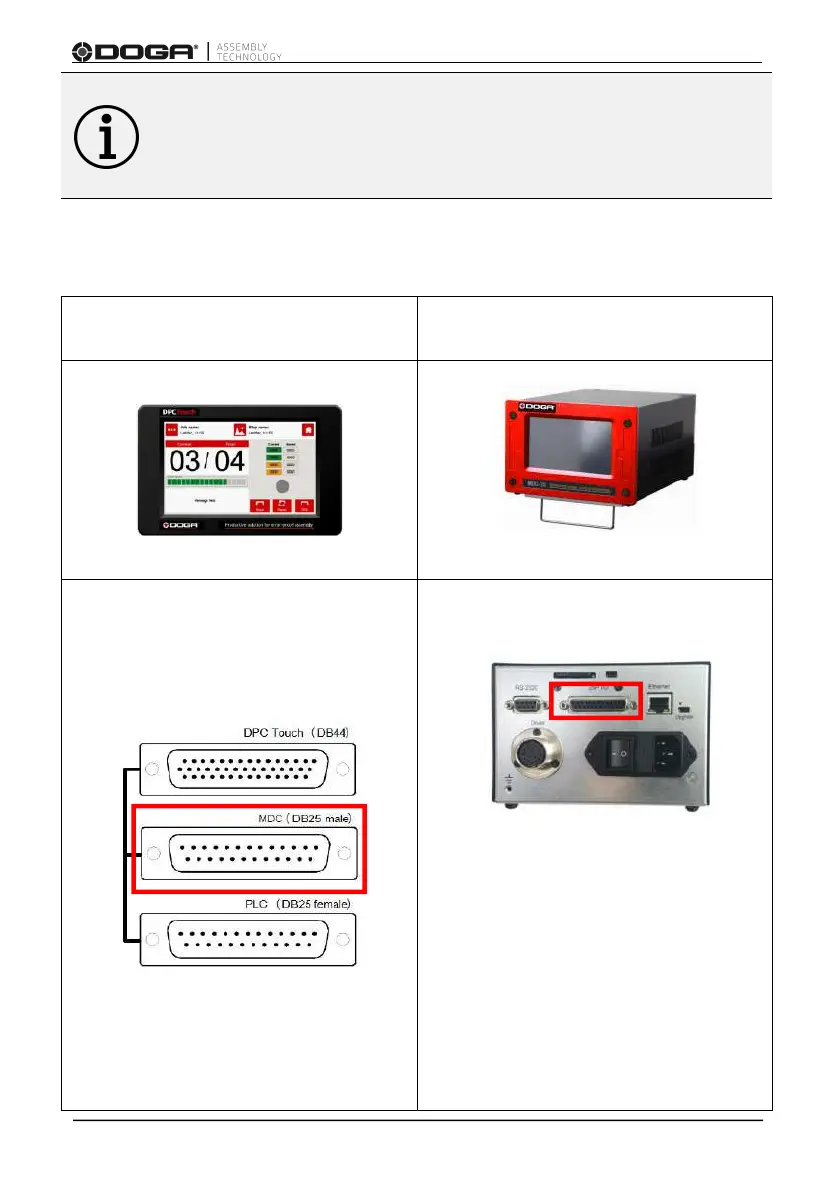

8.2.3. Connection of DOGA current control MDC series
DPC Touch V2
DOGA séries MDC
I/O cable
(DB44 male to DB25 male
E& DB25 female)
Code : 6-1252006
DB25 I/O port
(free potential)
