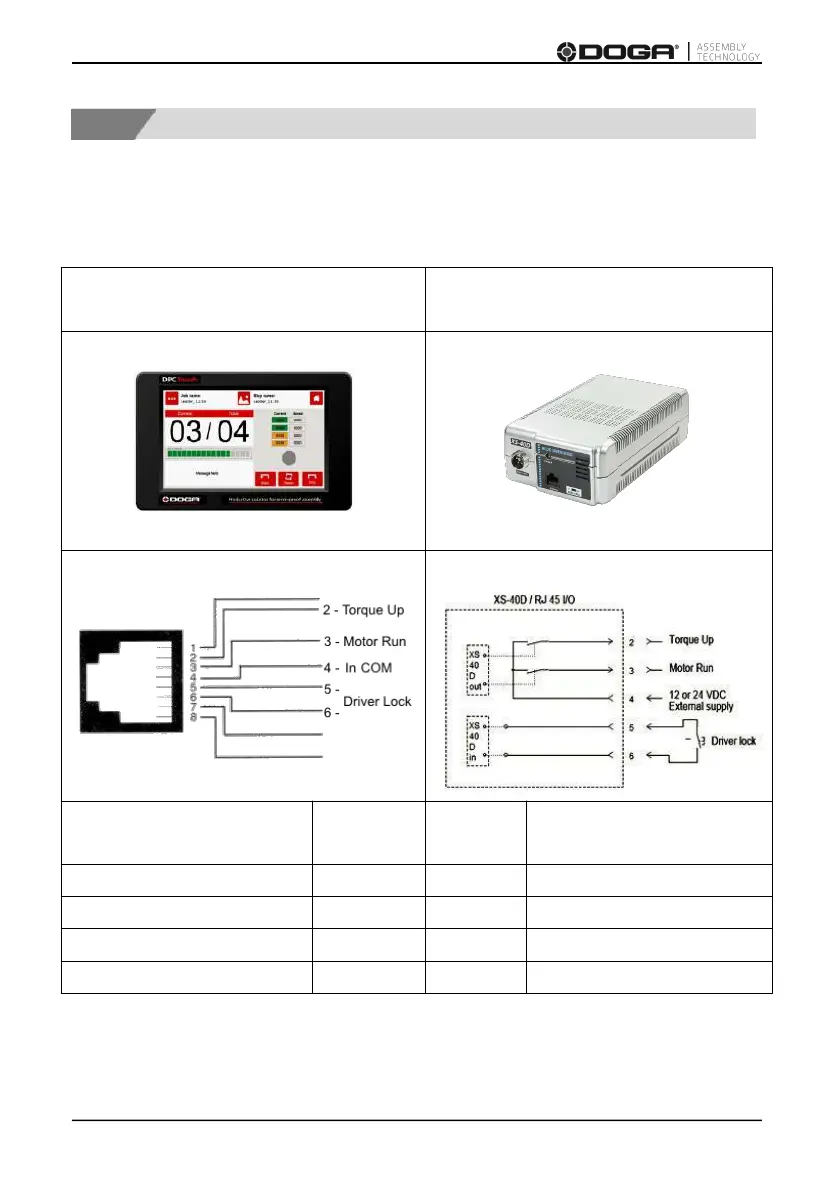

8.2 Connection of DOGA low voltage tools
8.2.1 Connection of DOGA low voltage tool GX/GY/DO/GA
Two tools can be simultaneously connected to corresponding ports DR1 and
DR2.
DPC Touch V2
DOGA
GX/GY/DO/GA*
RJ45 E/S port 1 et 2
RJ45 E/S port
Signal
RJ45 pin
№
RJ45 pin
№
Signal
Driver torque up
2
2
Torque up
Driver motor run
3
3
Motor run
Driver lock
5, 6
5, 6
Driver lock
24V
4
4
24V
*Controllers XT-30D, XS-38D, XS-40D, XS-35D, XT-35D.
