DOGA DPC TOUCH V2 - Connection of Stanley Alpha & Kappa Tools

User manual DPC Touch V2 DOC.60352-11/20
82

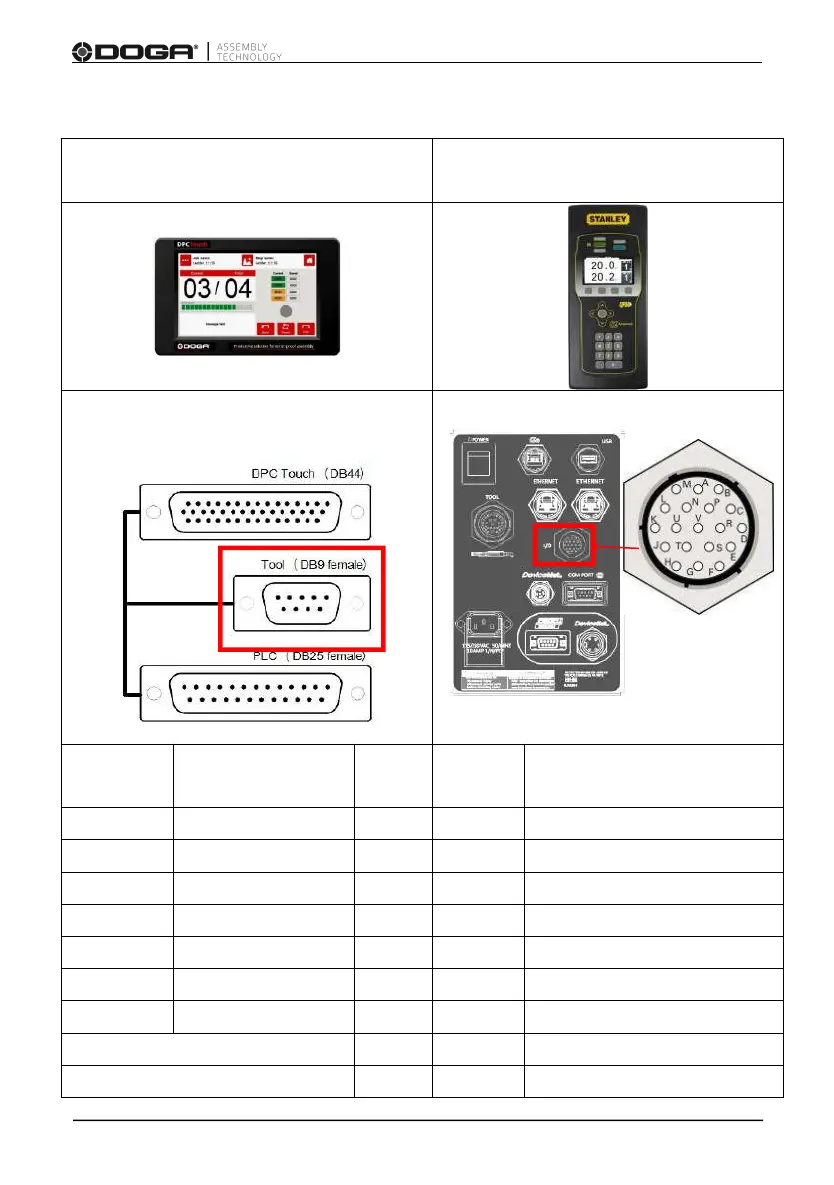

8.2.5. Connection of Stanley Alpha & Kappa tools
DPC Touch V2
Stanley Alpha/Kappa
I/O Adaptor
(DB44 male to DB9 female &t DB25 female)
I/O Port
Input/Ou
put
Assigned signal
N°pin
DB9
N°pin
Stanley
Signal
Output 1
Torque Select 1
1
P
Select Job (bit 0)
Output 2
Torque Select 2
2
R
Select Job (bit 1)
Output 3
Torque Select 3
3
S
Select Job (bit 2)
Output 4
Tool Disable
4
M
Stop (Outil disable)
Input 8
Driver Run
5
C
Motor run
Input 9
Tool Alarm
6
K
Cycle NOK
Input 10
Driver Torque up
7
J
Cycle OK
IN_COM
8
V
0V DC
OUT_COM
9
B
Usual output
