DOGA DPC TOUCH V2 - Two Tools Example Wiring

User manual DPC Touch V2 DOC.60352-11/20
85

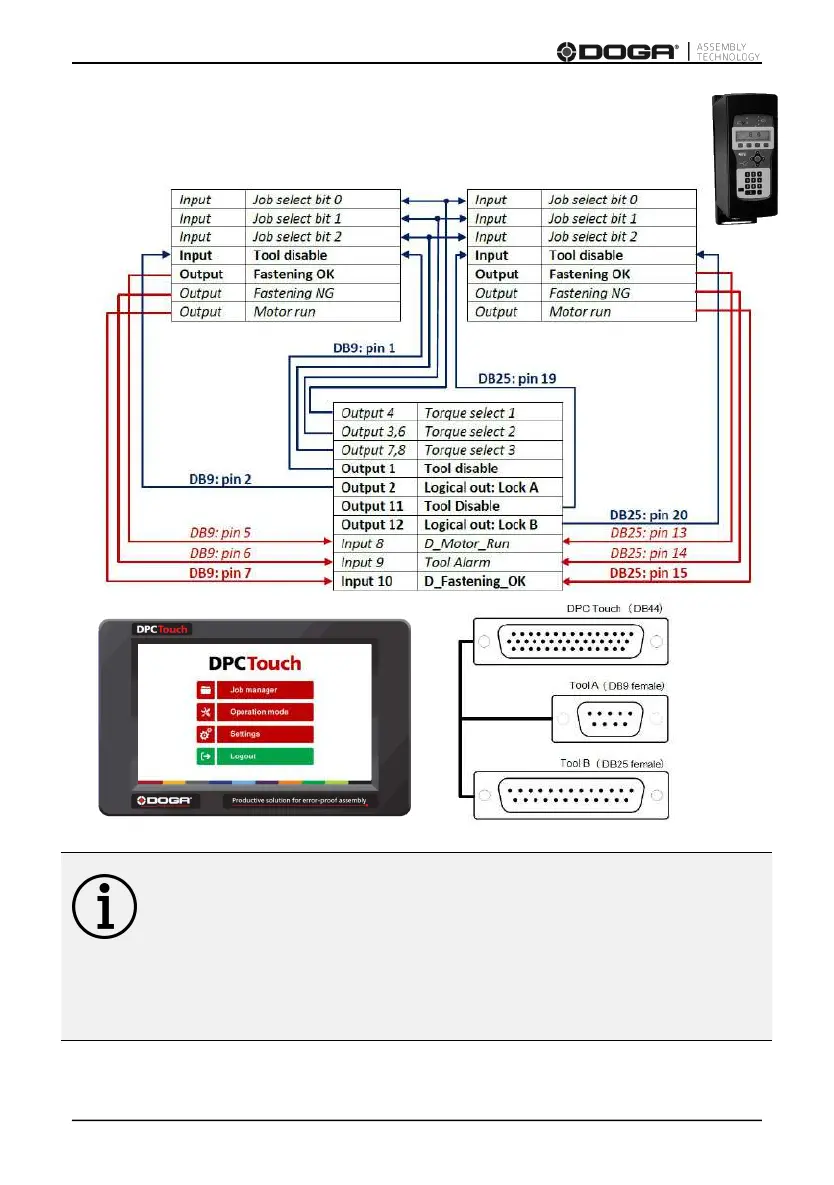

8.2.7. Two tools example wiring
Tool A is connected to DB9 plug / Tool B connected to DB25 plug
Information
Inputs and outputs shown in bold text are mandatory, others are
optional.
Logical outputs (Lock A and Lock B) are used inside a job.
Corresponding output should be enabled (Continuous On signal) in a Logical
Out step to lock corresponding tool during fastening step that follows.
