C - Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020

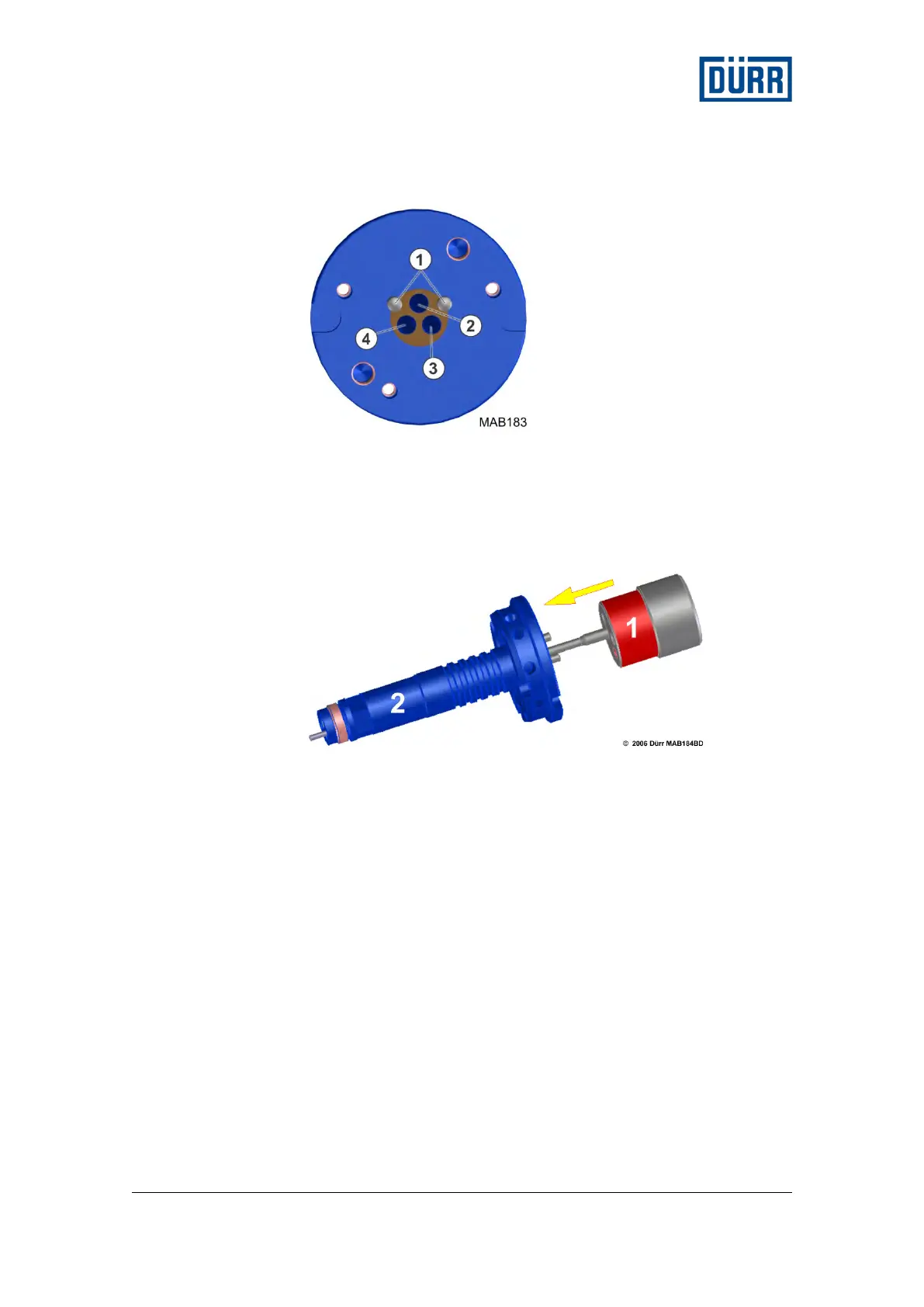

Fig. 84: View of the paint pipe from behind
1 Positioning pins
2 Paint bore
3 Main needle bore
4 Bore for quick rinse (KS)
• Insert the assembly tool for assembly of the paint pipe securely
from behind into the main needle bore of the paint pipe.
Fig, 85: Inserting the assembly tool into the paint pipe
1 Assembly tool
2 Paint pipe
• Twist the assembly tool till the positioning pins on the paint pipe
line up with the bores on the face.
