- Rotating Atomizer with External Charging
Version:: 07 • As of:: 01/2020
Procedure:
• Remove the bell disk (see chapter "Installing bell disk").

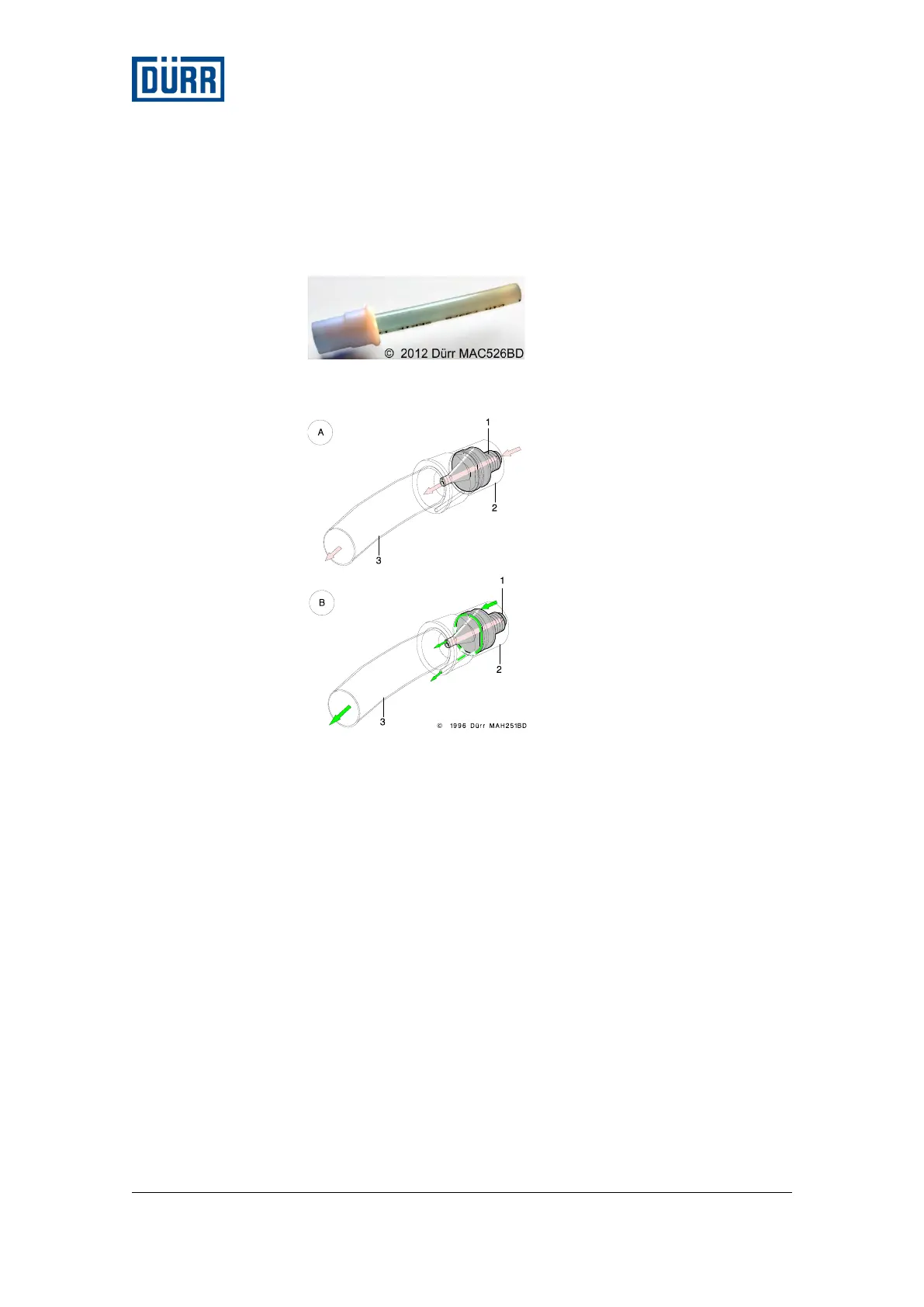

Fig. 32: Adapter for volumetric measurement
• Stick the adapter over the nozzle into the shaft of the turbine.
Fig. 33: Adapter over nozzle
1 Nozzle
2 Adapter
3 Hose
Volumetric measurement of the amount of paint
If you want, you can replace the hose of the adapter with a longer
hose of the same diameter. The paint must be able to flow freely
through the hose.
• Start the volumetric measurement on the visualizer via the control.
• Comparison of the actual quantity to the set quantity.
If the required paint quantity is not obtained or exceeded, the quantity
must be regulated via a pressure change.
