10.2.2 Disassemble Brewer Unit

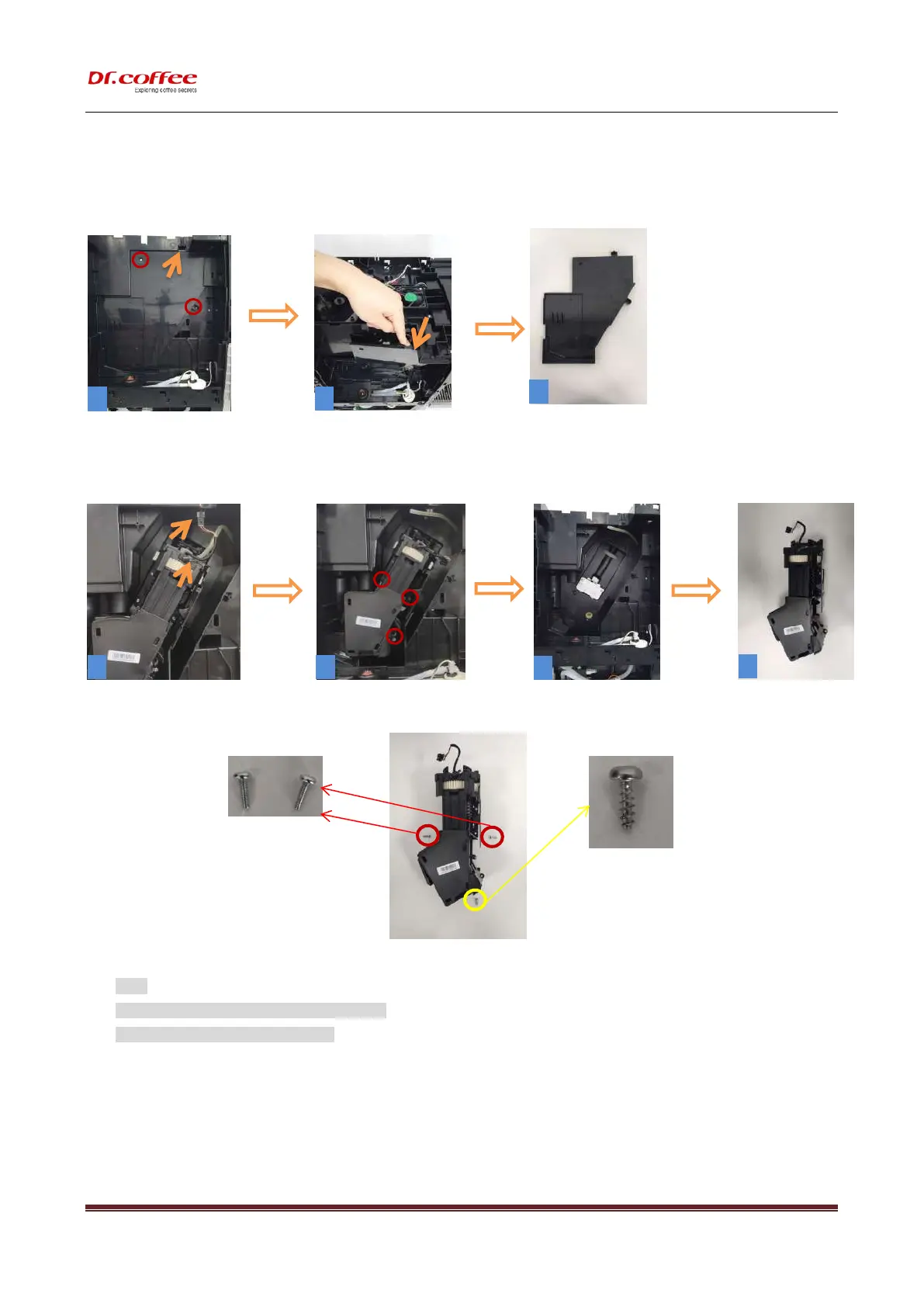

Step1：Remove screws with T10（same as pic.1）， to push the arrow position and take out the baffle ；
Step2：Unplug（pic.4）pipe and plug，Remove screw with T20（pic.5），take out the brewer, over。
★ NOTE:
1. Please remove after cooling down to prevent scald!
2. Make sure the screws in correct position.
