10.2.6 Disassemble Magnetic Valve Group

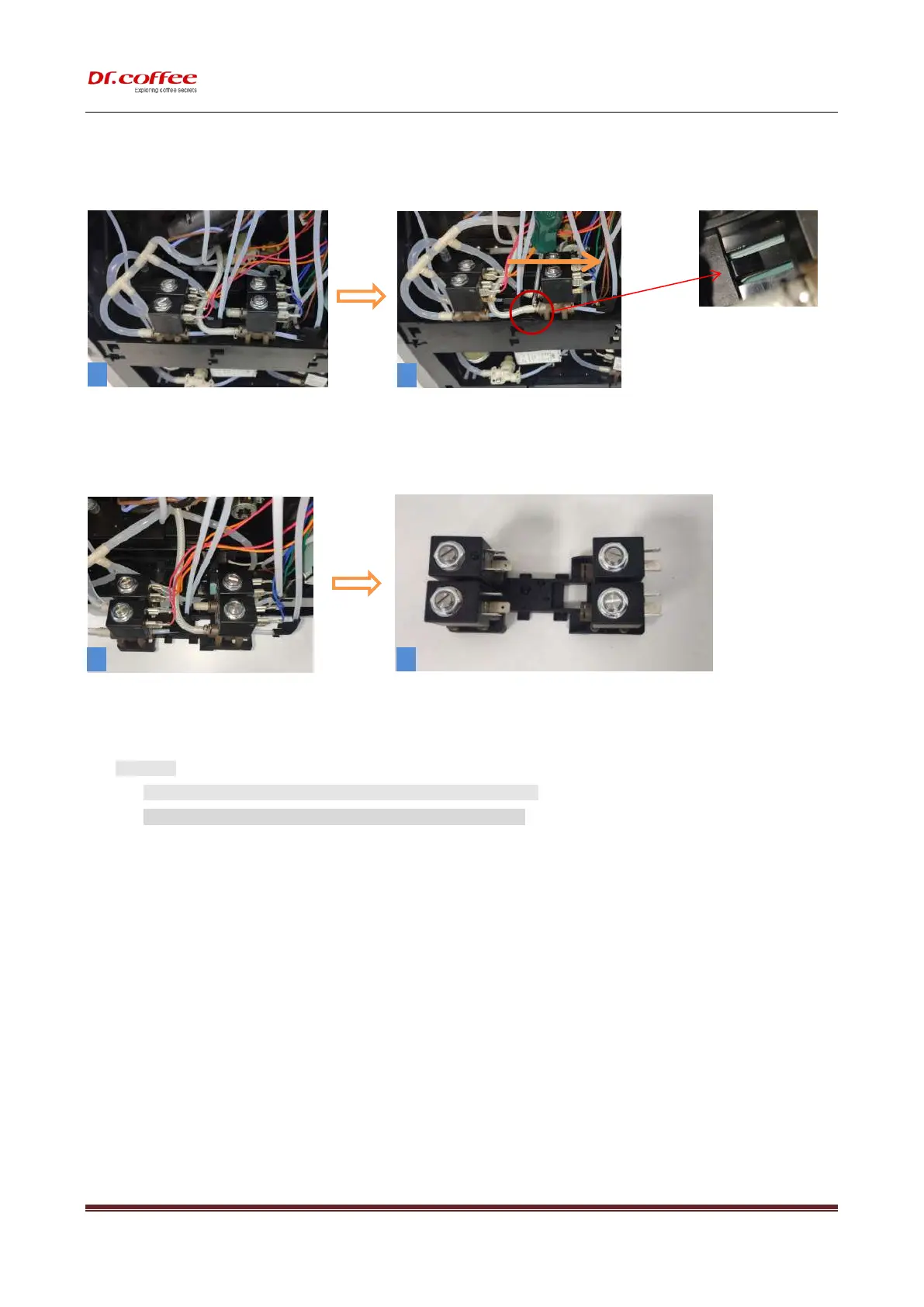

Step1：Push（pic.2）the Snap here，then remove the group from fixed card slot.
Step2：（Pic.3）Unplug all the pipes here.
★ Attention：
2、 Be careful during the disassembly process to prevent scratching your fingers！
3、 Take a picture before unplug all pipes in case don’t know how to put it back.
3
4
1
2
Push here
