Dr.coffee M12 - Milk Pipe Maintenance

Rev 0.1
Dr.coffee Service Manual 73
11.2 Milk Pipe Cleaning

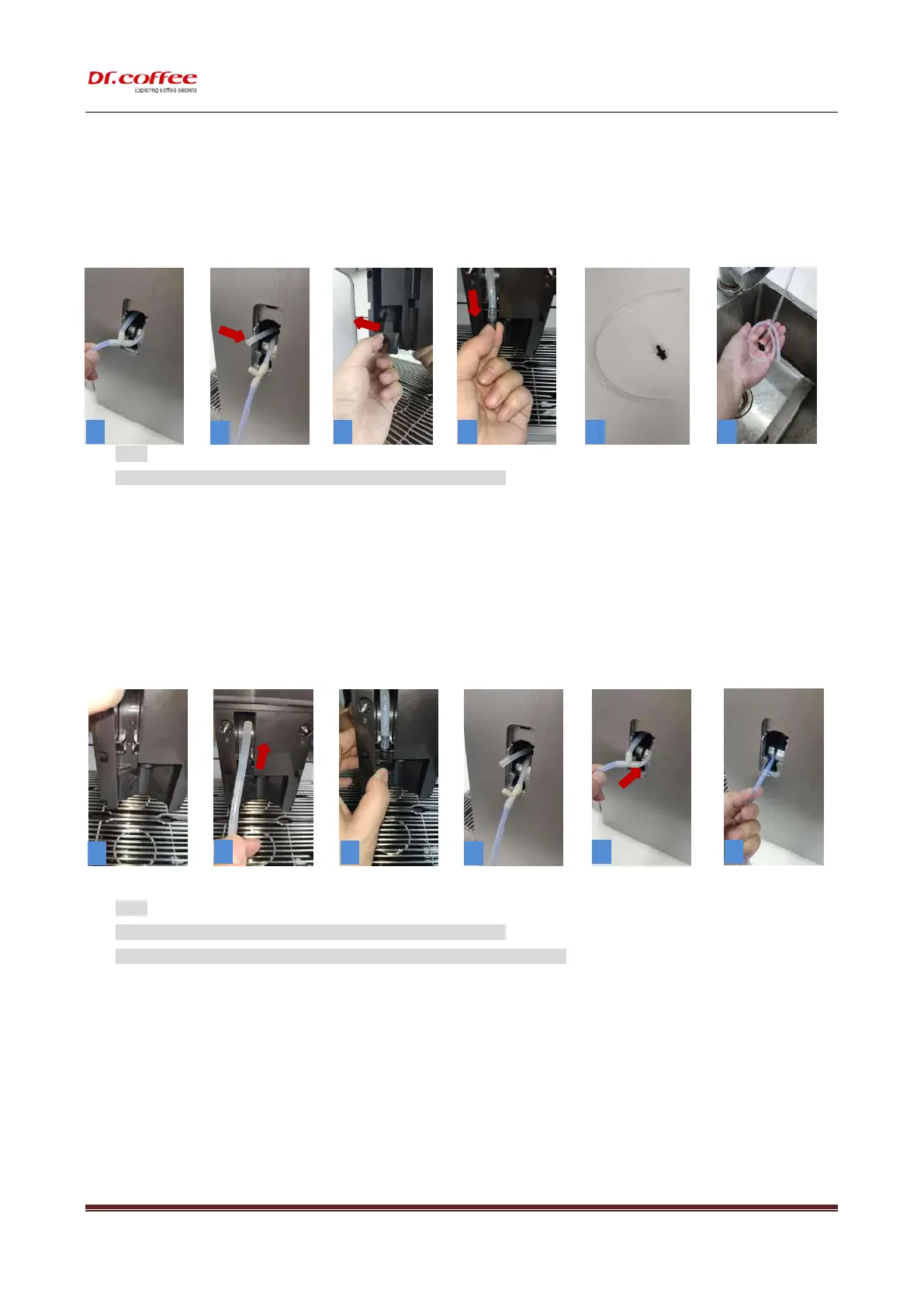

11.2.1 Method of Milk Pipe Dissembling
Step 1: Move out the cover as the direction in Figure 1
Step2: Disassemble the milk pipe and disconnect to 3-way connector.
★ NOTE:
1. Do not break the Milk Pipe while assembling, or milk could not be sucked.
11.2.2 Method of Milk Pipe Connection
Step 1: Connect milk pipe to 3 Way Hose Connector, stick lock it into pinch valve.(Pic5）
Step 2: Lock milk pipe into the slot of cover, as the direction showed in (Pigure 3) then assemble the cover into the
hole, and make it fixed.
★ NOTE:
1. Do not break the Milk Pipe while assembling, or milk could not be sucked.
2. Do not squeeze the Milk Pipe narrowly when assembling, or milk could not be sucked.
