Dr.coffee M12 - Flow Meter and Water Inlet Valve Disassembly

Rev 0.1
Dr.coffee Service Manual 65

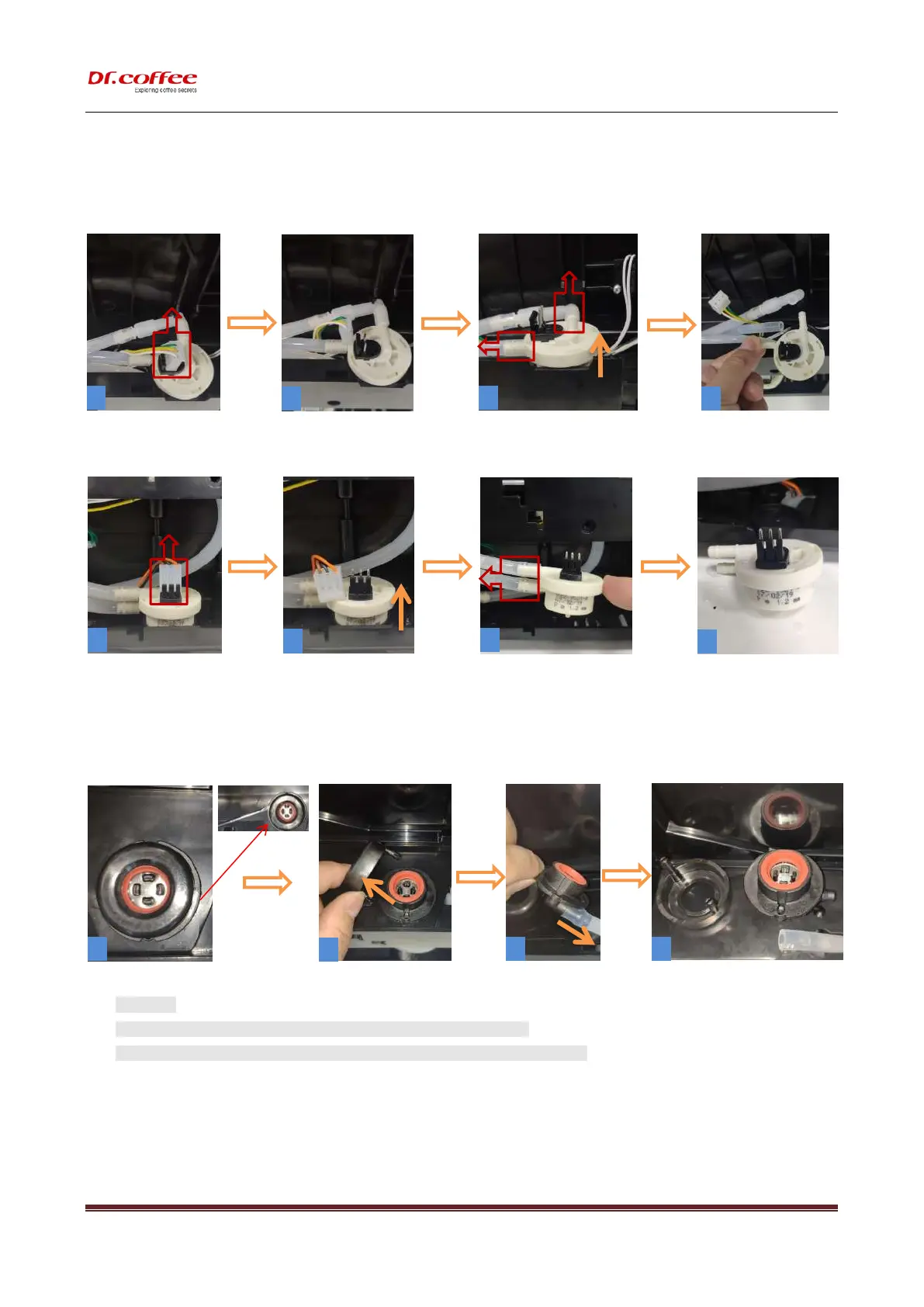

10.2.8 Disassemble Flow Meter
Step1：First unplug the wiring plug on the flow meter, then pull up the flow meter, and finally unplug the connected water pipe to take out the flow
meter and disassemble the flow meter.
Step2：（Pic.1）Unplug wire，then（pic.2）pull out flow meter，（pic.3）Unplug the tube.
10.2.9 Disassemble Water Inlet Valve
Step：First pull out the water guide cover (can be picked up with a screwdriver), then pull up the water guide and unplug the connected water pipe.
Disassemble the water inlet valve
★ Attention：
1、Be careful during the disassembly process to prevent scratching your fingers！
2、There may be residual water in the pipe. Please prepare the water container in advance！
4
3
2
Steam Pump Flow Meter
1
4
Coffee Pump Flow Meter
1
2
3
4
1
2
3
