4. WP8030INSTALLATION
Required tool: Philips screwdriver #2.
WP8030 mounting process is shown in Figures 4.1 - 4.13.

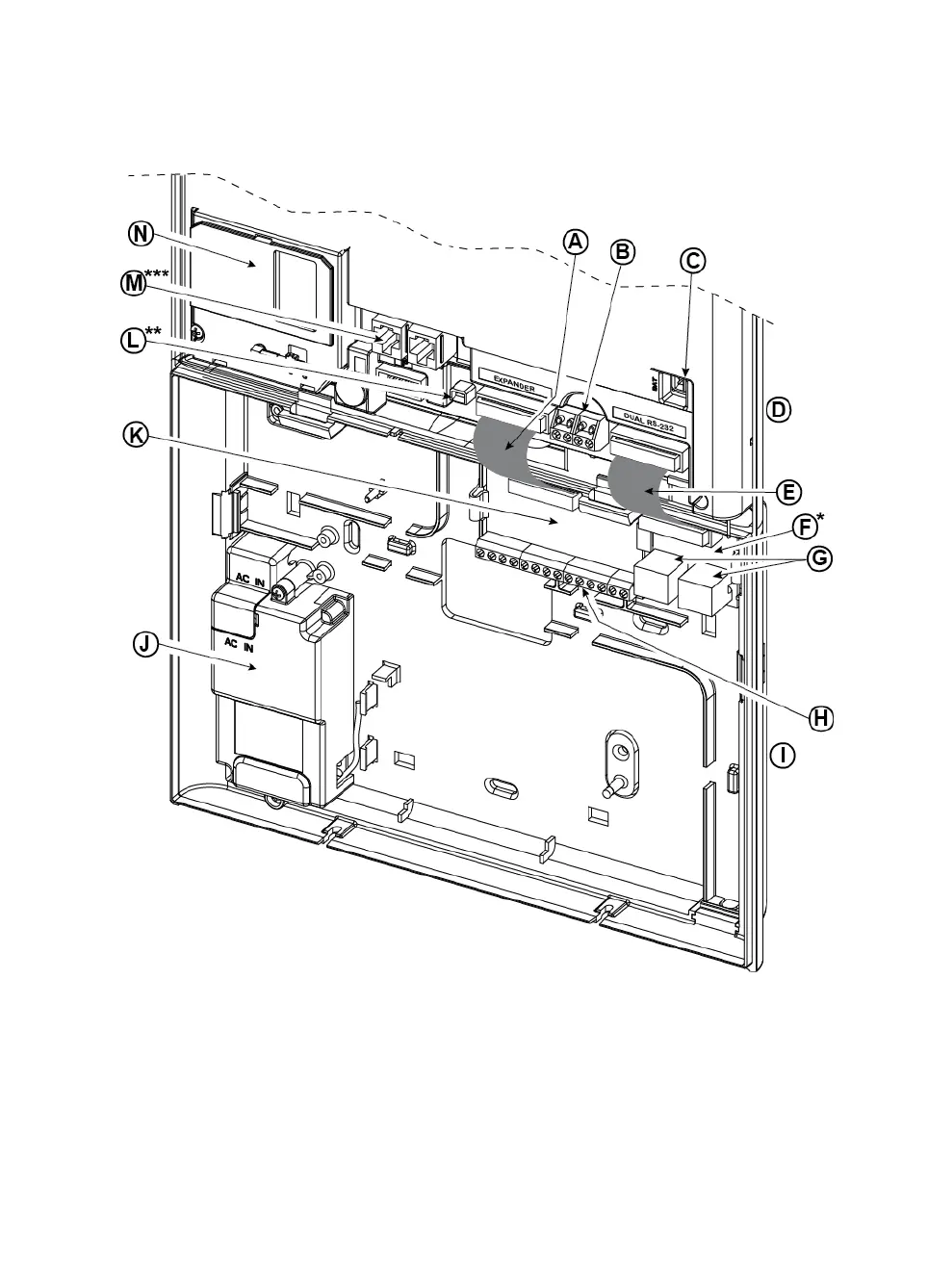

4.1 WP8030Wiring Diagram
A. Expander Module Flat
Cable
B. Wired Zone / Special
Siren Terminal Block
C. Battery Connector
D. Front Unit
E. Dual RS-232 Module Flat
Cable
F. Dual RS-232 Module
G. Dual RS-232 Module
Connectors
H. Expander Module Wiring
Terminal Blocks
I. Back Unit
J. Power Supply
K. Expander Module
L. Power Connector
M. Phone Wiring
Connectors
N. GSM-350 PG2
* or PGM-5 Module
** or External Power Connector
*** or Terminal Block in North American Panels
Figure 4.1 – WP8030Wiring Diagram
