3. WP8010 INSTALLATION
D-306233 CUSDOC PM-10/30 V18 DSC TRIPLE EN INST 95
F4. Installing the DSC PowerLink3 IP Communicator
Perform the following instructions for the DSC PowerLink3 IP Communicator hardware installation:
Note PowerLink3 IP Communicator operation is not backed up by the control panel's battery and it is shut down during
AC failure.
Hardware Installation
Note: The WP8010/WP8030supports the use of the PowerLink IP communicator and GSM module.

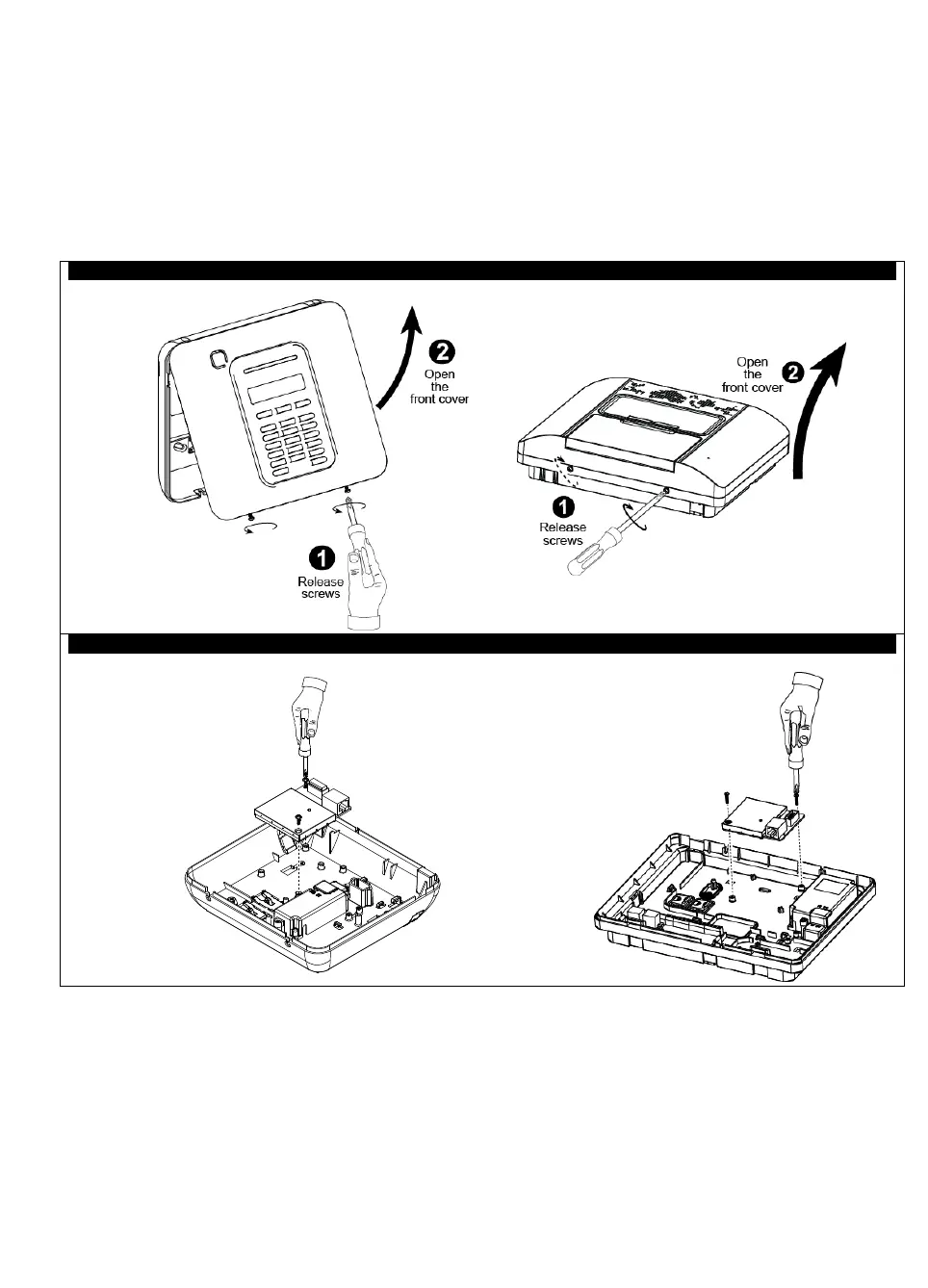

Step 1.
Open the control panel:
Step 2.
Mount the Internal PowerLink3 IP Communicator into the control panel and fasten it with 2 screws:
To Next Page
