3. WP8010 INSTALLATION
26 D-306233 CUSDOC PM-10/30 V18 DSC TRIPLE EN INST
EXTERNAL POWER CONNECTION
Connect the power adaptor to the front panel power connector.
A. Power supply manufacturer LEADER ELECTRONICS. For UL installations, model no. MU15-R125120-A1, p/n
MU15-R1125-A00S. For ULC installations, model no. MU15- R125120-A1, p/n MU15-R1125-A01S.

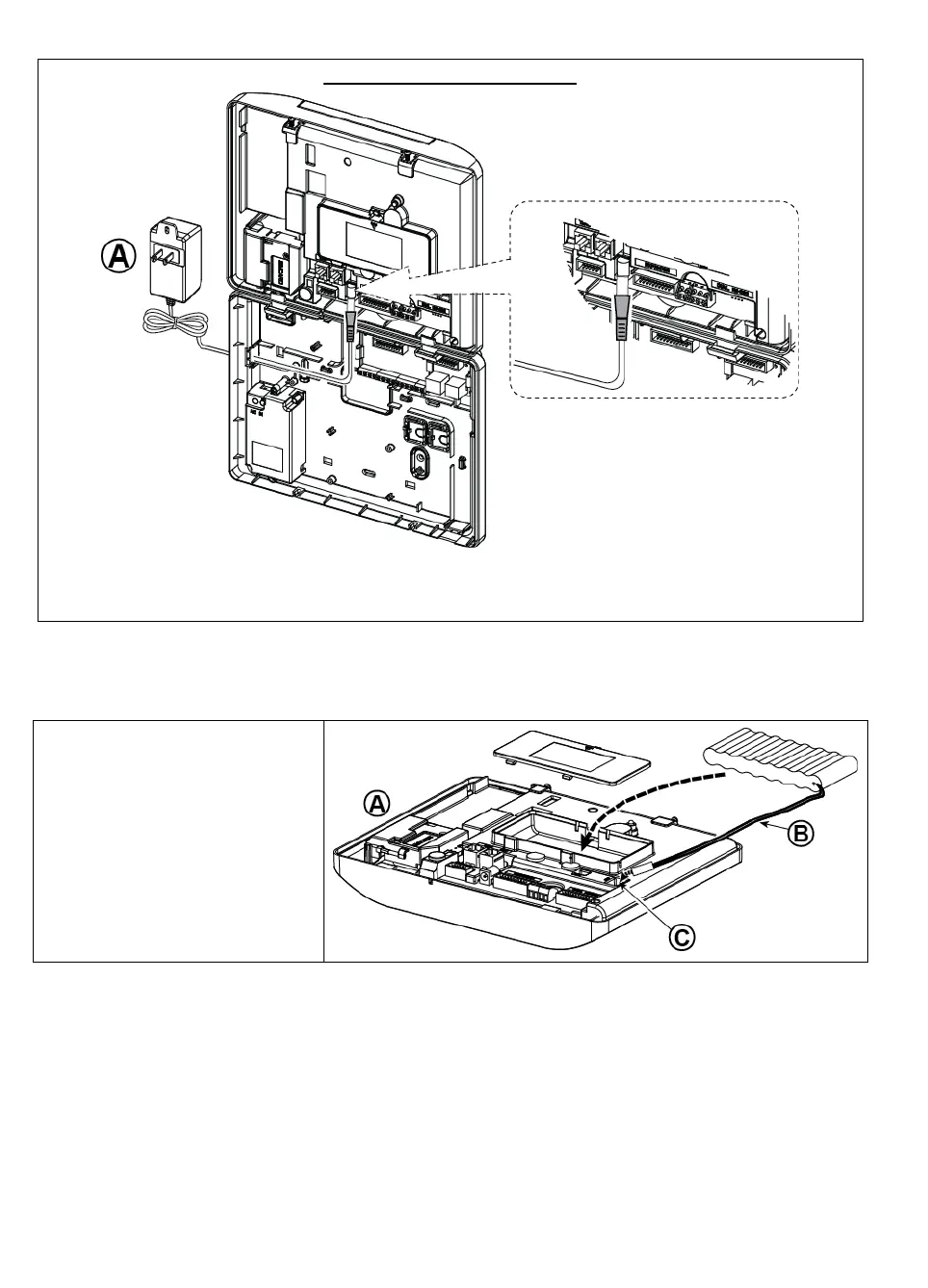

Figure 4.10b – External Power Connection
4.11 Battery Insertion
Open battery compartment cover.
Insert one 6-battery pack or 8-battery
pack and connect its connector as
shown in Figure 4.11.
A. Front unit
B. Battery cable
C. Battery cable connector
Figure 4.11 – Battery Insertion
4.12 Supplying Power to the Unit
Connect power to the WP8030temporarily (see Figures 4.10a and 4.10b). Alternatively, you may power up from the
backup battery, as shown in Figure 4.11.
Disregard any “trouble” indications pertaining to lack of battery or lack of telephone line connection.
For Europe Safety Compliance:
a. The model shall be installed according to the local electrical code.
b. The circuit breaker shall be readily accessible.
c. The rating of the external circuit breaker shall be 16A or less.
Please refer to Figure 4.11 "Battery Insertion".
