Aligning the needle bar linkage
48
Service Instructions 967 - 02.0 - 12/2015

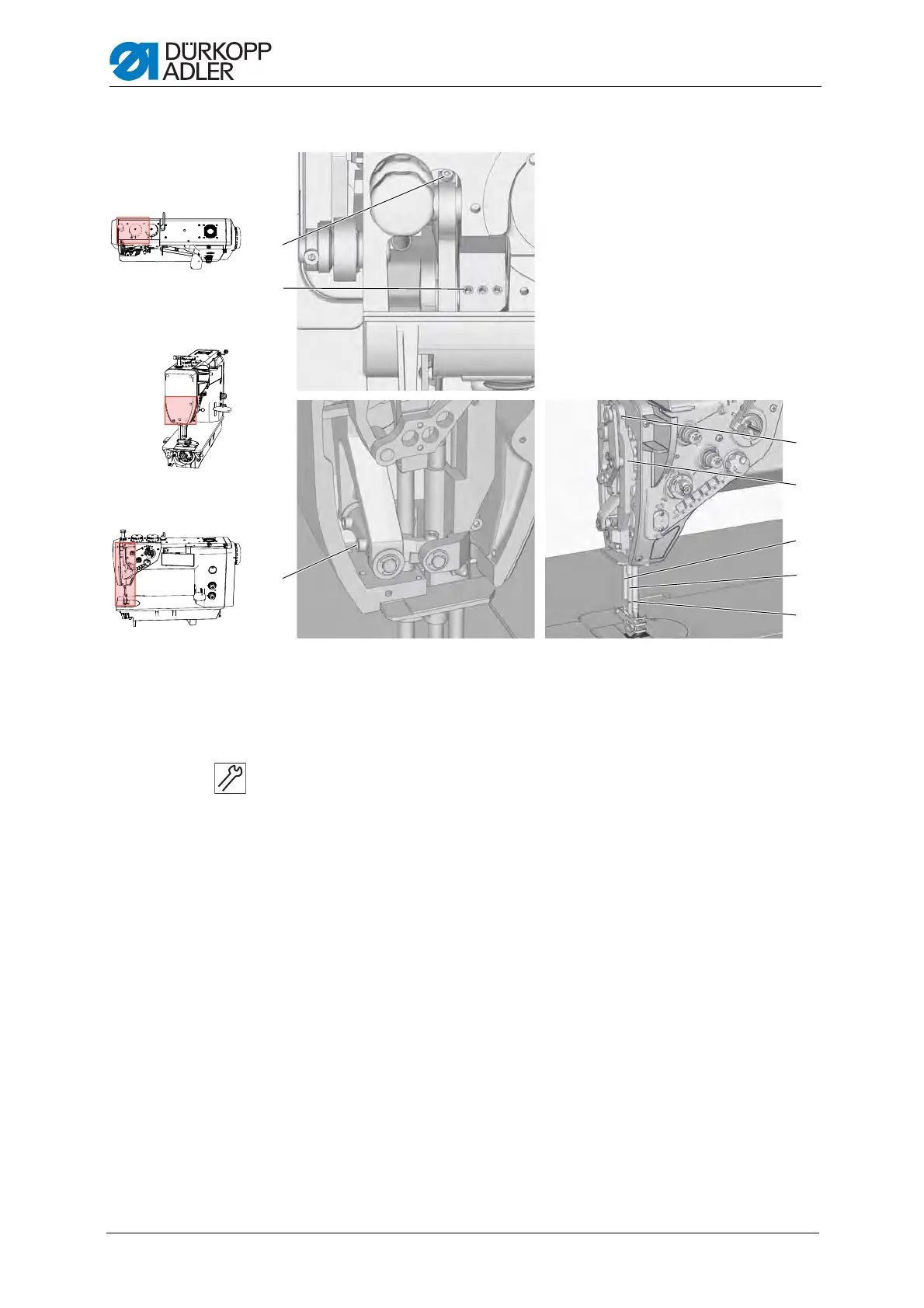

Fig. 32: Lateral alignment of the needle bar
Setting steps
1. Set stitch length to 0.
2
. Put the handwheel into the 90° position ( p. 20).
3. Loosen the screw (1).
4. Loosen the screws (2).
5. Loosen the screws (3).
6. Loosen the screw (8).
7. Move the needle bar guide (7) laterally so that the needle bar (4), sewing
foot bar (5) and presser foot bar (6) are all in a line.
8. Tighten screws (1), (2), (3), and (8).
(1) - Screw
(2) - Screws
(3) - Screws
(4) - Needle bar
(5) - Sewing foot bar
(6) - Presser foot bar
(7) - Needle bar guide
(8) - Screw
①
②
③
④
⑤
⑥
⑦
⑧
