Positioning the arm shaft
Service Instructions 967 - 02.0 - 12/2015
21
4 Positioning the arm shaft
Proper setting
The 3 setscrews (1) are seated flush on
the flat. The arm shaft crank is
flush with the machine casting.
Cover
• Upper left cover, ( p. 11).

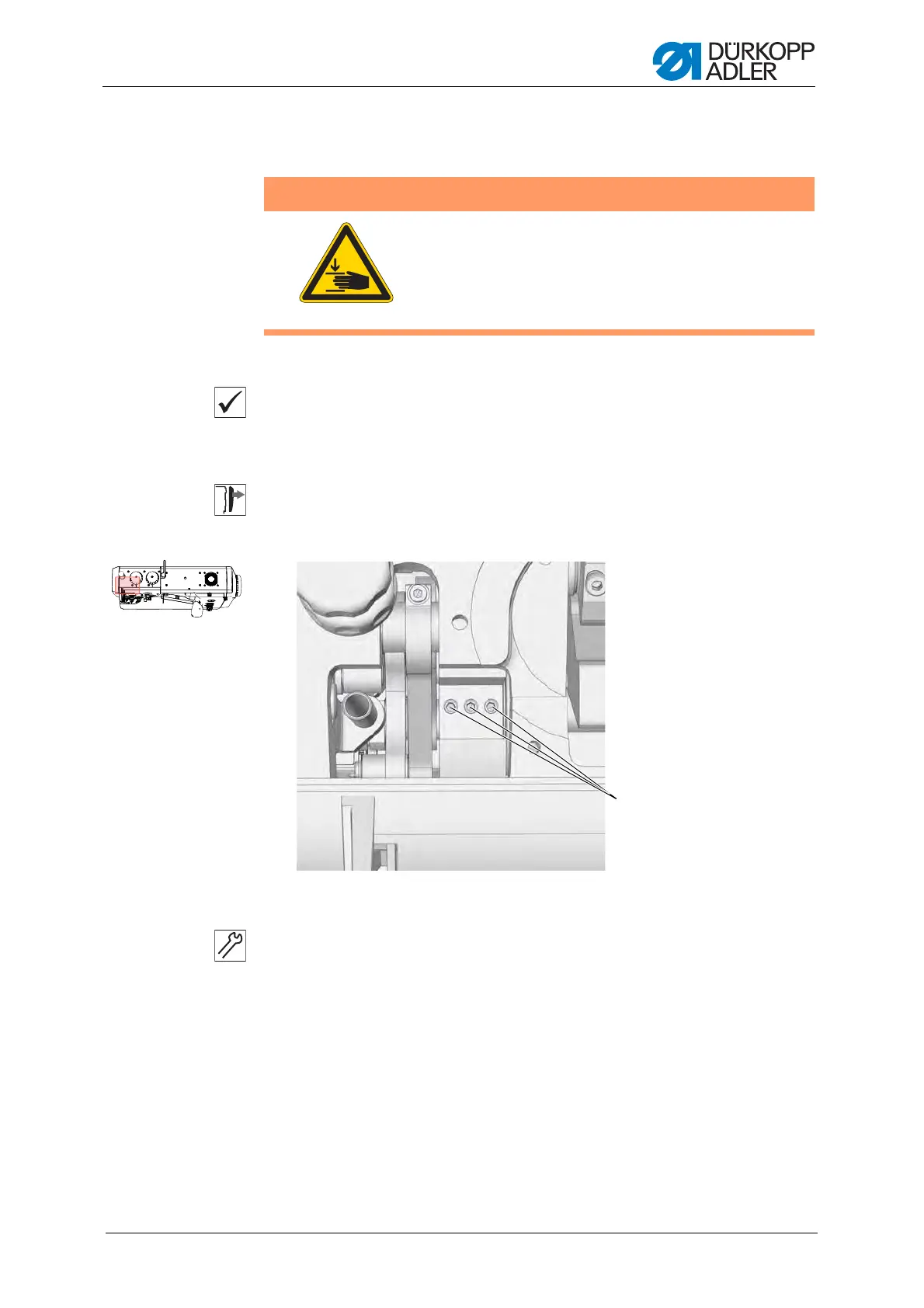

Fig. 14: Setting the arm shaft crank
Setting steps
1. Loosen all setscrews (1) on the arm shaft crank.
2
. Turn the arm shaft crank such that the setscrews (1) are seated flush
on the flat of the arm shaft.
3. Push the arm shaft to the right as far as it will go and flush with the
machine casting.
4. Tighten all setscrews (1) on the arm shaft crank.
WARNING
Risk of injury!
Crushing injuries from moving parts.
Switch the machine off before you check and set
th
e position of the arm shaft crank.
