Setting the handwheel scale
Service Instructions 967 - 02.0 - 12/2015
23
5 Setting the handwheel scale
Proper setting
Lock the machine in place at position 2 ( p. 19).
Th
e handwheel is at the 180° position.
Cover
• Remove handwheel and belt cover ( p. 13).

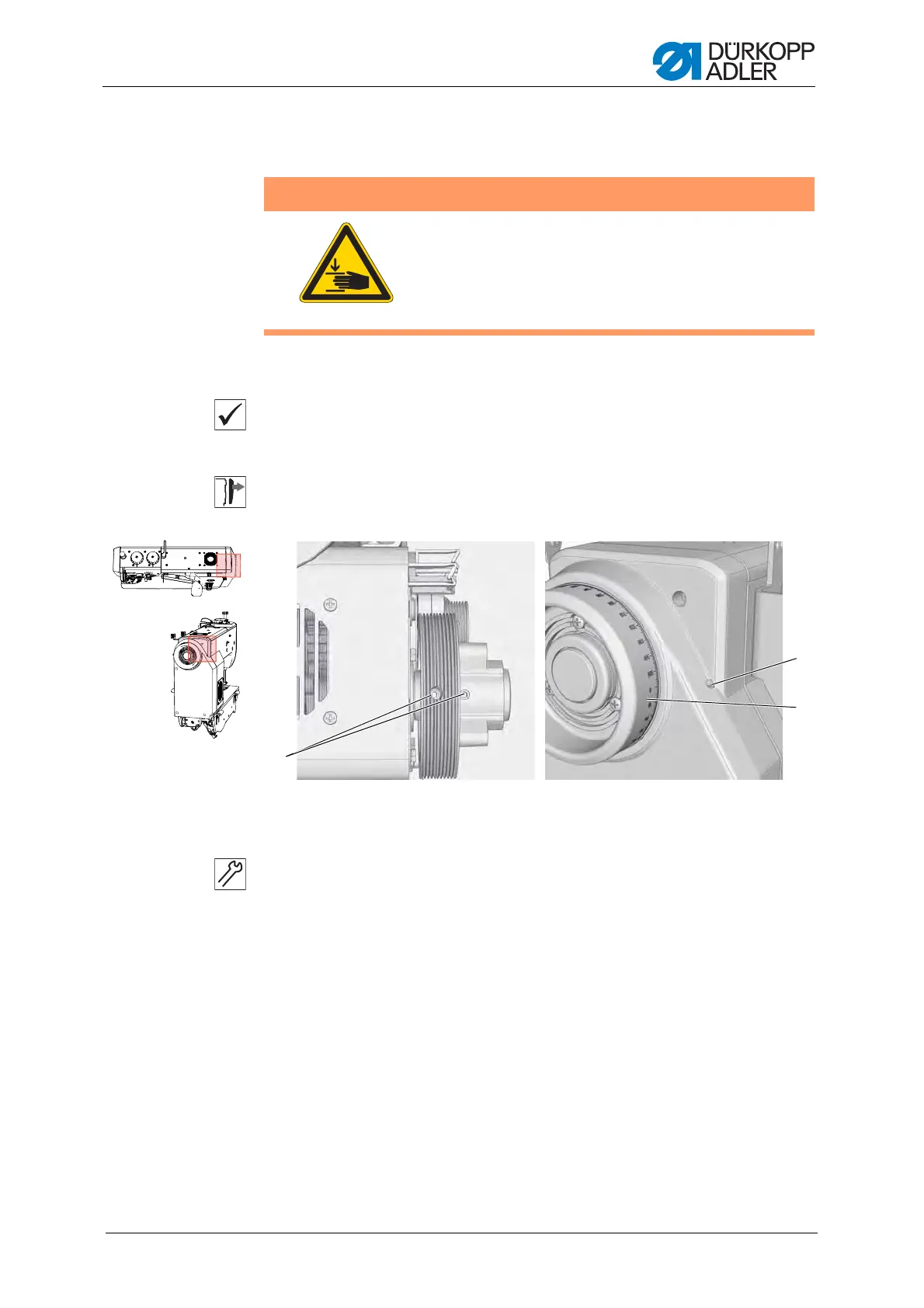

Fig. 15: Setting the handwheel scale
Setting steps
1. Remove belt cover and handwheel ( p
. 13), and take off the ridged
drive belt ( p. 25).
2. Loosen the screws (1).
3. Install belt cover and handwheel.
4. Lock the machine in place at position 2 ( p. 19).
5. Set handwheel (2) to 180° position ( p. 20).
6. Slide the hex key through the opening (3) into the adjusting screw and
tighten the screw.
7. Remove belt cover and handwheel ( p. 13).
8. Tighten the screws (1).
9. Install ridged drive belt as well as belt cover and handwheel.
WARNING
Risk of injury!
Crushing injuries from moving parts.
Switch the machine off before you check and set
th
e position of the handwheel on the arm shaft.
(1) - Screws
(2) - Handwheel
(3) - Opening for the hex key
①
②
③
