DURKOPP ADLER 967 - Adjusting the Drive Pulley

Setting the drive
26
Service Instructions 967 - 02.0 - 12/2015
6.1.2 Adjusting the drive pulley
Proper setting
Regardless of which side of the drive pulley (2) is being used, there is a
d
ifference in height of 16 mm between the faces of the two pulleys.

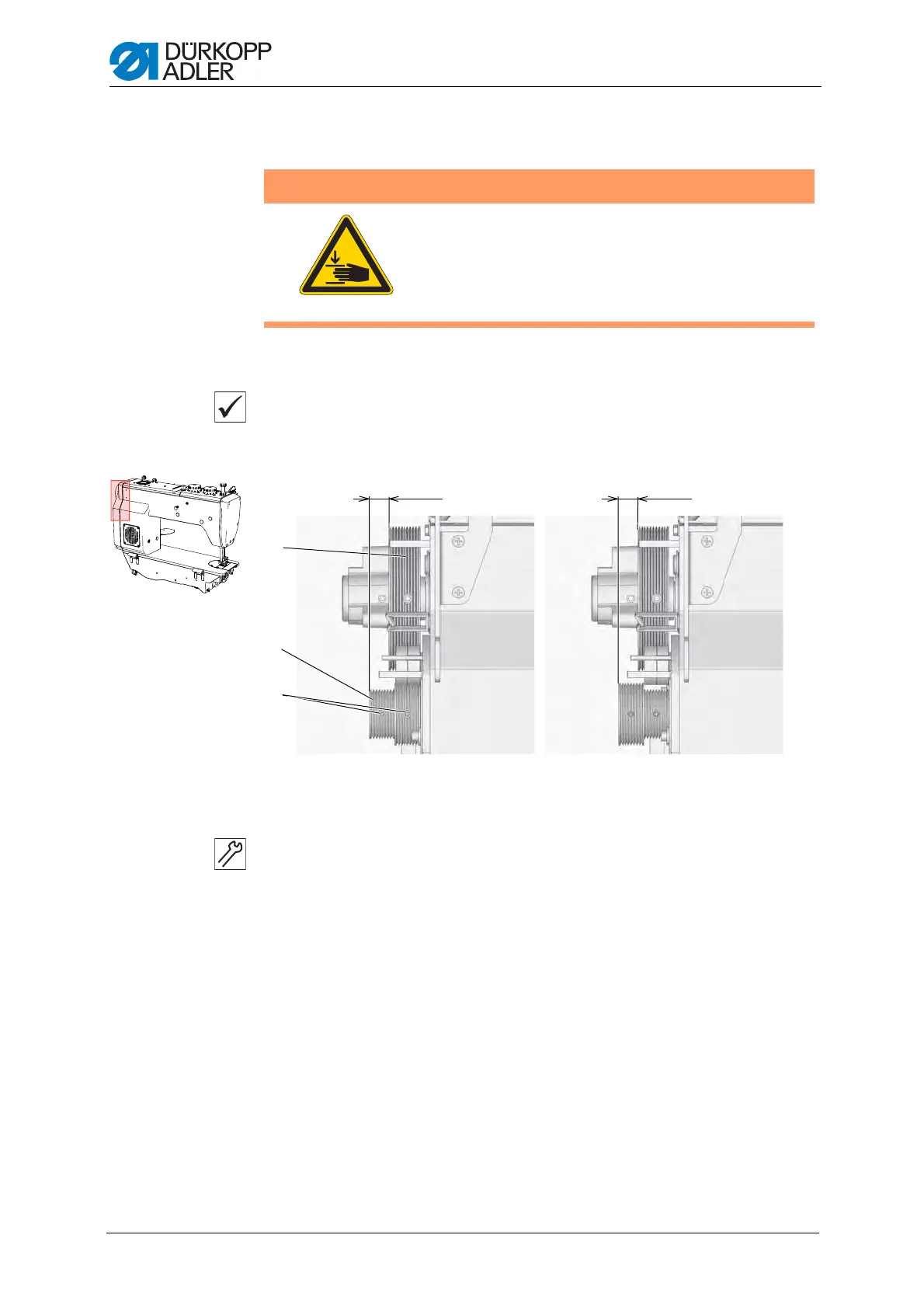

Fig. 17: Adjusting the drive pulley
Setting steps
1. Loosen the screws (3).
2
. Pull the drive pulley (2) off the motor shaft and put it back on the other
way round.
3. Set a height difference of 16 mm between the faces of the drive pulley
(2) and the driven pulley (1).
4. Tighten the screws (3).
WARNING
Risk of injury!
Crushing injuries from moving parts.
Switch off the machine before checking and setting
th
e drive pulley.
(1) - Driven pulley
(2) - Drive pulley
(3) - Adjusting screws
①
②
③
16 mm16 mm
