Setting the feed dog
40
Service Instructions 967 - 02.0 - 12/2015
8.1.1 Moving the feed dog
Cover
• Throat plate ( p. 15)

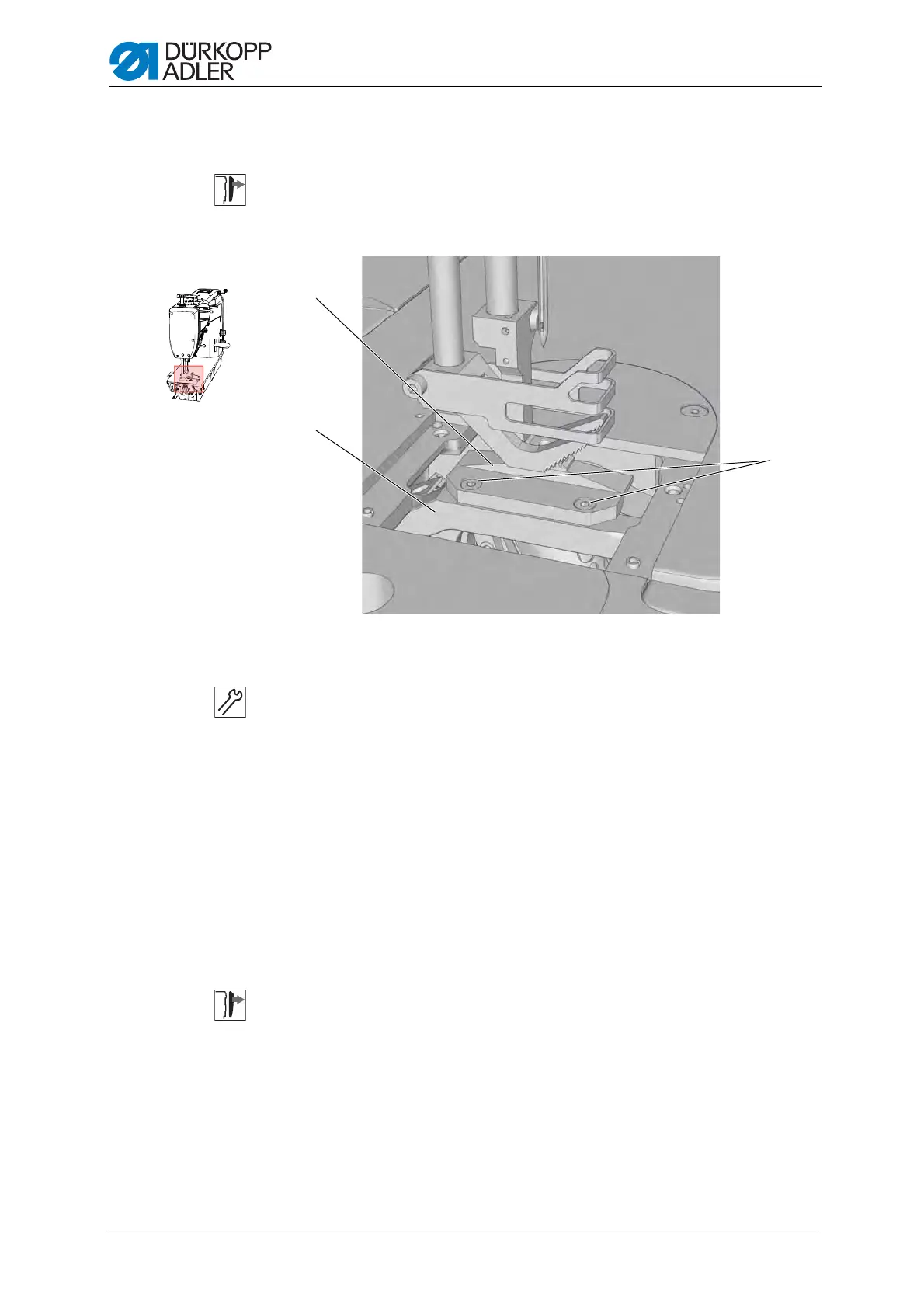

Fig. 27: Moving the feed dog on the feed dog carrier
Setting steps
1. Loosen the screws (3).
2
. Move the feed dog (1) on the feed dog carrier (2).
Place the removed throat plate next to it as an aid for orientation
so that the feed dog can be screwed on straight.
3. Tighten the screws (3).
8.1.2 Moving the feed dog carrier
The feed dog carrier is connected to the stitch regulator gear via the sliding
shaft
and can be moved on this shaft.
Cover
• Tilt the machine head ( p. 10)
(1) - Feed dog
(2) - Feed dog carrier
(3) - Screws
①
②
③
