Setting the feed dog
42
Service Instructions 967 - 02.0 - 12/2015
8.2 Setting the feed dog movement
The feed dog moves in an elliptical cycle. To align this correctly, both the
feed movement and the stroke height and stroke movement of the feed
dog have to be set.
Sequence
First check the following setting:
• Feed dog ( p. 39)
8.2.1 Adjusting the forwards movement
The correct setting for the feed movement is checked at standstill and set
u
sing the pusher eccentric.
Proper setting
Handwheel at the 190° position, and set the upper stitch length adjusting
whe
el to the maximum stitch length.
If the stitch regulator is pressed down, the feed dog stops.
Cover
• Remove the upper right cover ( p. 11)

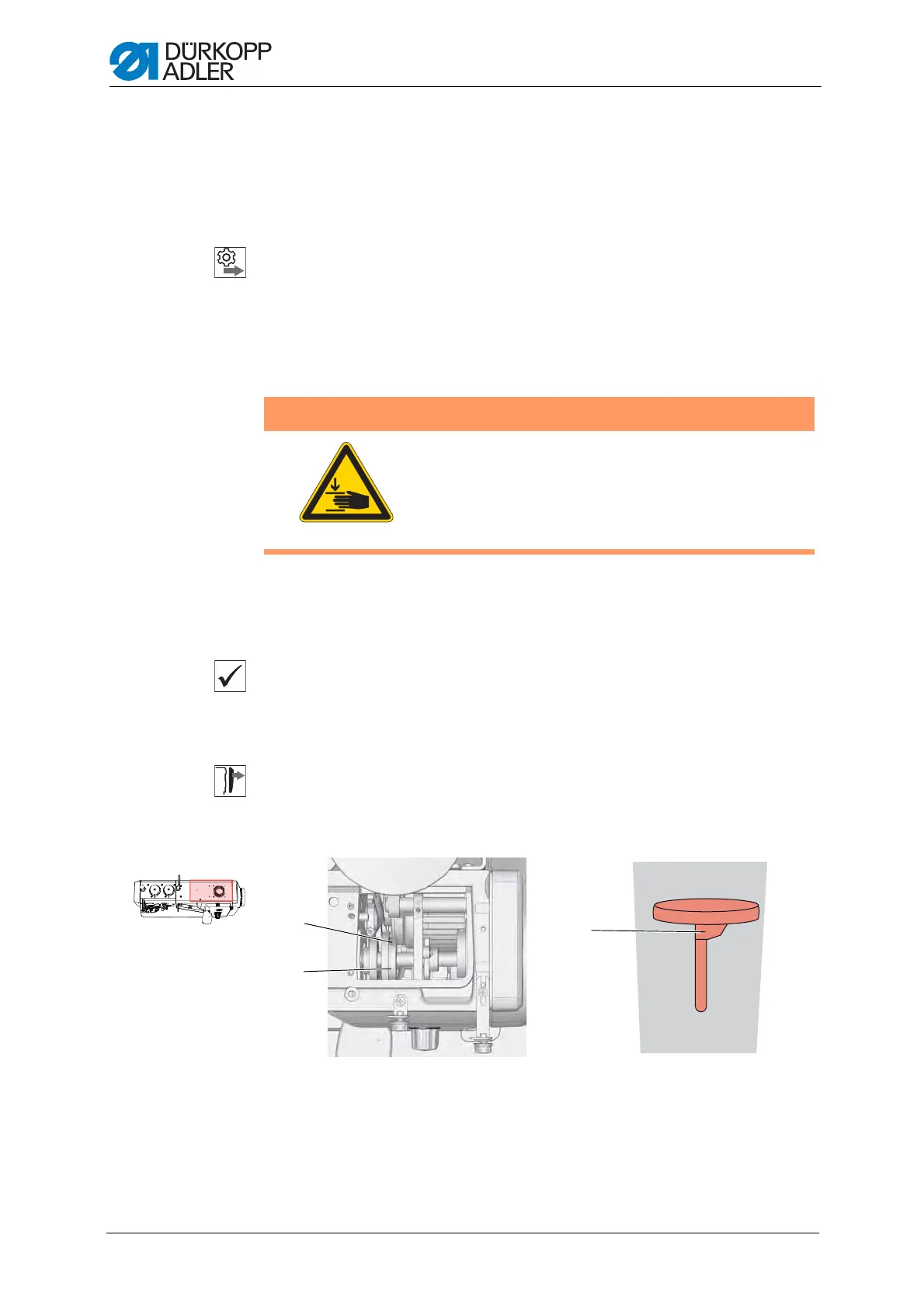

Fig. 29: Setting the feed movement for the feed dog
WARNING
Risk of injury!
Crushing injuries from moving parts.
Switch the sewing machine off before you check
a
nd set the forwards movement of the feed dog.
(1) - Setscrews
(2) - Pusher eccentric
(3) - Stitch adjustment lever
①
②
③
