Aligning the needle bar linkage
Service Instructions 967 - 02.0 - 12/2015
49
9.2 Aligning the needle bar linkage in the sewing direction
Proper setting
When the stitch length is set to 0 and the value set on the handwheel scale
is
90°:
 Th
e needle bar (2) is parallel to the presser foot bar (3).
Cover
• Upper covers ( p. 11).

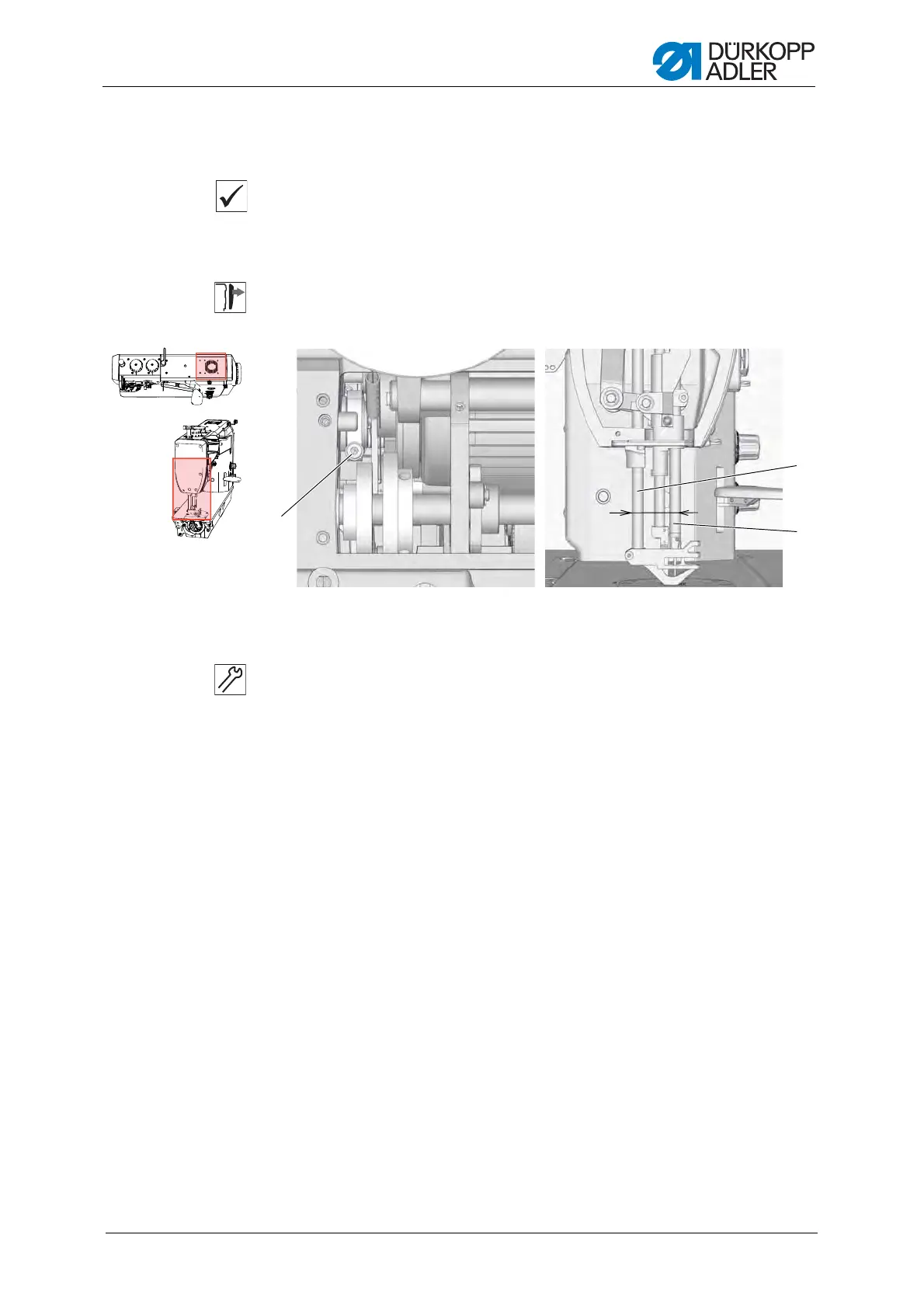

Fig. 33: Aligning the needle bar in the sewing direction
Setting steps
1. Loosen the screw for the upper feed lever (1).
2
. Turn the needle bar (2) until it is parallel to the presser foot bar (3): Set
the distance between the bars to the value L = 44 mm.
3. Tighten the screw (1) and check the axial play ( p. 18).
(1) - Screw for the upper feed lever
(2) - Needle bar
(3) - Presser foot bar
①
②
③
L
