Adjusting the thread cutter
78
Service Instructions 967 - 02.0 - 12/2015
9. Turn the piston (8) until it is just short of the stop
(distance of approx. 0.5 mm).
10.Tighten the screws (9) for the lever (10).
14.3 Adjusting the position of the movable knife
Proper setting
The axis (tip) of the needle (1) is at the left edge of the gully of the movable
knife (2).
If the stop lever (3) is in the park position:
Th
e marking of the movable knife (7) will be covered by the blade of
the fixed knife (8).
Cover
• Throat plate ( p. 15).
• Feed dog ( p. 16).
• Tilt the machine head ( p. 10).

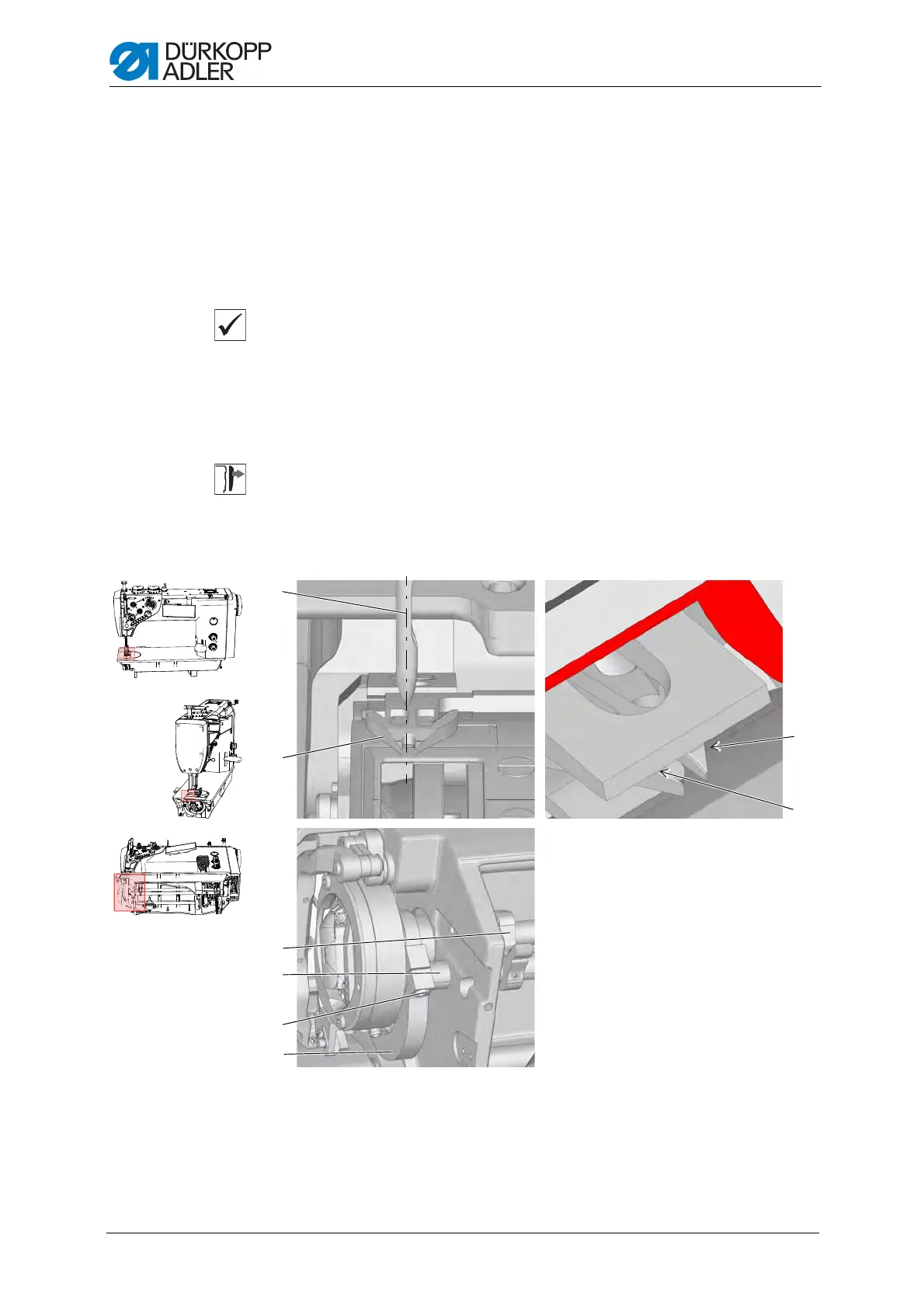

Fig. 54: Adjusting the position of the movable knife
(1) - Needle axis
(2) - Movable knife
(3) - Stop lever
(4) - Shaft
(5) - Screw
(6) - Lever of the knife
(7) - Marking on the knife
(8) - Fixed knife blade
①
②
③
④
⑤
⑥
⑧
⑦
