Working basis
18
Service Instructions 967 - 02.0 - 12/2015
3.5 Axial play for shafts running in plain bearings

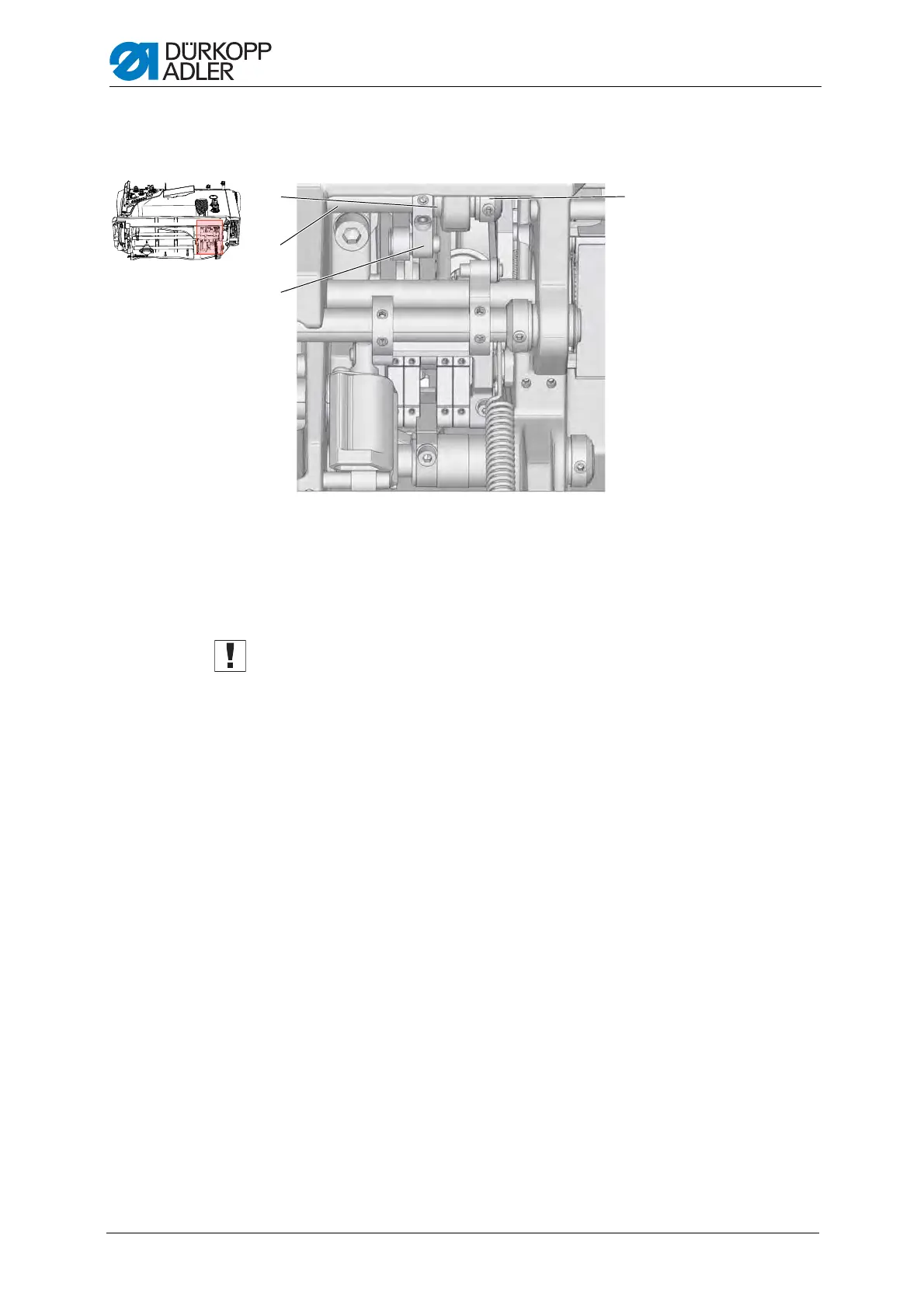

Fig. 11: Axial play for shafts running in plain bearings
Shafts (2) running in plain bearing shells (1) are axially adjusted when the
lever (3) and the adjusting ring (4) touch the front face of the bearing shells
(1).
When adjusting components mounted on shafts running in plain bearings,
always ensure that the axial play of these shafts is as small as possible or
amounts to 0.
(1) - Plain bearing shell
(2) - Shaft
(3) - Lever
(4) - Adjusting ring
①
②
③
④
