3.3.8 Removing and installing the throat plate

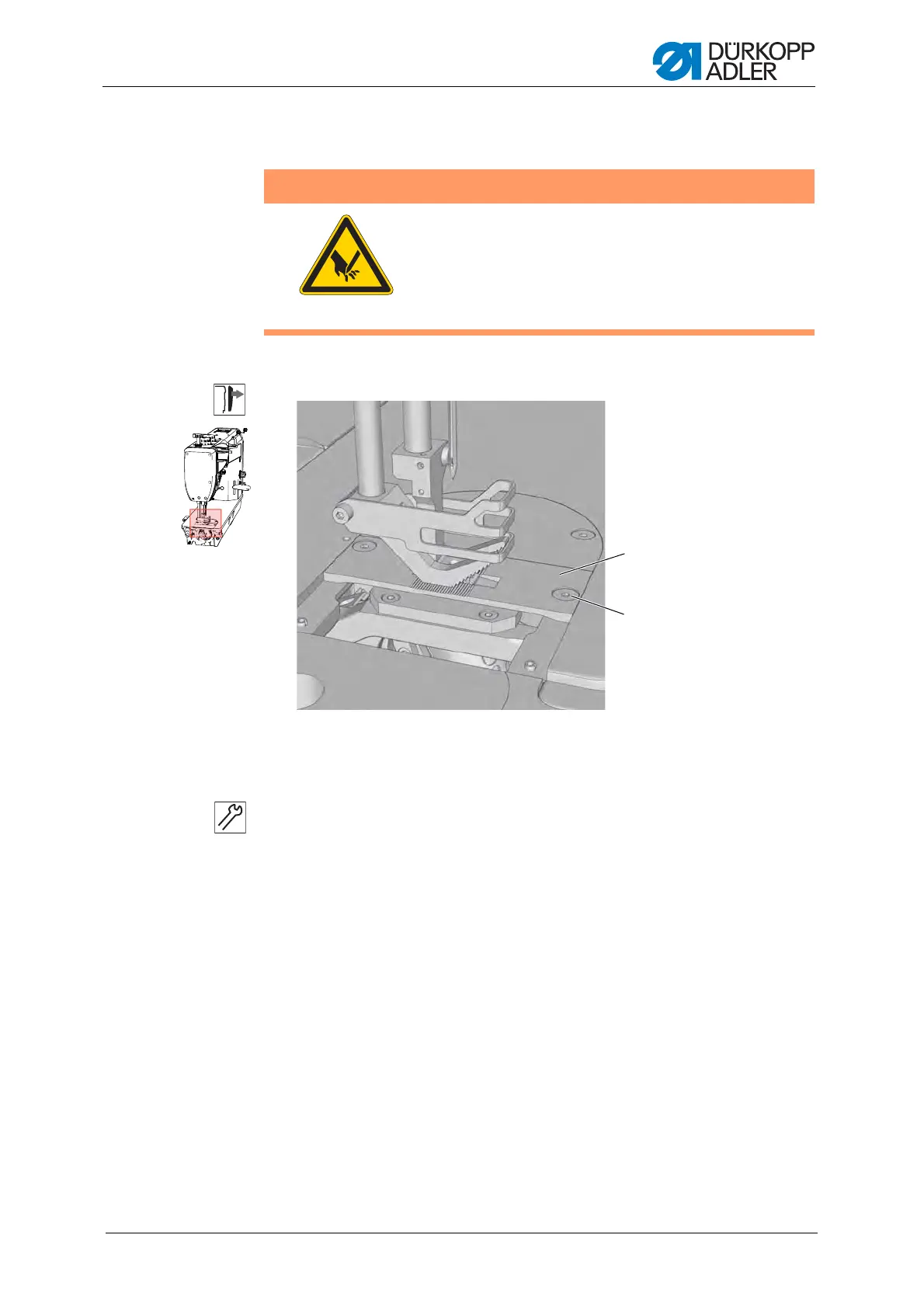

Fig. 8: Removing and installing the throat plate
Removing the throat plate
1. Remove the hook compartment cover ( p. 14)
.
2. Raise the foot using the hand lever.
3. Loosen the screws (2).
4. Remove the throat plate (1).
WARNING
Risk of injury!
Risk of crushing injuries and stab wounds from
sharp
and moving parts.
Switch the machine off before you remove or install
th
e throat plate.
(1) - Throat plate (2) - Screws
①
②
