Working basis
16
Service Instructions 967 - 02.0 - 12/2015
3.3.9 Removing and installing the feed dog

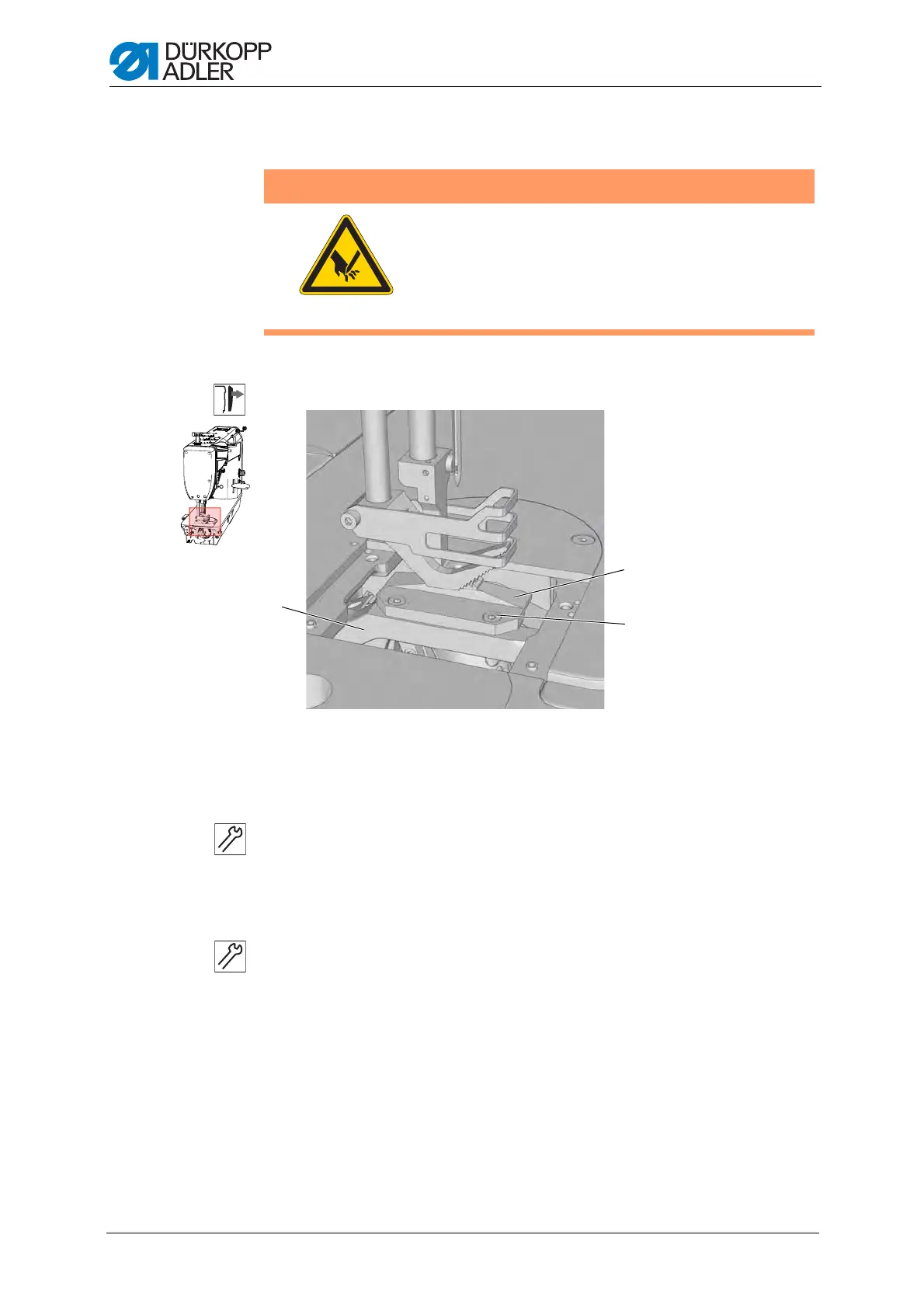

Fig. 9: Removing and installing the feed dog
Removing the feed dog
1. Remove the throat plate ( p.
15).
2. Loosen the screws (2).
3. Take the feed dog (3) off the feed dog carrier (1).
Installing the feed dog
1. Place the feed dog (3) on the feed dog carrier (1) and lightly tighten the
screws (2).
2.
Install the throat plate ( p. 15)
3. Adjust the feed dog (3) such that it has an equal amount of play
on both
sides when inside the throat plate.
4. Tighten the screws (2).
WARNING
Risk of injury!
Risk of crushing injuries and stab wounds from
sharp and moving par
ts.
Switch the machine off before you remove or install
the feed
dog.
(1) - Feed dog carrier
(2) - Screws
(3) - Feed dog
①
②
③
