20.1.2 Adjusting the slide for the needle bars
Proper setting
The position of the slide (1) must be adjusted such that the center of the
pin (4) of the slide (1) is exactly on the peg (3) when the slide is in zero
position (both needles switched on).

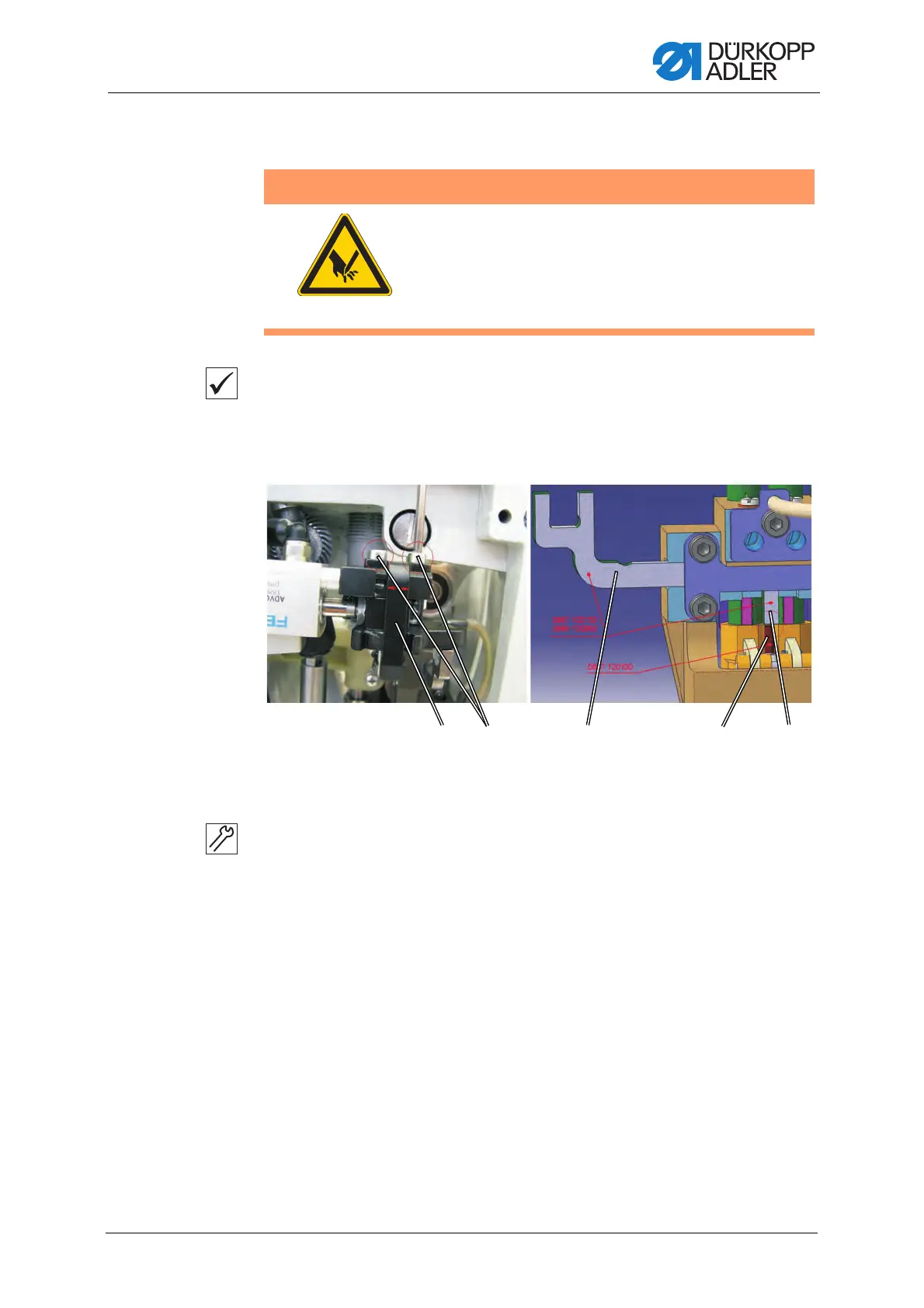

Fig. 87: Adjusting the slide
Setting steps
1. Loosen the screws (2).
2. Adjust slide (1).
3. Tighten the screws (2).
4. Check whether the needle bars switch cleanly.
WARNING
Risk of injury
Risk of crushing injuries and stab wounds from mov-
ing and sharp parts.
Switch off the sewing machine before adjusting the
slide.
(1) - Slide
(2) - Screws
(3) - Peg
(4) - Center of pin
