3.3 Removing the covers
In many types of setting work, you will have to remove the machine covers
first in order to access the components.
Described here is how to remove the individual covers and how to refit
them. Just the cover that needs to be removed is then specified in the text
for that particular type of setting work.
3.3.1 Access to the machine bottom section
In order to access the components at the machine bottom section,
you must first tilt the machine upper section.

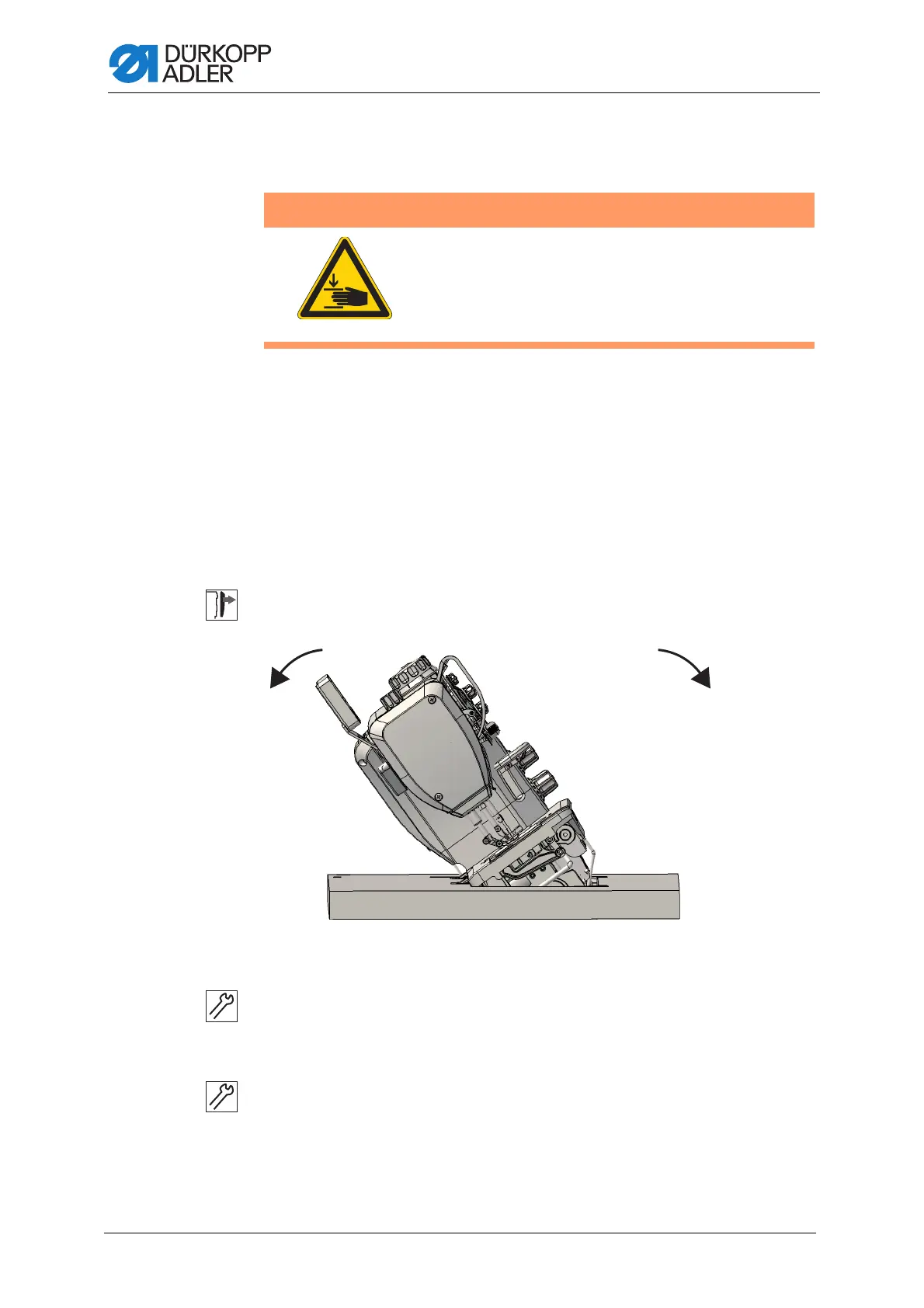

Fig. 1: Tilting and erecting the machine upper section
Tilting the machine upper section
1. Tilt the machine upper section as far as it will go.
Erecting the machine upper section
1. Raise the machine upper section.
WARNING
Risk of injury
Crushing injuries from moving parts.
Switch the sewing machine off before you remove
the covers or refit them
