Working basis
Service Manual 867 Version 02.0 - 04/2015 13
3.3.2 Removing and fitting the arm cover

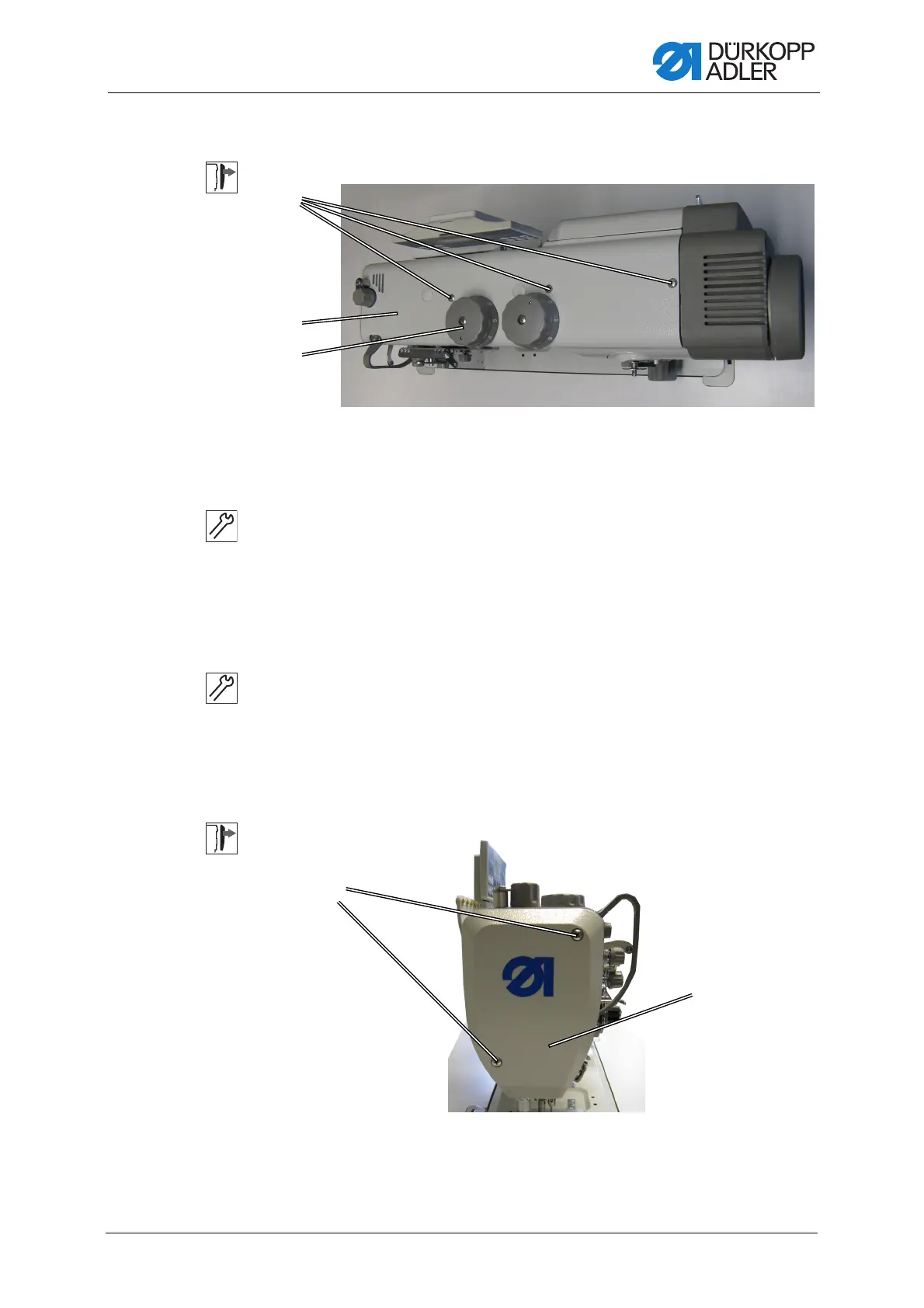

Fig. 2: Removing and fitting the arm cover
Removing the arm cover
1. Position the left adjusting wheel for the sewing foot stroke (2) to 2.
2. Loosen the screws (1).
3. Hold the arm cover (3) at the adjusting wheels and remove it.
Fitting the arm cover
1. Position the left adjusting wheel for the sewing foot stroke (2) to 2.
2. Fit the arm cover (3).
3. Tighten the screws (1).
3.3.3 Removing and fitting the head cover
Fig. 3: Removing and fitting the head cover
(1) - Screws
(2) - Left adjusting wheel for presser foot
stroke
(3) - Arm cover
②
③
①
(1) - Screws (2) - Head cover
②
①
