Winder
Service Manual 867 Version 02.0 - 04/2015 61
14 Winder
14.1 Position of the winder wheel in long arm machines
Long arm
machines
Long arm machines have the winder in the center of the machine arm. The
winder wheel is therefore not aligned on the upper toothed belt wheel in
long arm machines, but rather on the driver wheel in the machine arm.
Proper setting
The distance between the winder wheel and the driver wheel is 0.8 mm.
Cover
• Arm cover ( 3.3.2 Removing and fitting the arm cover, page 13)

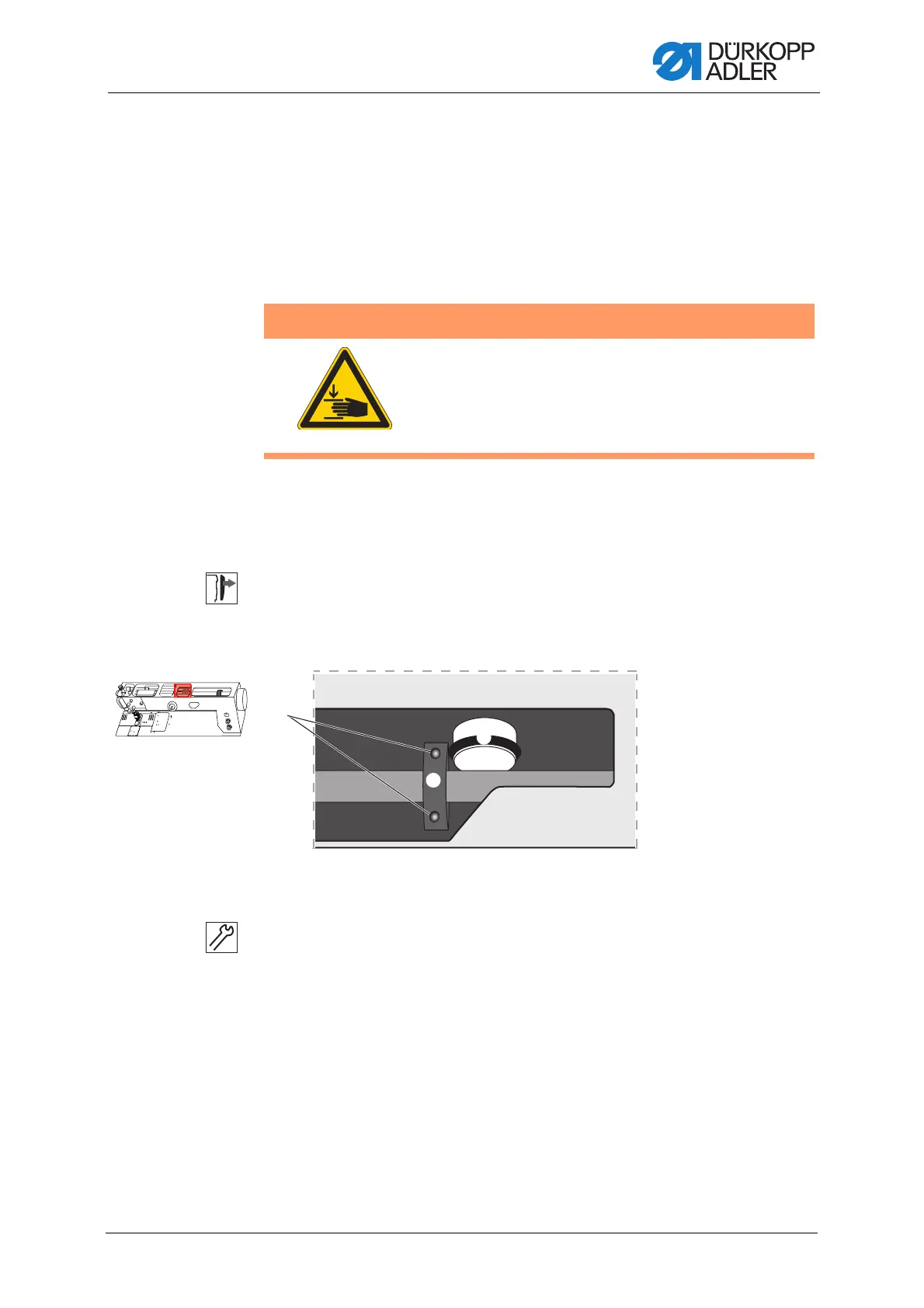

Fig. 48: Setting the distance between the winder wheel and driver wheel
Setting steps
1. Loosen both setscrews (1).
2. Move the driver wheel (2) to the right or left such that distance to the
winder wheel (3) is exactly 0.8 mm.
3. Screw both setscrews (1) firmly in place.
WARNING
Risk of injury
Crushing injuries from moving parts.
Switch off the sewing machine before setting the
position of the winder wheel.
2
1
3
(1) - Setscrews
(2) - Driver wheel
(3) - Winder wheel
