DURKOPP ADLER M-TYPE 867 - Removing and Installing the Feed-Dog

Working basis
16 Service Manual 867 Version 02.0 - 04/2015

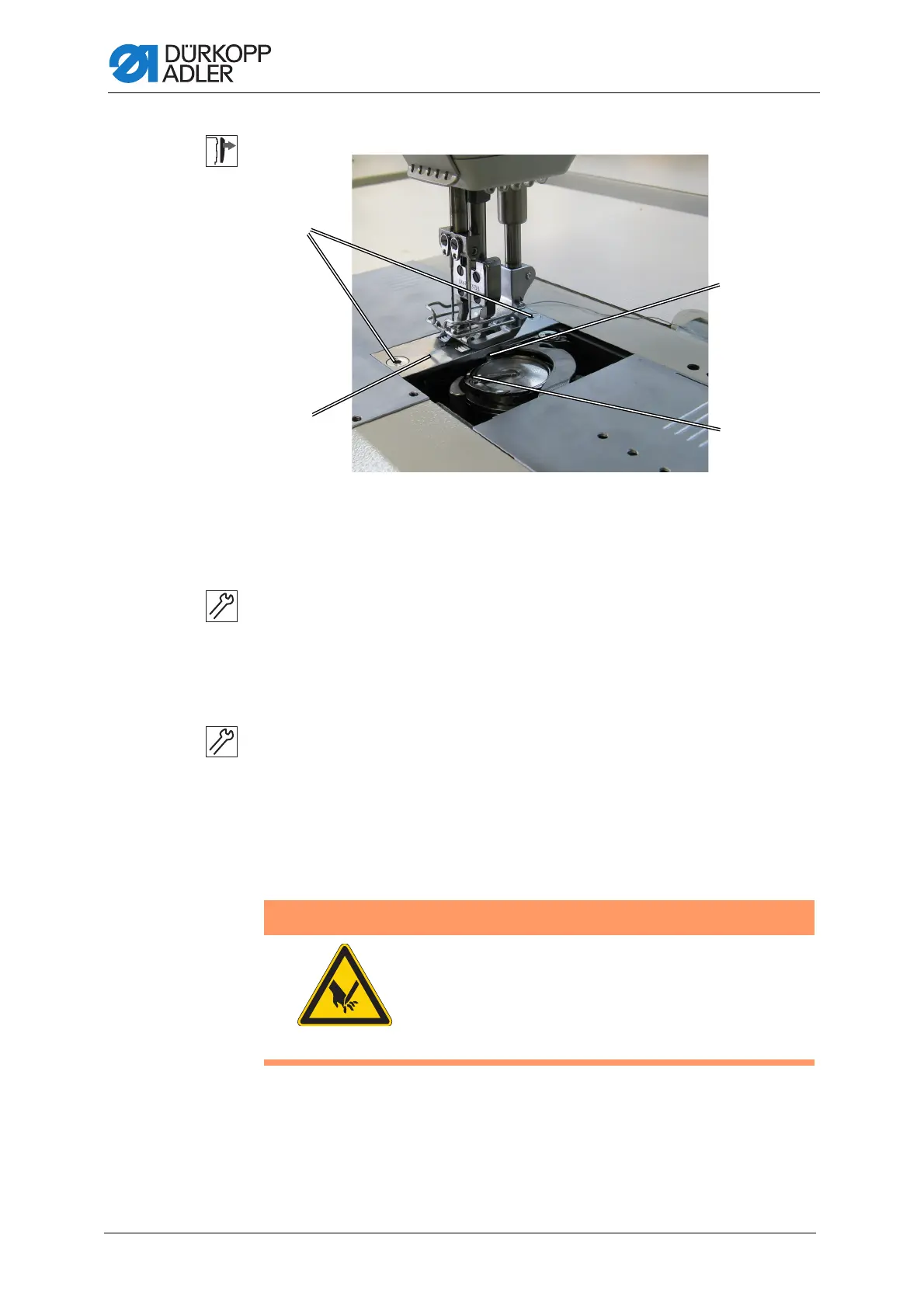

Fig. 6: Removing and installing the throat plate
Removing the throat plate
1. Open the throat plate slide ( page15).
2. Loosen both screws (1).
3. Remove the throat plate (2).
Installing the throat plate
1. Insert the throat plate (2), ensuring that the nose (3) of the bobbin
housing (4) is in the cutout of the throat plate.
2. Tighten both screws (1).
3. Close the throat plate slide ( page15).
3.3.7 Removing and installing the feed-dog
(1) - Screws
(2) - Throat plate
(3) - Nose
(4) - Bobbin housing
④
②
①
③
WARNING
Risk of injury
Risk of crushing injuries and stab wounds from mov-
ing and sharp parts.
Switch the sewing machine off before you remove
or install the feed-dog.
