Working basis
Service Manual 867 Version 02.0 - 04/2015 17

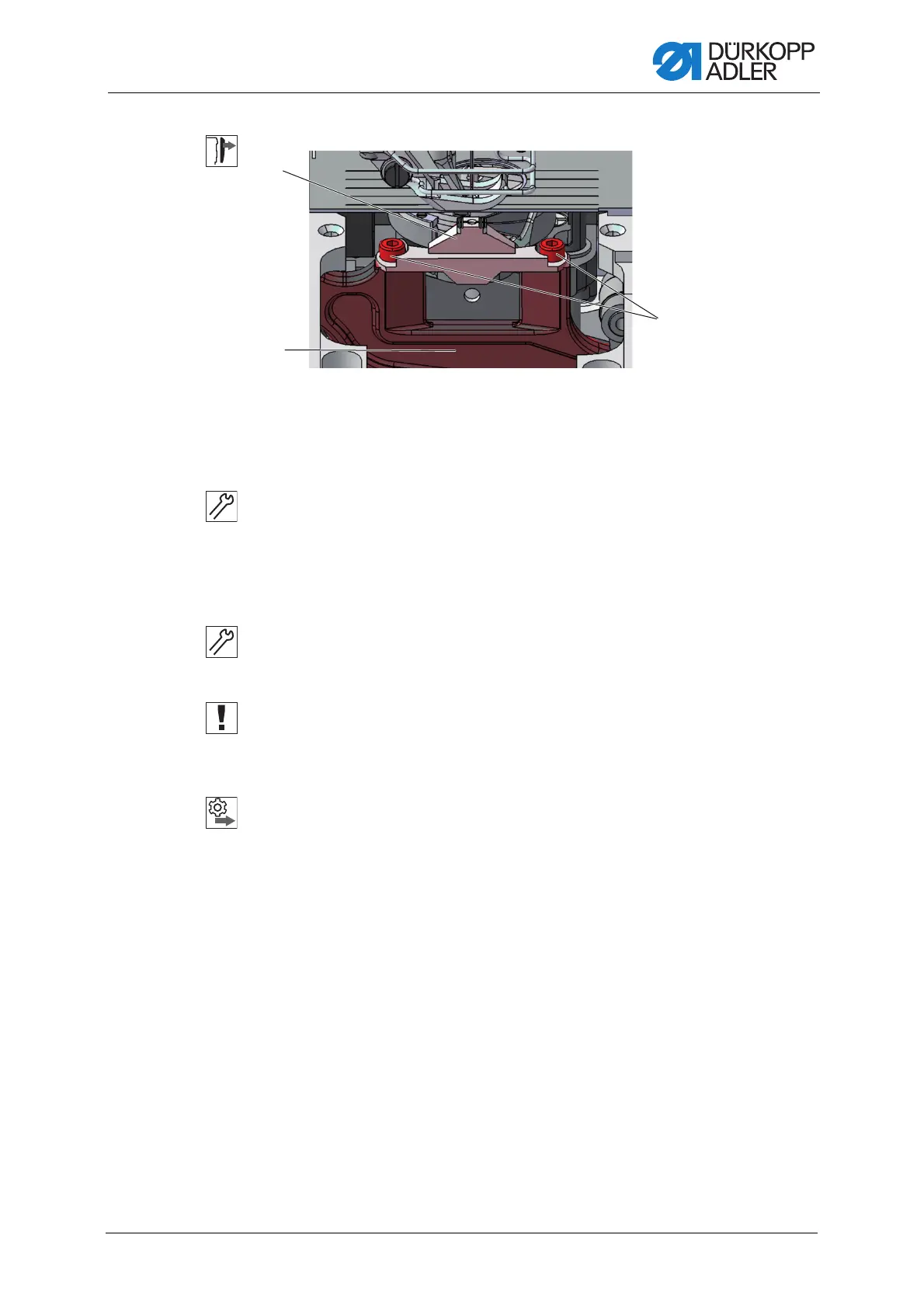

Fig. 7: Removing and installing the feed-dog
Removing the feed-dog
1. Remove the throat plate ( page15).
2. Loosen the screws (3).
3. Take the feed-dog (1) off the feed-dog carrier (2).
Installing the feed-dog
1. Place the feed-dog (1) onto the feed-dog carrier (2).
2. Tighten the screws (3).
3. Insert the throat plate ( page15)
Important: Check the feed-dog position in its movement at maximum
stitch length (depending on the equipment: 6, 9 or 12) by turning the hand-
wheel. The feed-dog must not hit against the throat plate.
Order
Then check the following setting:
Feed-dog ( 8.1.1 Moving the feed-dog, page 35)
(1) - Feed-dog
(2) - Feed-dog carrier
(3) - Screws
2
3
1
