DURKOPP ADLER M-TYPE 867 - Draining the Water Condensation

Maintenance work
Service Manual 867 Version 02.0 - 04/2015 109
21.2.2 Draining the water condensation
Water condensation may accumulate in the water separator of the pres-
sure controller.
Proper setting
Water condensation cannot rise up to the filter element (1).
Check the water level in the water separator on a daily basis.

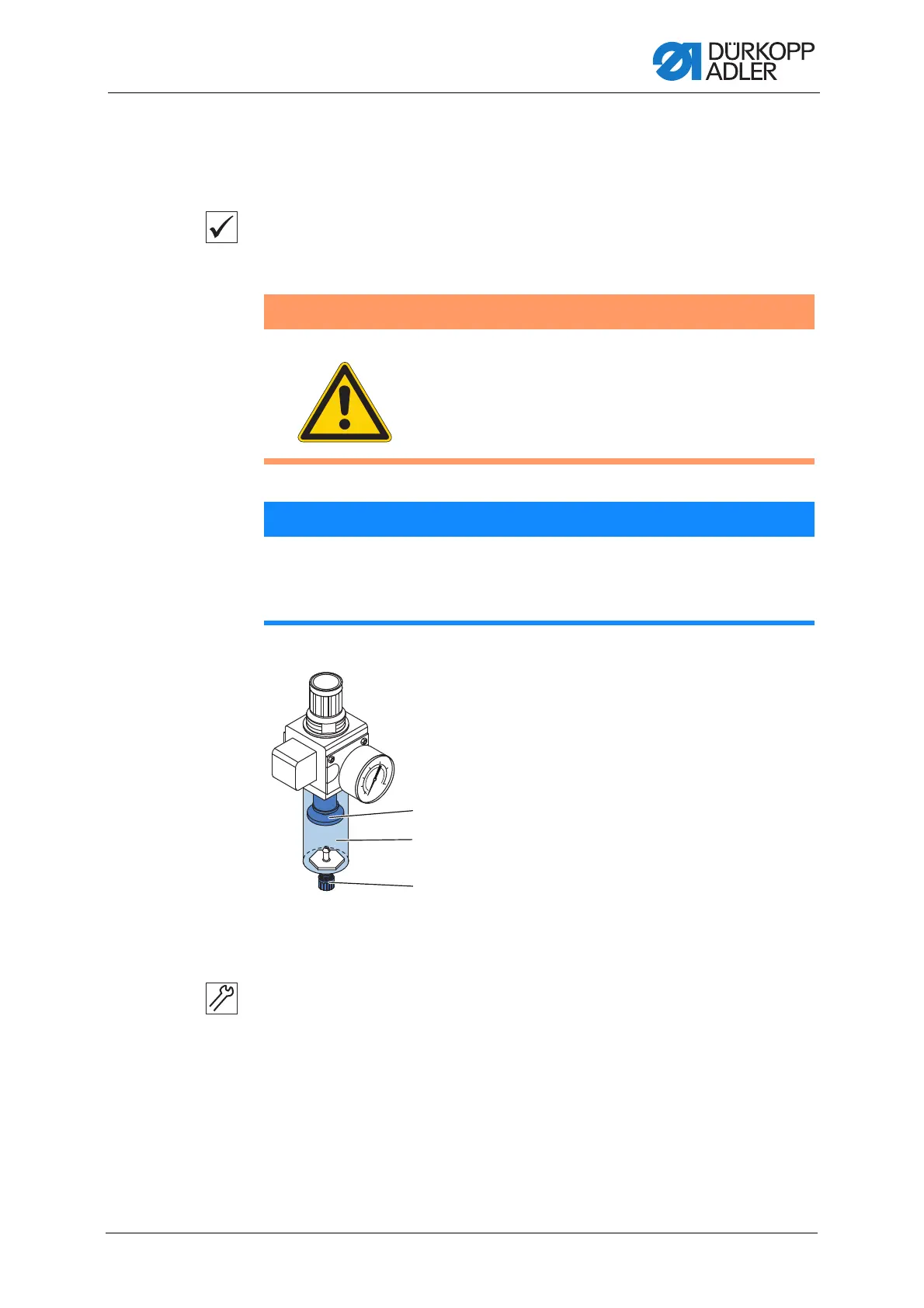

Fig. 96: Draining the water condensation
Maintenance steps
1. Place the collection tray under the drain screw (3).
2. Unscrew the drain screw (3) completely.
3. Allow water to drain into the collection tray.
4. Tighten the drain screw (3).
WARNING
Risk of injury
Switch off the machine at the main power switch
and disconnect it from the pneumatic network
before you drain the water from the water separator.
ATTENTION
Machine damage due to too much water
Too much water can result in damage to the machine.
Check the water level every day and drain water, if necessary.
0
2
8
4
6
10
2
3
1
(1) - Filter element
(2) - Water separator
(3) - Drain screw
