Special machines
102 Service Manual 867 Version 02.0 - 04/2015
3. Tighten the screws (2).
Adjusting the cutter stroke

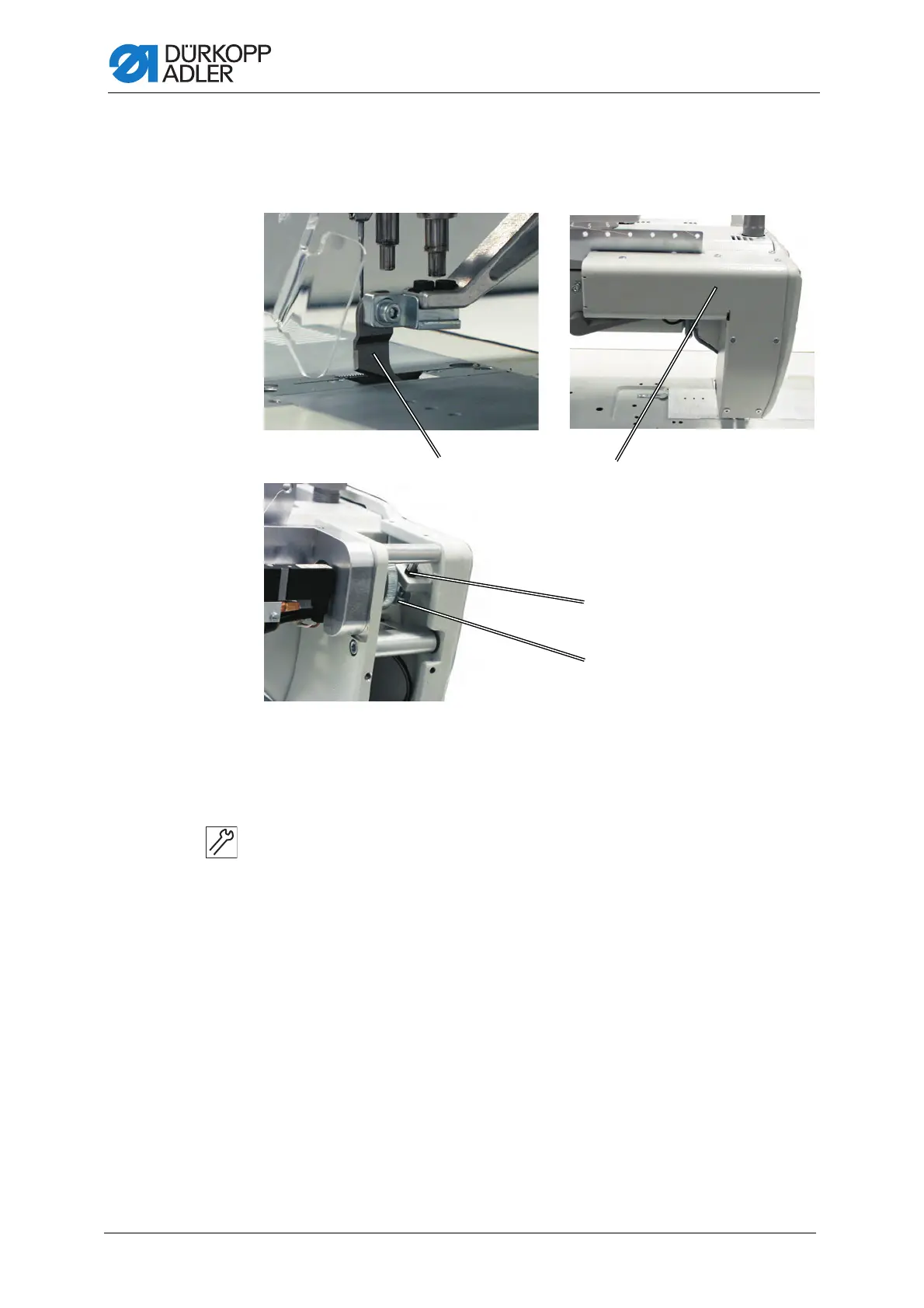

Fig. 90: Adjusting the vertical cutter II
The stroke height of the cutter (1) can be set. This is necessary if the cutter
was reground and is now shorter.
Setting steps
1. Unscrew the cover (2).
2. Release the nut (3).
3. Turn the screw (4):
• Turn screw upwards = stroke higher
• Turn screw downwards = stroke smaller
4. Tighten the nut (3).
5. Correct cutter overlap.
②①
④
③
(1) - Cutter
(2) - Cover
(3) - Nut
(4) - Screw
