Maintenance – Planned maintenance
10-03-2022 4812331840EN 108
Rear axle differential – Check oil level
Do not work under the roller with the engine
running. Park on a level surface.
Wipe clean and remove the level plug (1) and check that the oil
level reaches the lower edge of the opening. Top off with oil to
the right level if the level is low. Use transmission oil according
to the lubricant specification.
Wipe clean and replace the plug.
Rear axle planetary gears – Check oil level
Position the machine so that the plug is at “9 o’clock”.
Wipe clean and remove the level plug (1) and check that the oil
level reaches the lower edge of the plug hole. Replenish the oil
to the right level if the level is low. Use transmission oil. See
lubricant specification.
Wipe clean and replace the plug.
Check the oil level in the same way on the rear axle's
other planetary gear
Rear axle's planetary gears – Oil change – Oil filling
Position the machine so that the planetary gear plug (1) is at “9
o’clock”.
Wipe clean and remove the plug (2).
Fill with oil to the lower edge of the level opening. Use
transmission oil. See lubricant specifications.
Clean and refit the plug (1).
Fill with oil in the same way as for the rear axle's second
planetary gear.

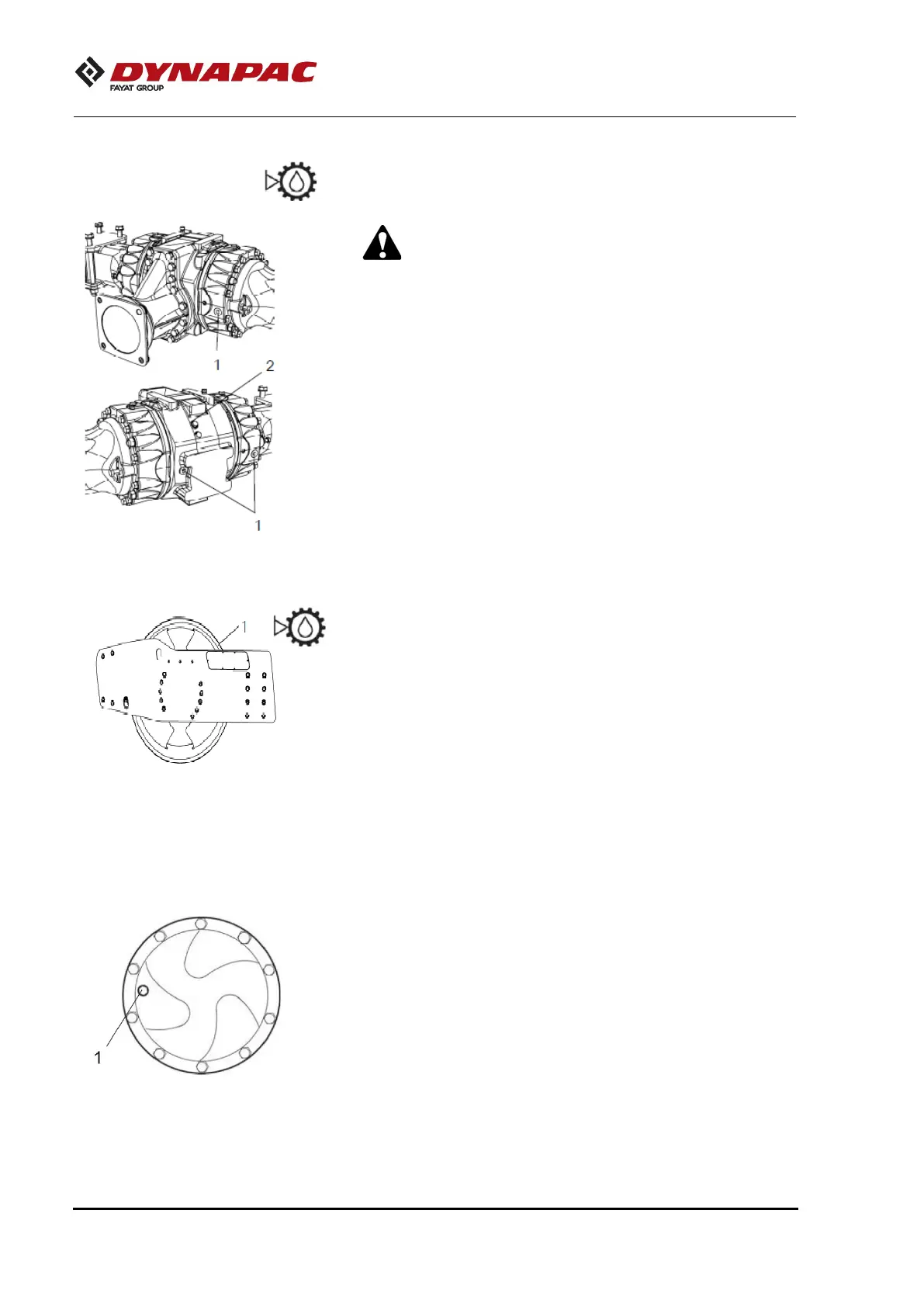

Fig. Level check – planetary gear
2. Refill/level plug
Fig. Level check – planetary gear
3. Level plug
4. Filling plug
Fig. Oil refill – Planetary gear:
3. Refill/level plug.
