4812331840EN
109

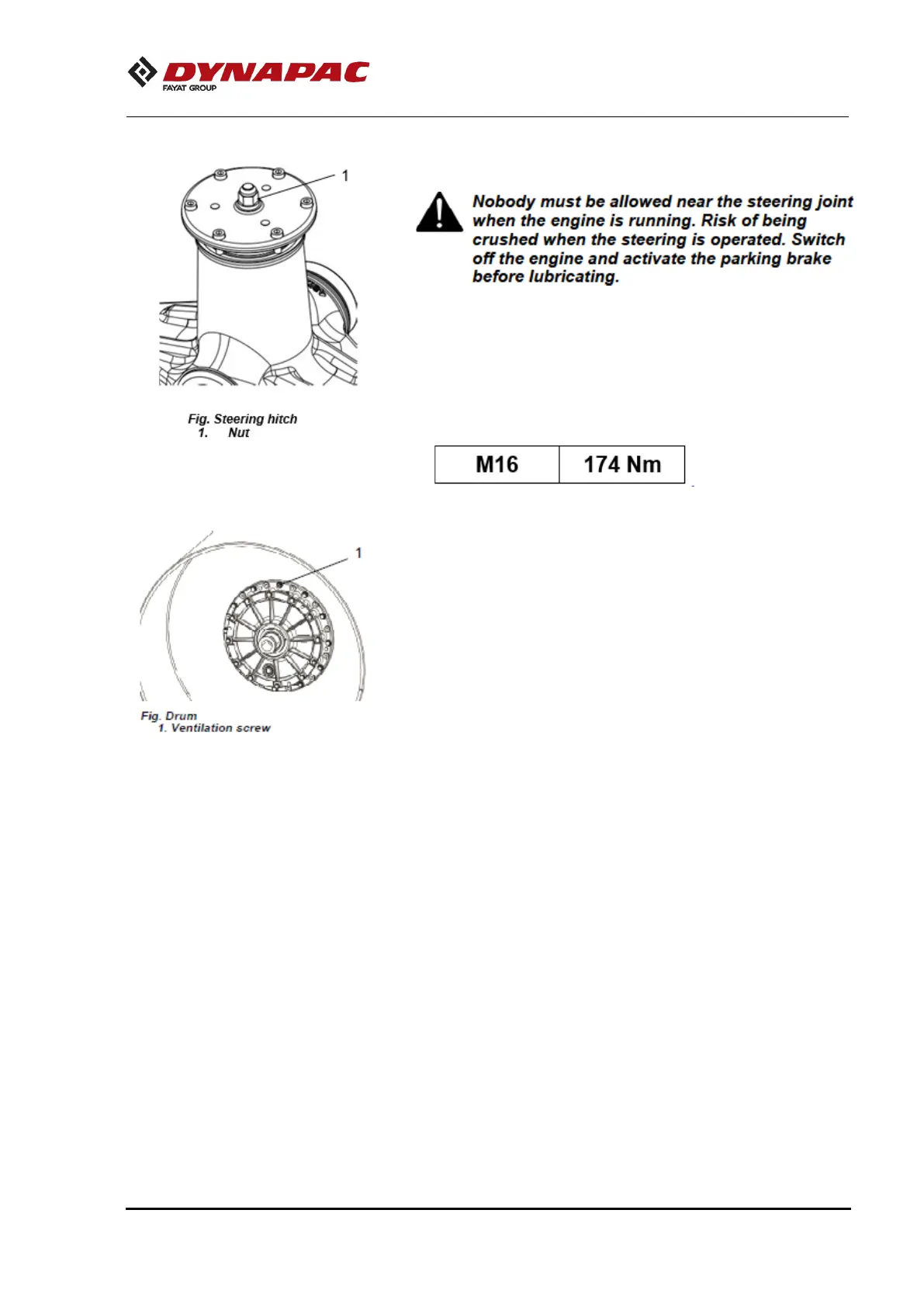

Steering hitch
–
Tightening
The easiest way to identify if you
have this type of
steering hitch is that it has a new
t
ype of nut (1)
at
the top as shown.
Actual torque (Nm) should be when
the machines
position is straight ahead
Drum cartridge
-
Cl
eaning t
he vent
ilation screw
Clean the drum's
ventilation hole and ventilation s
c
rew
(1).
The hole
is required to
elimin
ate exc
ess pr
essure
inside the drum.
108
110
