Weight: refer to the hoisting plate on the
roller
1

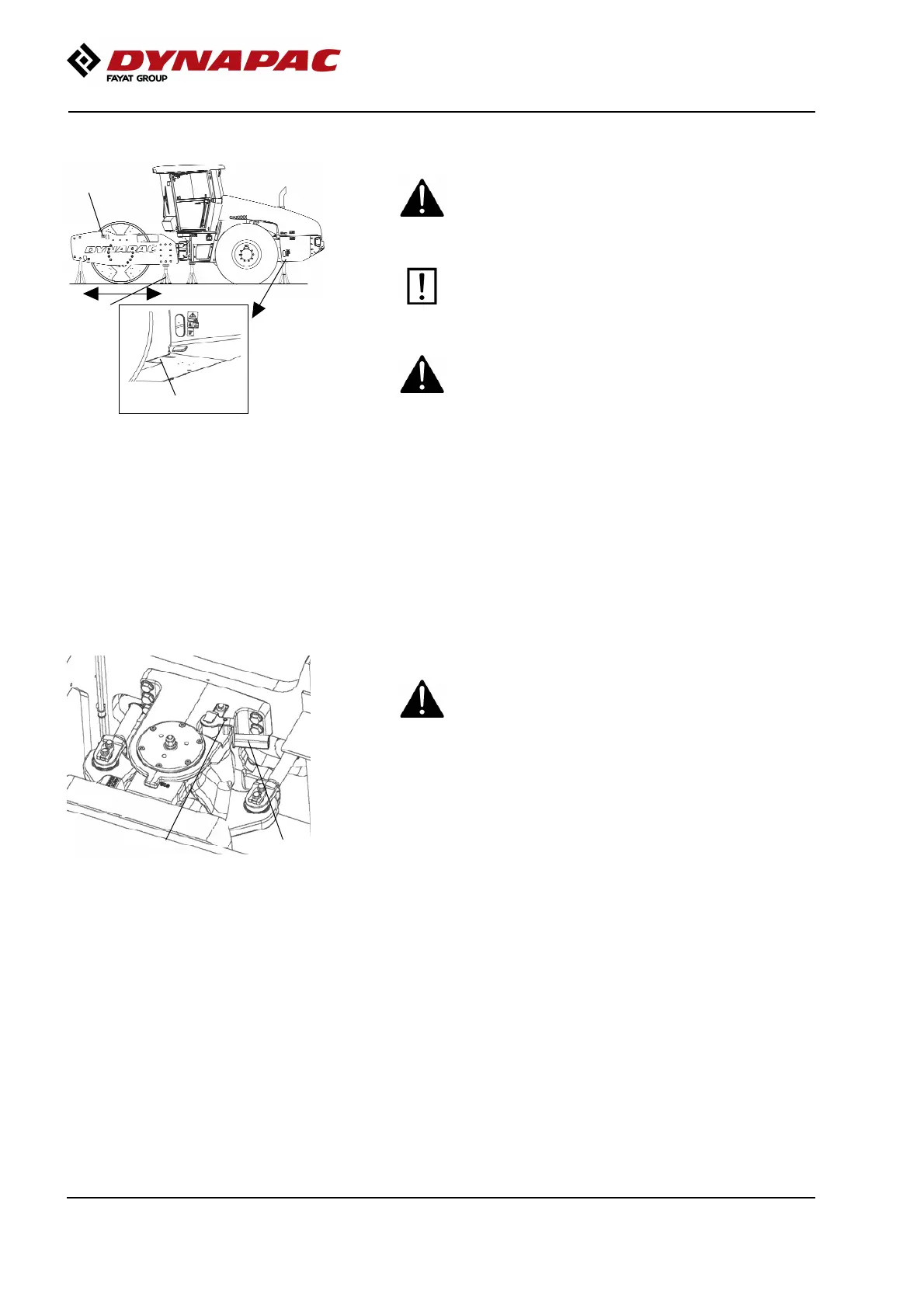

Figure. Roller lifted with jack
1. Lifting plate
2. Jack
3. Marking
2
3
Lifting the roller with jack:
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The lifting device such as a jack (2), or
equivalent, must be dimensioned according to the
safety regulations for lifting devices.
The lifting device such as a jack (2), or
equivalent, must be dimensioned according to the
safety regulations for lifting devices.
Do not go under a lifted load! Make sure that the
lifting device is secure in its position, and on a
level and stable suface.
Do not go under a lifted load! Make sure that the
lifting device is secure in its position, and on a
level and stable suface.
You are recommended to lift the machine with a jack
or similar positioned at the marking (3) and/or at
alternative locations as illustrated. Lifting at any other
place can result in damage to the machine or personal
injury.
Regarding the drum frame, axle stands can be placed
along the entire side plates and cross members if
necessary.
Unlocking the articulation
1
2
Fig. Steering joint lock, open
1. Lock handle
2. Locking dowel
Remember to restore the steering joint lock on the
steering joint to open before operating.
Remember to restore the steering joint lock on the
steering joint to open before operating.
Lift lock in the handle while turning it counterclockwise.
Make sure lock gets in position on the dowel by trying
to turn the handle clockwise or counterclockwise
without lifting the lock.
Towing/Recovering
The roller can be moved up to 300 meters (330 yards)
using the instructions below.
