Maintenance, 10h
4812165301.pdf2022-09-02
Maintenance, 10h
Every 10 hours of operation (Daily)
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors.
Risk of carbon monoxide poisoning.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors.
Risk of carbon monoxide poisoning.
Scrapers - Check, adjustment
It is important to consider movement of the drum
when the machine turns, i.e., the scrapers can be
damaged or wear of the drum may increase if
adjustment is made closer than the values stated.
It is important to consider movement of the drum
when the machine turns, i.e., the scrapers can be
damaged or wear of the drum may increase if
adjustment is made closer than the values stated.

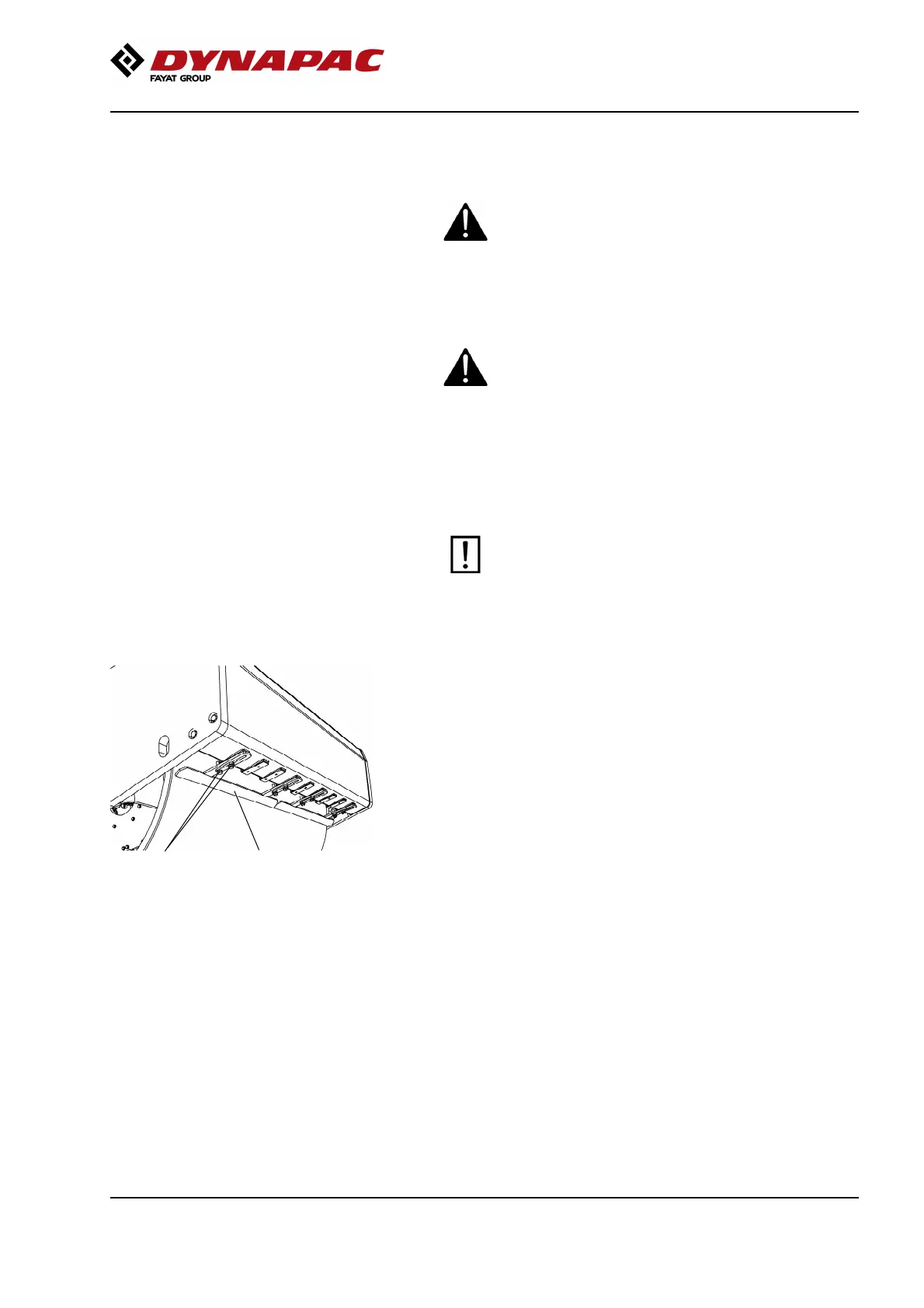

Fig. Scrapers
1. Scraper blade (x 4)
2. Screws
1
2
If necessary, adjust distance to the drum as follows:
Loosen the screws (2) on the scraper attachment.
Then adjust the scraper blade (1) to 25 mm (1 in) from
the drum.
Tighten the screws (2).
Repeat the procedure for the other scraper blades (x4).
