Maintenance, first 50h
4812165301.pdf 2022-09-02

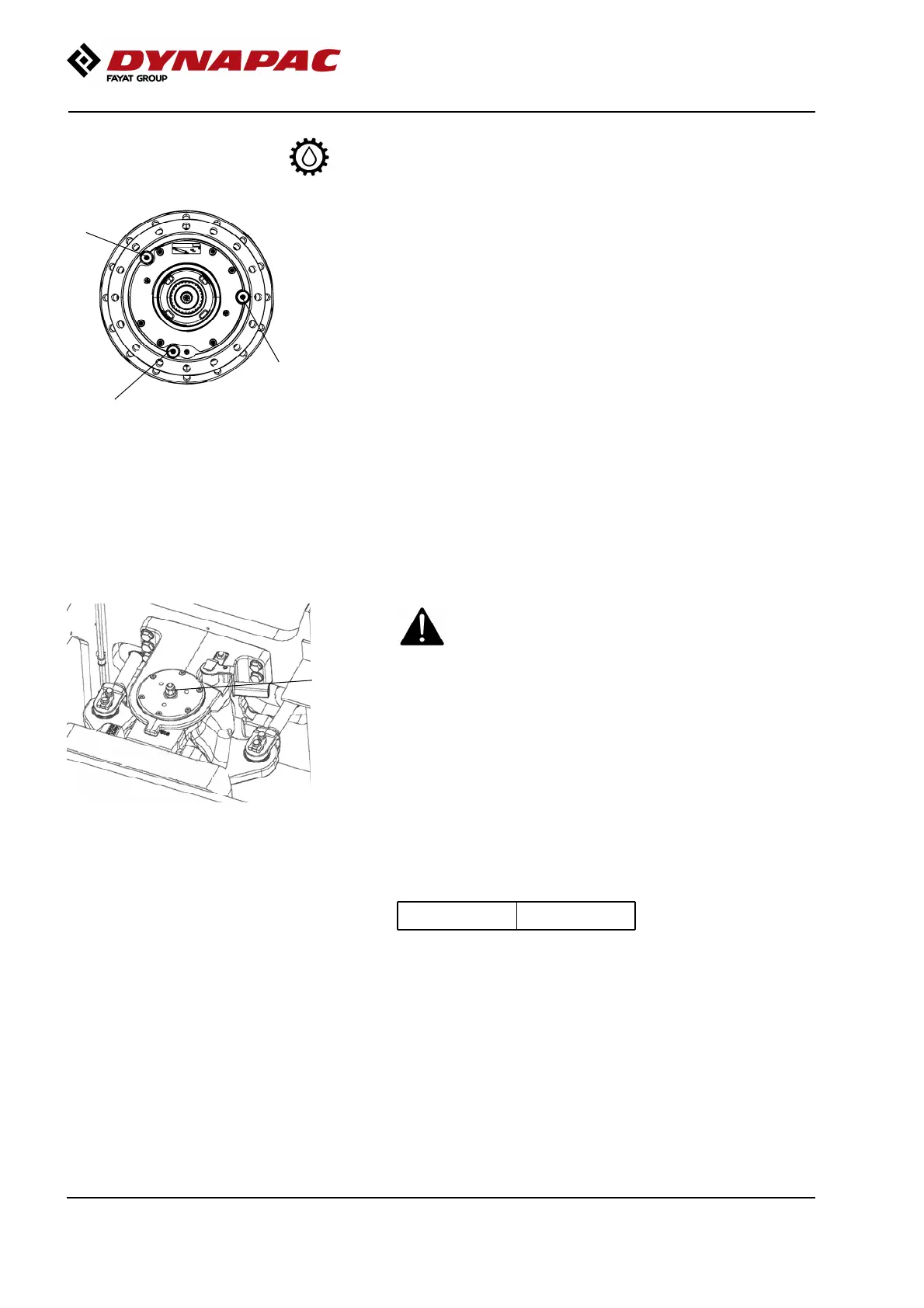

Drum gearbox - Oil change
Fig. Drum gearbox
1. Drain plug
2. Filler plug
3. Level plug
1
2
3
Wipe clean, unscrew the plugs (1, 2 and 3) and drain
the oil into a suitable receptacle, capacity about 5.0
liters (5,3 qts.).
Refit the drain plug (1) and fill with oil up to the level
plug (3), according to "Drum gearbox - Checking the
oil level".
Use transmission oil according to the lubricant
specification.
Clean and refit the level plug (3) and filler plug (2).
Steering hitch - Tightening
Fig. Steering hitch
1. Nut
1
Nobody must be allowed near the steering joint
when the engine is running. Risk of being
crushed when the steering is operated. Switch
off the engine and activate the parking brake
before lubricating.
Nobody must be allowed near the steering joint
when the engine is running. Risk of being
crushed when the steering is operated. Switch
off the engine and activate the parking brake
before lubricating.
The easiest way to identify if you have this type of
steering hitch is that it has a new type of nut (1) at the
top, as shown.
Actual torque (Nm) should be when the machine's
position is straight ahead.
M14 174 NmM14 174 Nm
122
