Maintenance measures - 250 h
4812165301.pdf2022-09-02
Rear axle planetary gears - Check oil level

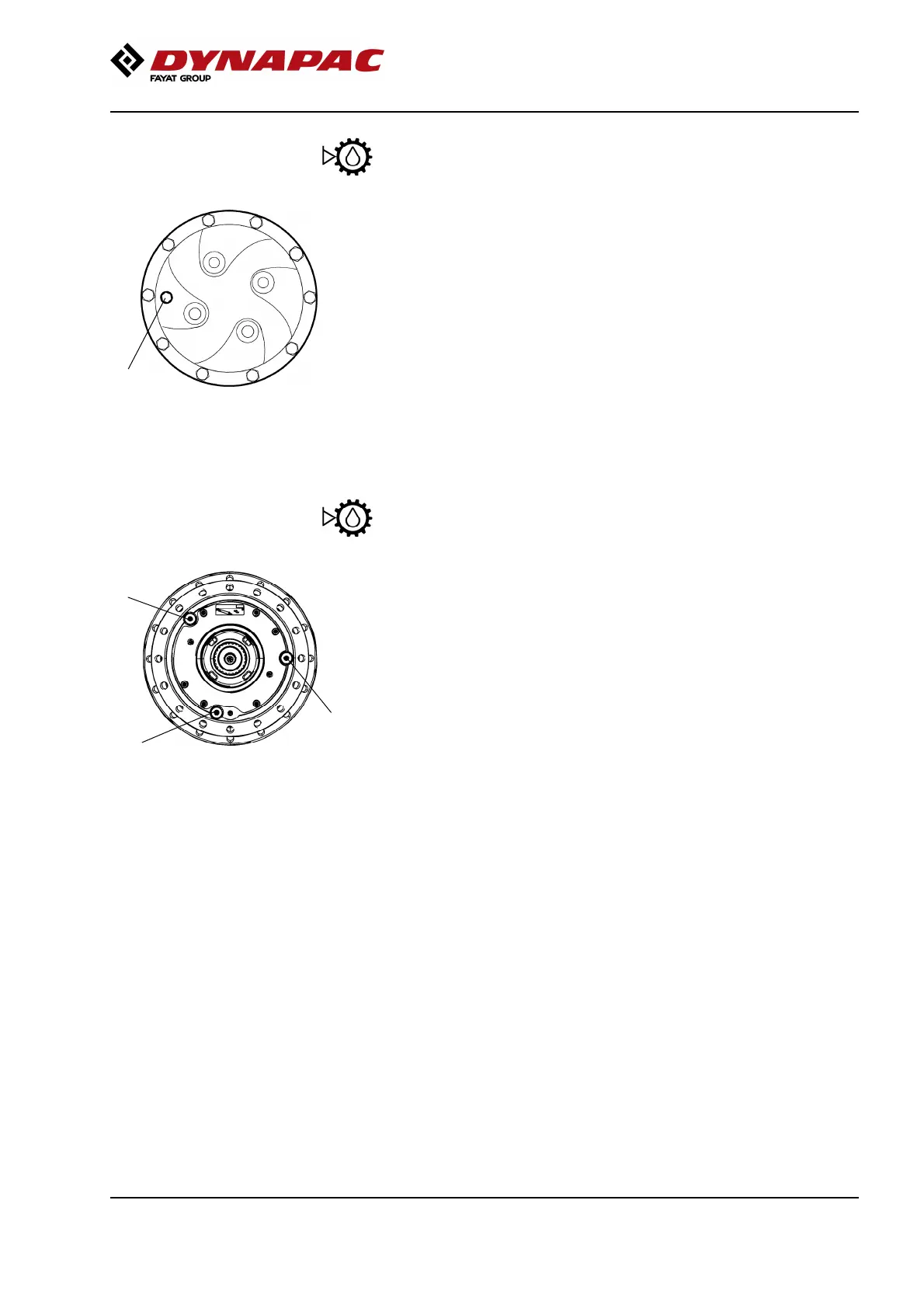

Fig. Level check - planetary gear
1. Level/Filler plug
1
Position the roller so that the level plug (1) in the
planetary gear is at "9 o'clock" or "3 o'clock".
Wipe clean and remove the level plug (1) and check
that the oil level reaches the lower edge of the plug
hole. Top off with oil to the right level if the level is low.
Use transmission oil. See lubrication specification.
Clean and refit the plug.
Check the fluid level in the same way on the rear
axle's other planetary gear.
Drum gearbox - Checking the oil level
Fig. Oil level check - drum gearbox
1. Level plug
2. Filler plug
3. Drain plug
1
2
3
Wipe clean the area around the level plug (1) and then
undo the plug.
Ensure that the oil level reaches up to the lower edge
of the plug hole.
Top off with oil to the right level if the level is low. Use
transmission oil according to the lubricant specification.
Clean and refit the plugs.
