Maintenance measures - 500 h
4812165301.pdf2022-09-02
Maintenance measures - 500 h
Every 500/1500..... hours of operation (every six
months)
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors.
Risk of carbon monoxide poisoning.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors.
Risk of carbon monoxide poisoning.

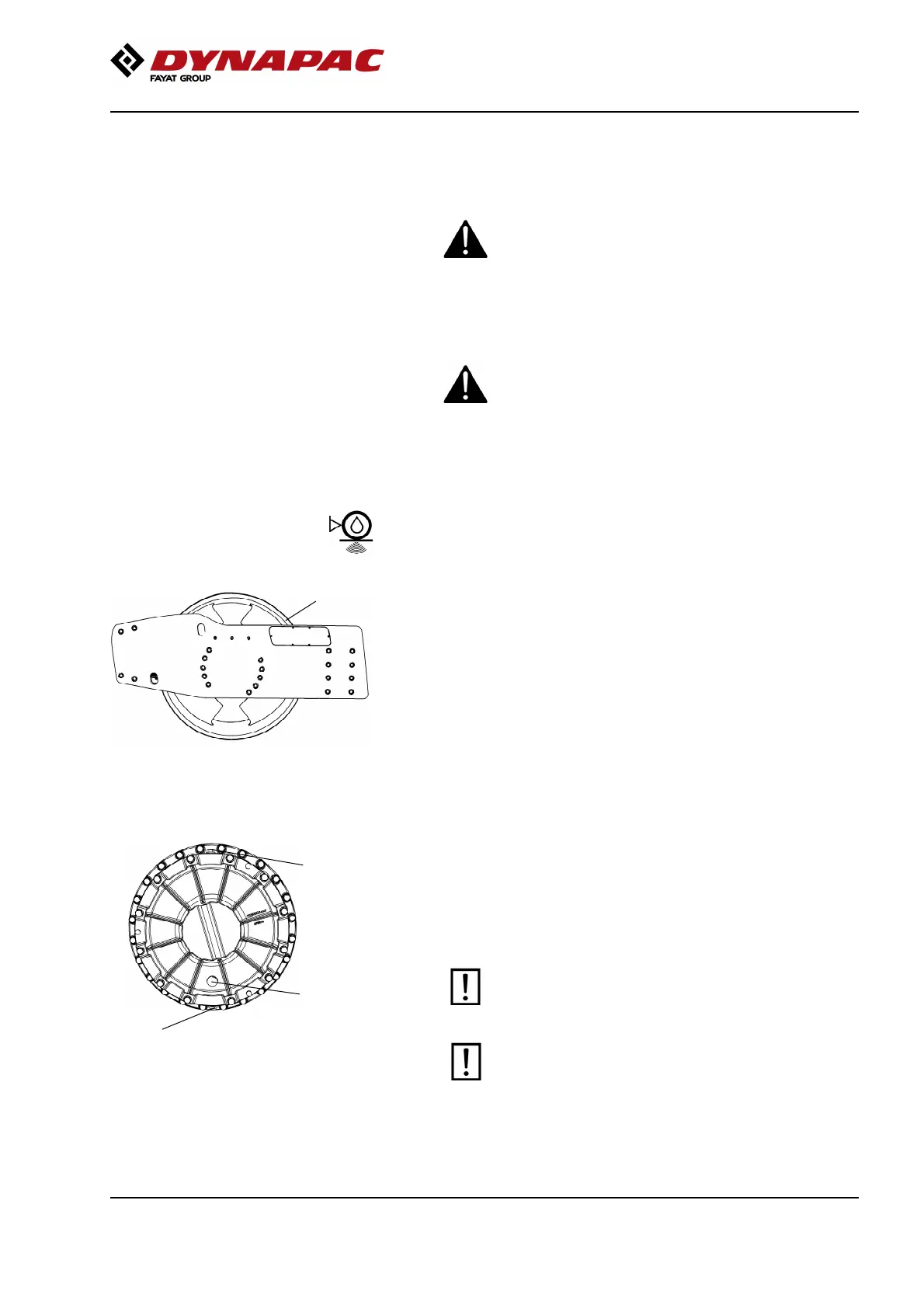

Drum cartridge - Checking the oil level
Fig. Left drum side
1. Groove
1
Position the roller on a flat surface with the groove (1)
on the inside of the drum aligned with the top of the
drum frame.
Fig. Left drum side
1. Filler plug
2. Drain plug
3. Sight glass
1
2
3
The oil should now come up to the sight glass (3).
If necessary, release the filler plug (1) and fill to half
the sight glass (3).
Clean the magnetic filler plug (1) of any metallic
residue, before refitting the plug.
Ensure that only Dynapac Drum Oil 1000 is used
in the cartridges.
Ensure that only Dynapac Drum Oil 1000 is used
in the cartridges.
Do not overfill with oil - risk for overheating.Do not overfill with oil - risk for overheating.
Now repeat the procedure on the opposite side of the
drum.
