Technical specifications
4812165301.pdf2022-09-02

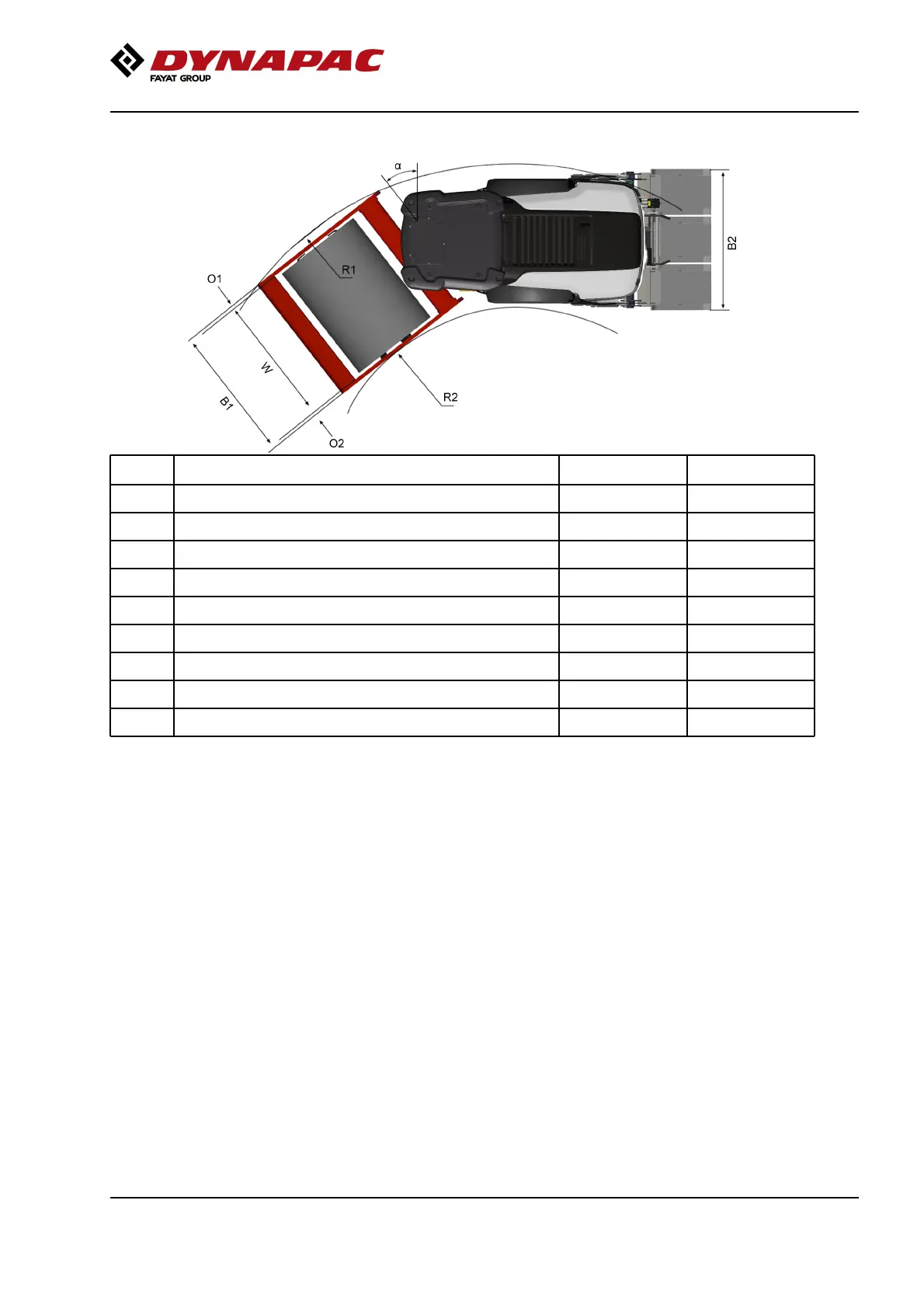

Dimensions, top view
Dimensions mm inDimensions mm in
B1 Width, front 2304 91B1 Width, front 2304 91
B2 Width, compaction plates 2120 83.5B2 Width, compaction plates 2120 83.5
Wheel width 2134 84Wheel width 2134 84
O1 Overhang, left frame side 107 4.2O1 Overhang, left frame side 107 4.2
O2 Overhang, right frame side 107 4.2O2 Overhang, right frame side 107 4.2
R1 Turn radius, external 5450 215R1 Turn radius, external 5450 215
R2 Turning radius, inner 3380 133R2 Turning radius, inner 3380 133
W Width, drum 2130 84W Width, drum 2130 84
α Steering angle ± 38°α Steering angle ± 38°
