Maintenance measures - 250 h
4812165301.pdf 2022-09-02
Radiator - Check/Cleaning

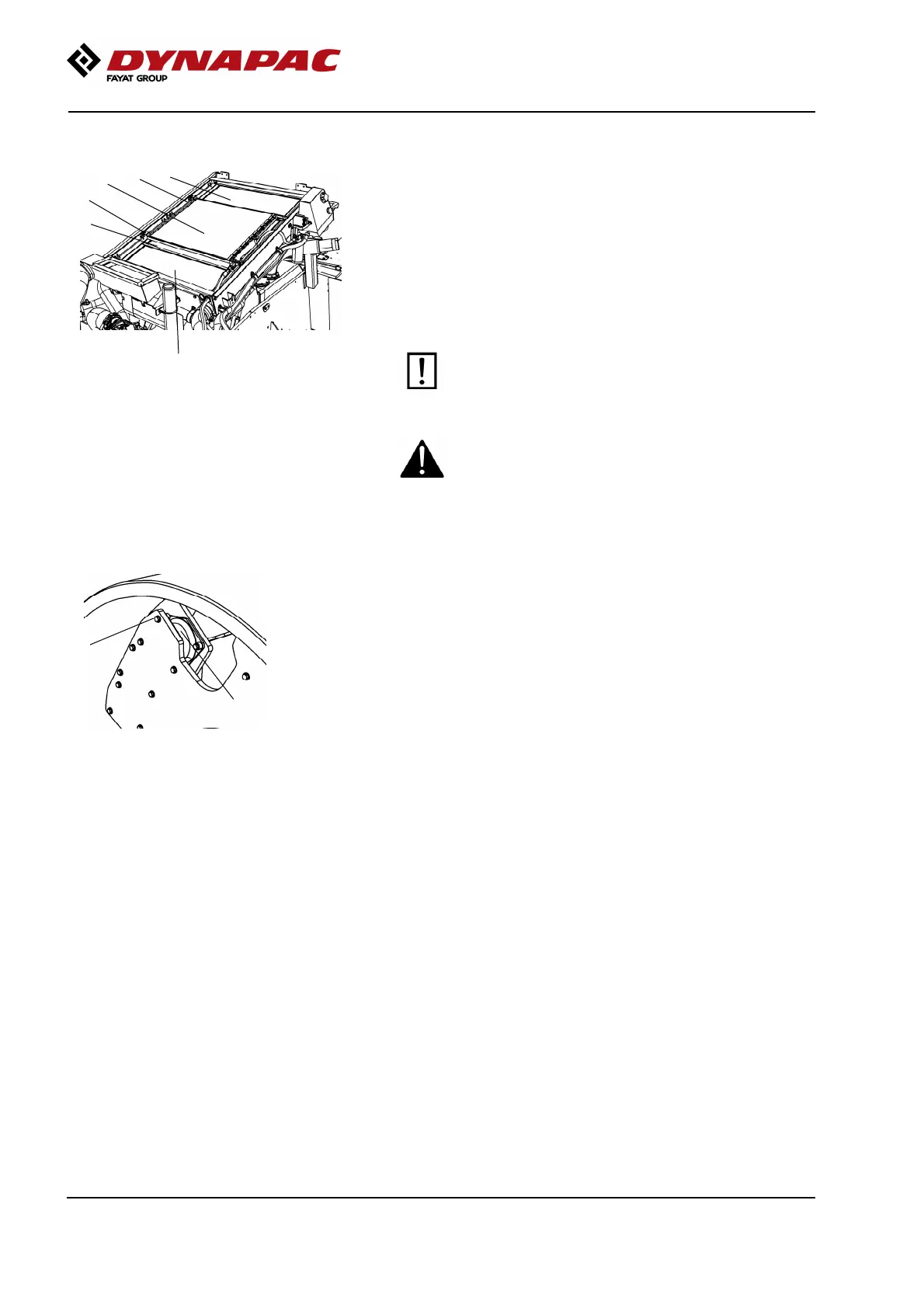

Fig. Engine compartment
1. Water cooler
2. Charge air cooler
3. Hydraulic fluid cooler
4. Condenser element AC (Optional)
5. Screws (x 2)
1
2
3
4
5
5
Check that air can pass unobstructed through the
radiators (1), (2) and (3).
Clean a dirty radiator using compressed air or a
high-pressure water jet.
Undo the two screws (5) and tilt the condenser
element upwards.
Blow air or direct water through the cooler in the
opposite direction to that of the cooling air.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Be careful when using a high-pressure washer -
do not place the nozzle too close to the radiator.
Wear protective goggles when working with
compressed air or high-pressure water jets.
Wear protective goggles when working with
compressed air or high-pressure water jets.
Rubber elements and fastening screws - Check
Fig. Drum, drive side
1. Rubber element
2. Attachment screws
1
2
Check all rubber elements (1).
Replace all of the elements if more than 25% of them
on one side of the drum are cracked deeper than
10-15 mm (0.4-0.6 in).
Check using a knife blade or pointed object.
Check also that the screw fasteners (2) are tightened.
